BUMPER DEVICE AND MOTOR VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 14, 2015
filing date -
Oct 14, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

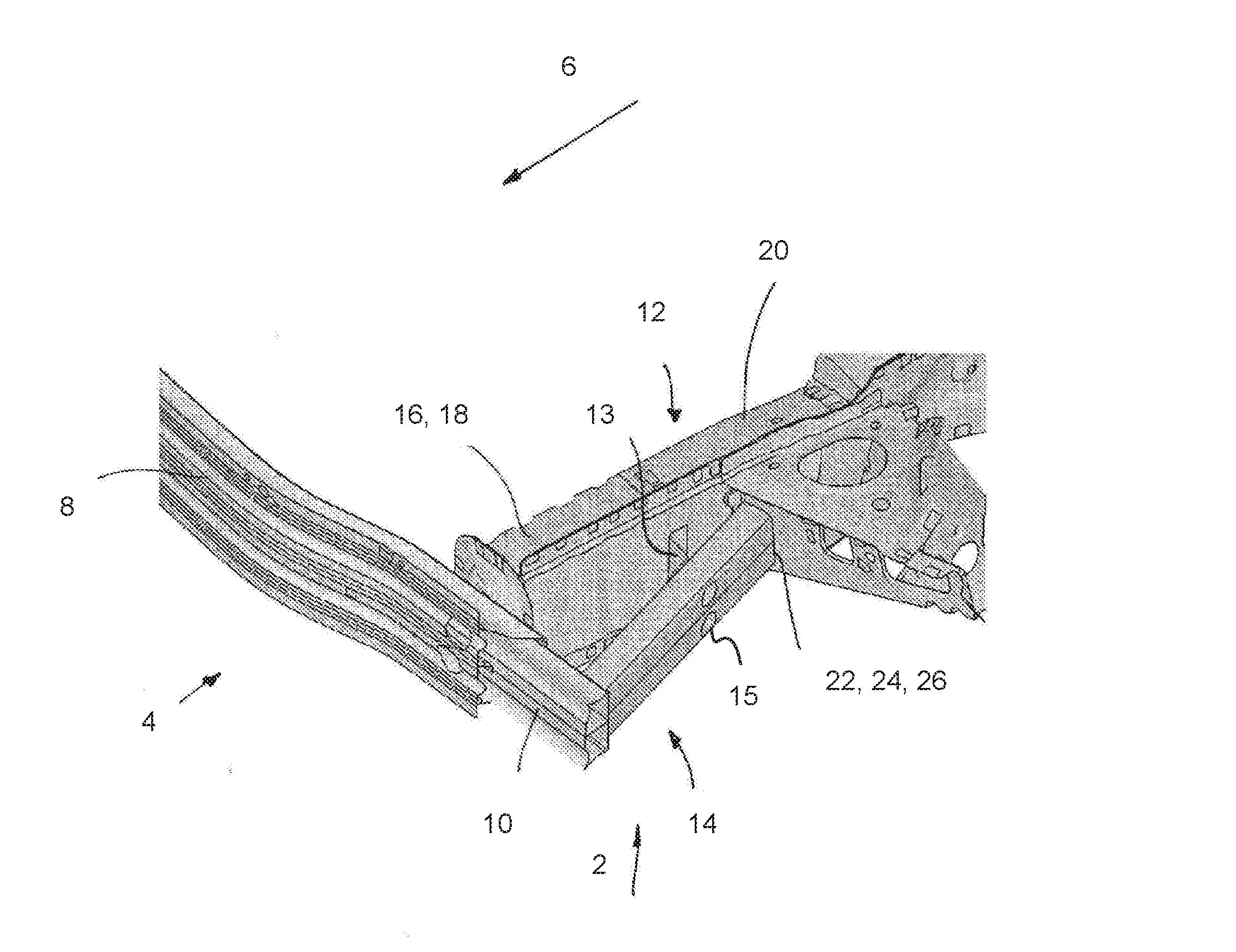

A bumper device for a motor vehicle is described. A cross member assembly includes a cross member running transverse to a traveling direction and a side element extending from an end of the cross member. A side member assembly has a first end configured to be fixed to a vehicle structure and a second end fixed to the cross member. A support member extends from the side member assembly towards an end of the side element opposite the cross member. The support member is configured to absorb and transfer an oblique load acting on the side element to the side member assembly, and to defect without substantial resistance to the longitudinal load acting on the cross member in the traveling direction.
