THREE-DIMENSIONAL INSPECTION OF OPTICAL COMMUNICATION LINKS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 13, 2017
app pub date -
Oct 13, 2015
filing date -
Oct 13, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

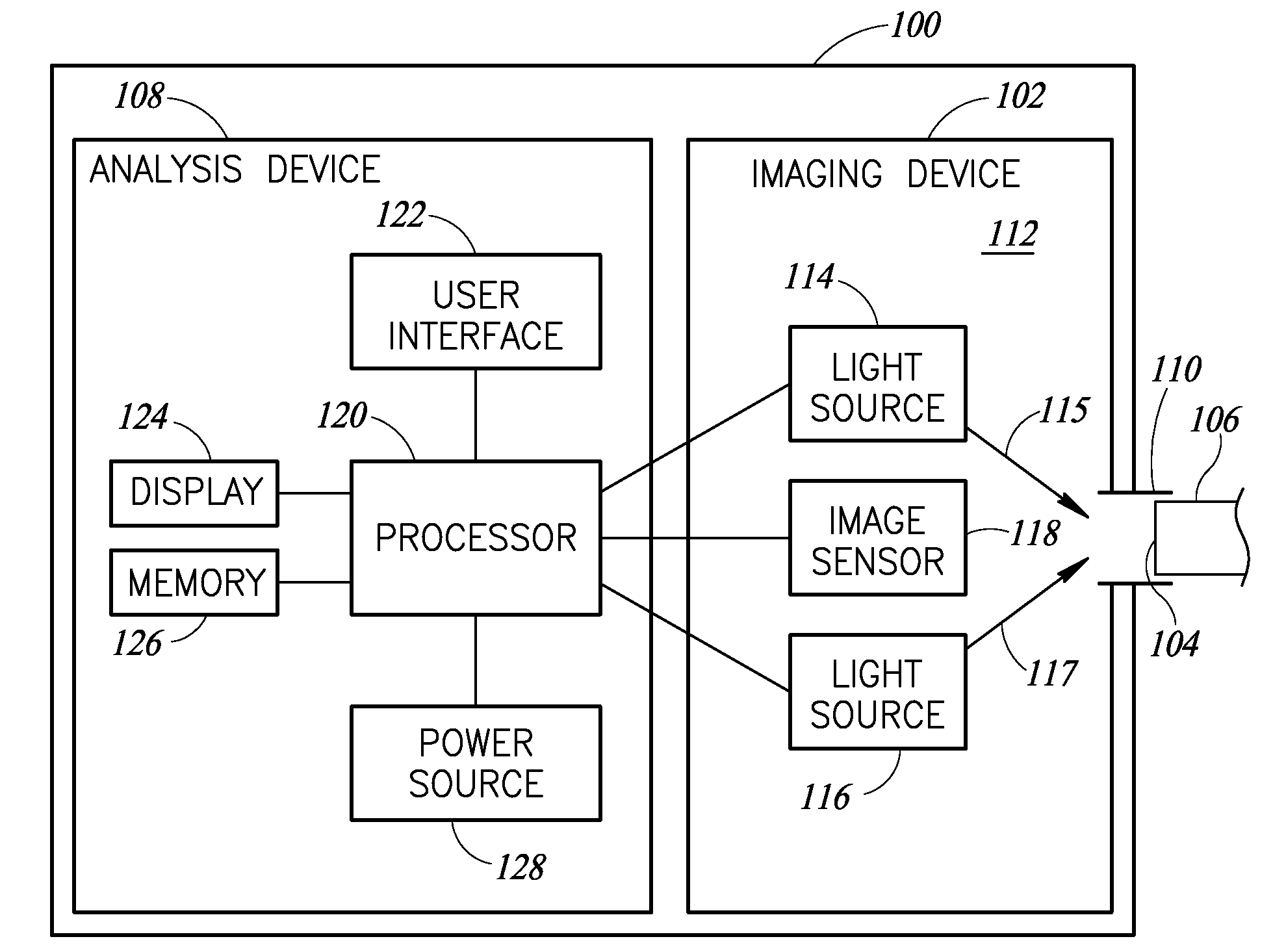

One or more embodiments are directed to camera probes and methods for visually inspecting an endface of an optical communication link, such as a fiber optic cable. Generally described, the camera probes and methods are directed to projecting light to an endface of the optical communication link from a first direction and at a first angle of incidence and projecting light to the endface at a second direction and at a second angle of incidence. A defect on the endface casts a first shadow when the light is projected in the first direction and a second shadow when the light is projected in the second direction. At least one of the first and second shadows is analyzed to determine its length. Using the length of the shadow and the known angle of incidence at which the light is projected, a height or depth of the defect is determined.
