Ebullient cooling device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Apr 13, 2017
app pub date -
May 26, 2015
filing date -
Jun 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

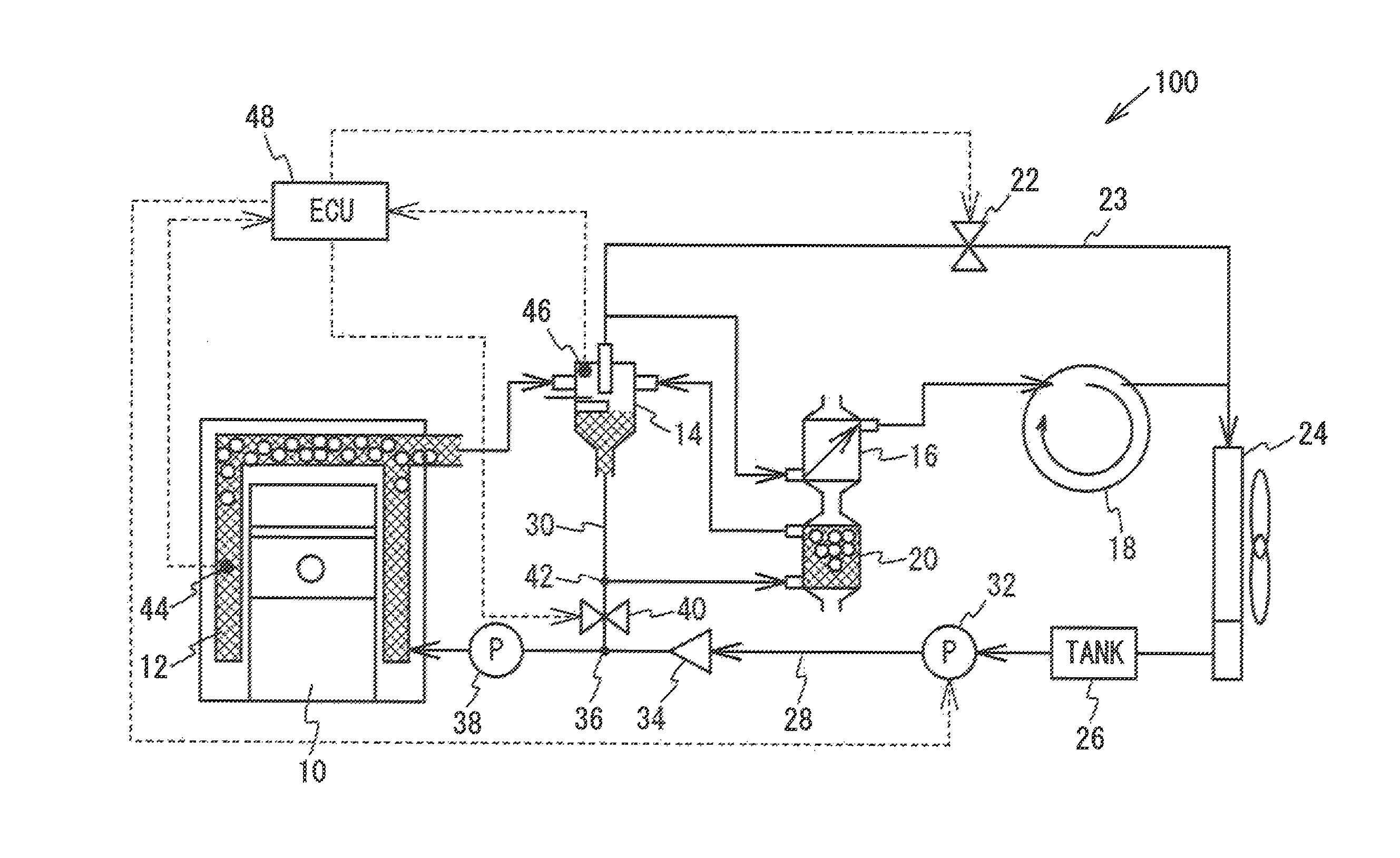

An ebullient cooling device includes: an internal combustion engine cooled by boiling a coolant flowing through a coolant passage formed within the internal combustion engine; a gas-liquid separator that separates a coolant discharged from the internal combustion engine into a liquid-phase coolant and a gas-phase coolant; a condenser that is disposed on a downstream side of the expander, and cools the gas-phase coolant having passed through the expander so as to be changed into a liquid-phase coolant; a first passage that supplies the liquid-phase coolant from the condenser to the coolant passage formed within the internal combustion engine; a second passage that is branched from the first passage, and is connected to the gas-liquid separator; and a control valve that controls a supply state of a liquid-phase coolant supplied to the gas-liquid separator from the condenser through the second passage.
