THREE-DIMENSIONAL PRINTING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 13, 2017
app pub date -
Oct 22, 2015
filing date -
Oct 13, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

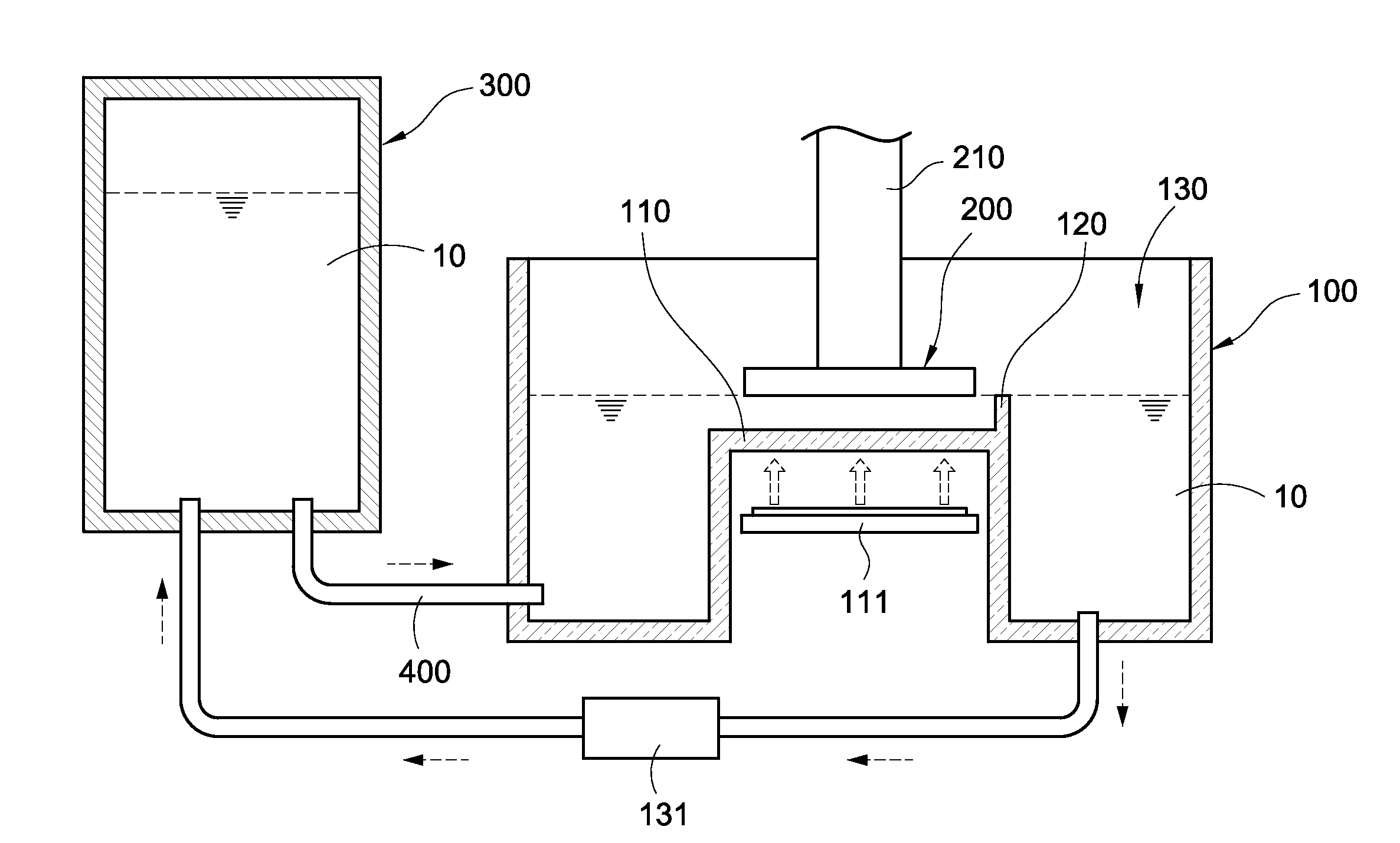

A three-dimensional printing device for solidifying and forming a forming liquid includes a forming tank, a pressure tank and a connecting line. The forming tank is for storing the forming liquid and the bottom of the forming tank protrudes towards the inside of the forming tank to form a forming area. The pressure tank is for providing a predetermined pressure. One end of the connecting line is connected to the pressure tank while the other end thereof is connected to the forming tank and is between a top surface of the forming area and the bottom of the forming tank. The pressure tank provides a predetermined pressure to the forming liquid to make the forming liquid submerge the forming area. Because of the pressure tank, it is able to precisely and stably maintain the depth of the liquid level of the forming liquid in the forming tank.
First Claim
Other Claims data not available
