SHELVING ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 7, 2015
filing date -
Oct 7, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

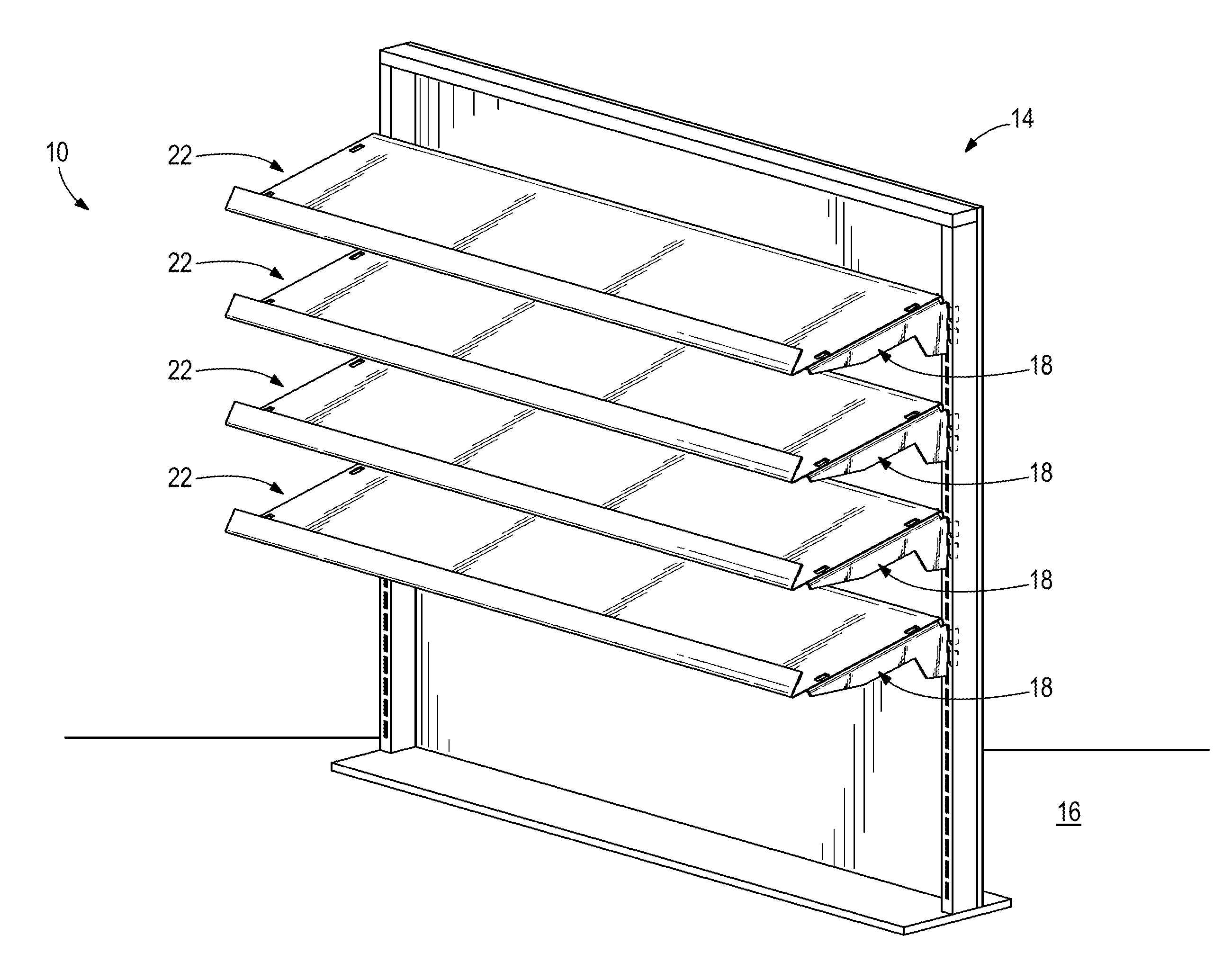

A shelving assembly includes a shelf bracket including a bracket front end, a bracket rear end disposed opposite the bracket front end, and a bracket support member extending between the bracket front end and the bracket rear end. The bracket support member has a top wall. The shelving assembly further includes a shelf configured for being releasably coupled to the shelf bracket, the shelf including a shelf front end, a shelf rear end disposed opposite the shelf front end, and a shelf support member extending between the shelf front end and the shelf rear end, the shelf support member having a top surface and a bottom surface. The shelf also includes a wall that extends from the shelf front end at an acute angle relative to the top surface of the shelf support member. The shelf support member and the wall provide support for products to be displayed on the shelving assembly. One of the shelf bracket and the shelf includes a projection, and the other of the shelf bracket and the shelf includes an aperture sized to receive the projection to capture the shelf relative to the shelf bracket.
First Claim
Other Claims data not available
