Method and system for deep packet inspection in software defined networks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2020
Grant Date -
Apr 6, 2017
app pub date -
Apr 21, 2015
filing date -
Apr 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

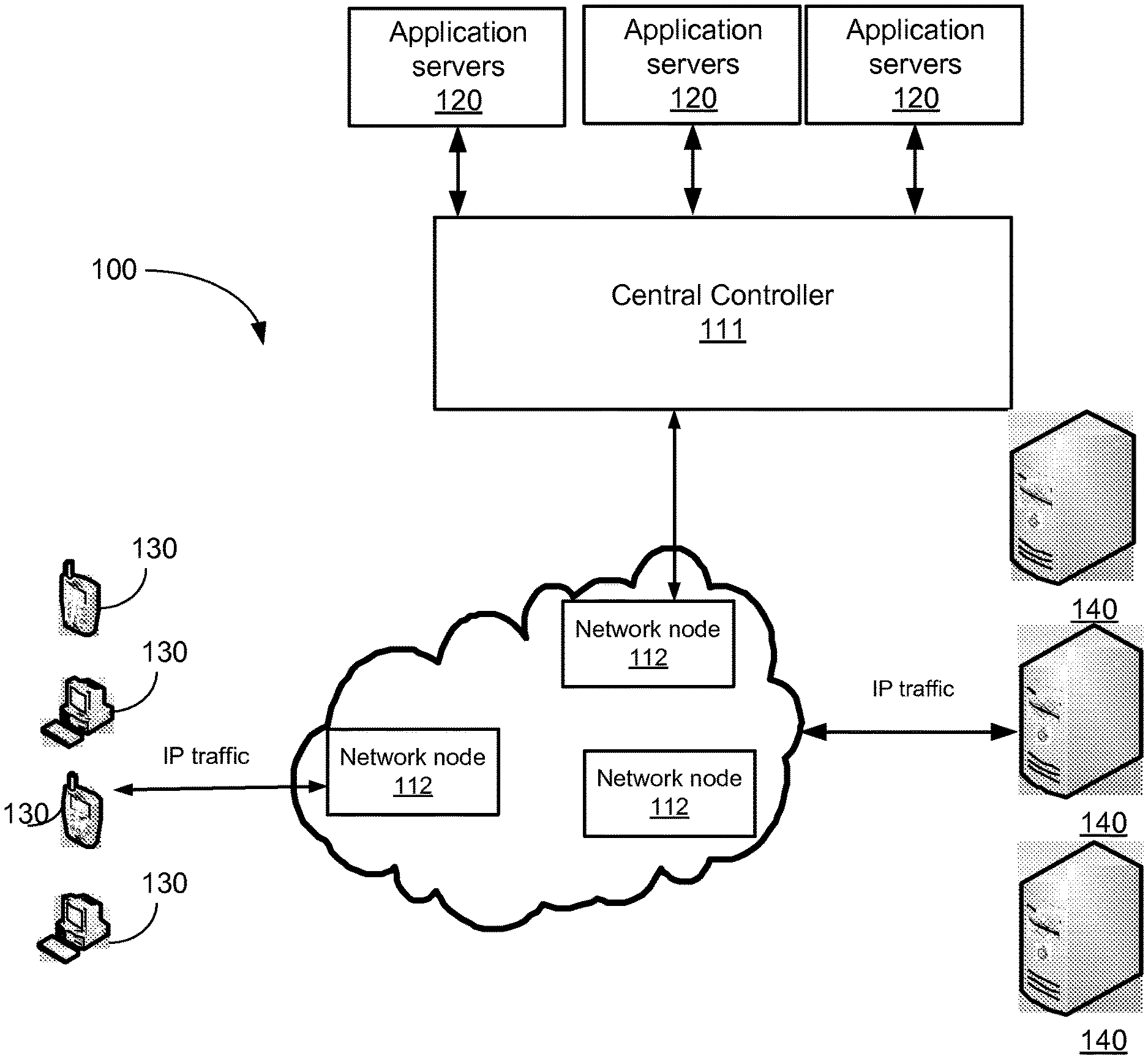

A method for deep packet inspection (DPI) in a software defined network (SDN). The method includes configuring a plurality of network nodes operable in the SDN with at least one probe instruction; receiving from a network node a first packet of a flow, the first packet matches the at least one probe instruction and includes a first sequence number; receiving from a network node a second packet of the flow, the second packet matches the at least one probe instruction and includes a second sequence number, the second packet is a response of the first packet; computing a mask value respective of at least the first and second sequence numbers indicating which bytes to be mirrored from subsequent packets belonging to the same flow; generating at least one mirror instruction based on at least the mask value; and configuring the plurality of network nodes with at least one mirror instruction.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2015 Application Filing Year
- H04L Class
- 33706 Applications Filed
- 25909 Patents Issued To-Date
- 76.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 12, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 12, 2031 |
