Distributed on-chip decoupling apparatus and method using package interconnect
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Oct 3, 2016
filing date -
May 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

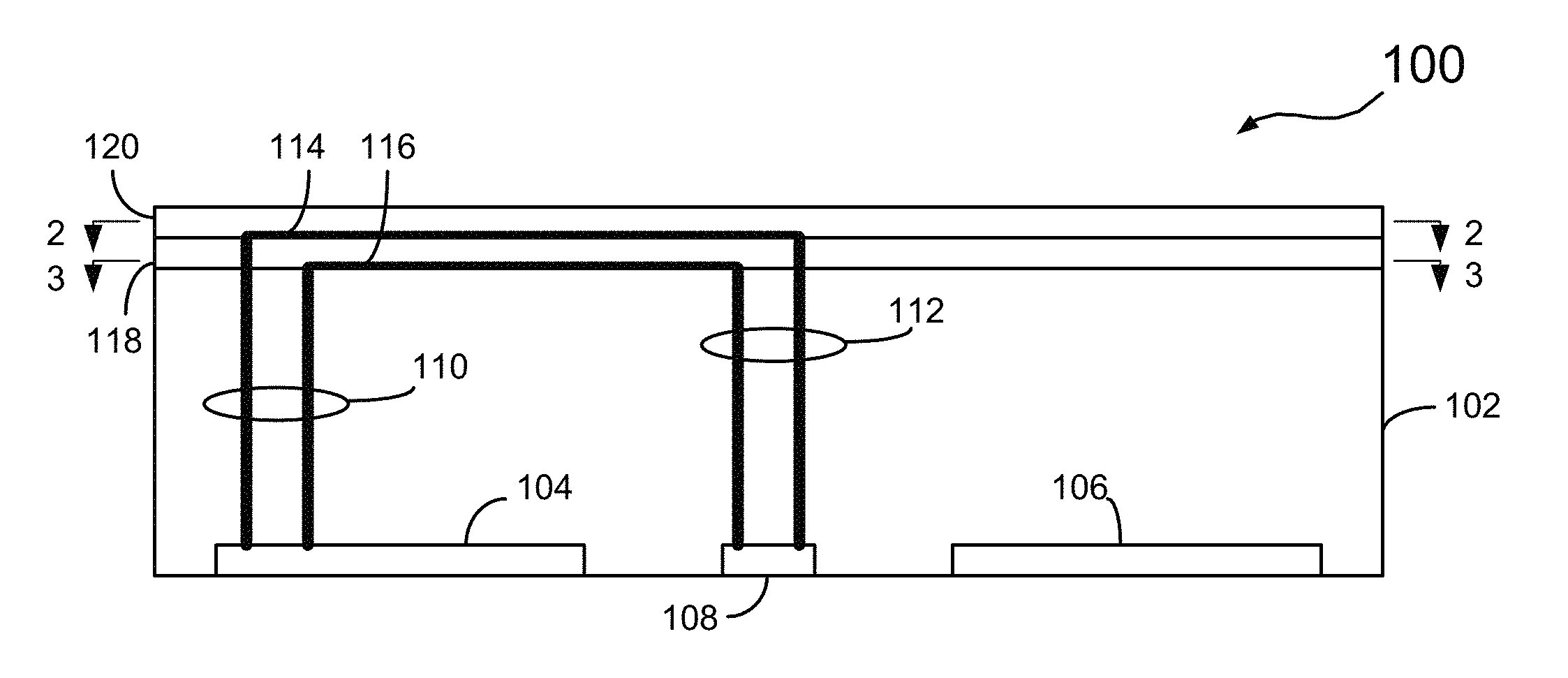

An integrated circuit device is disclosed. The integrated circuit device includes a semiconductor die fabricated by a front-end semiconductor process and having oppositely disposed planar surfaces. The semiconductor die is formed with semiconductor devices, power supply circuitry coupled to the semiconductor devices, decoupling capacitance circuitry, and through-vias. The through-vias include a first group of vias coupled to the power supply circuitry and a second group of vias coupled to the decoupling capacitance circuitry. Conductors are formed in a first metal layer disposed on the semiconductor die in accordance with a back-end semiconductor process. The conductors are configured to couple to the first and second groups of through-vias to establish conductive paths from the power supply circuitry to the decoupling capacitance circuitry.
