COMPOSITE MEMS FLOW SENSOR ON SILICON-ON-INSULATOR DEVICE AND METHOD OF MAKING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 6, 2017
app pub date -
Oct 5, 2015
filing date -
Oct 5, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

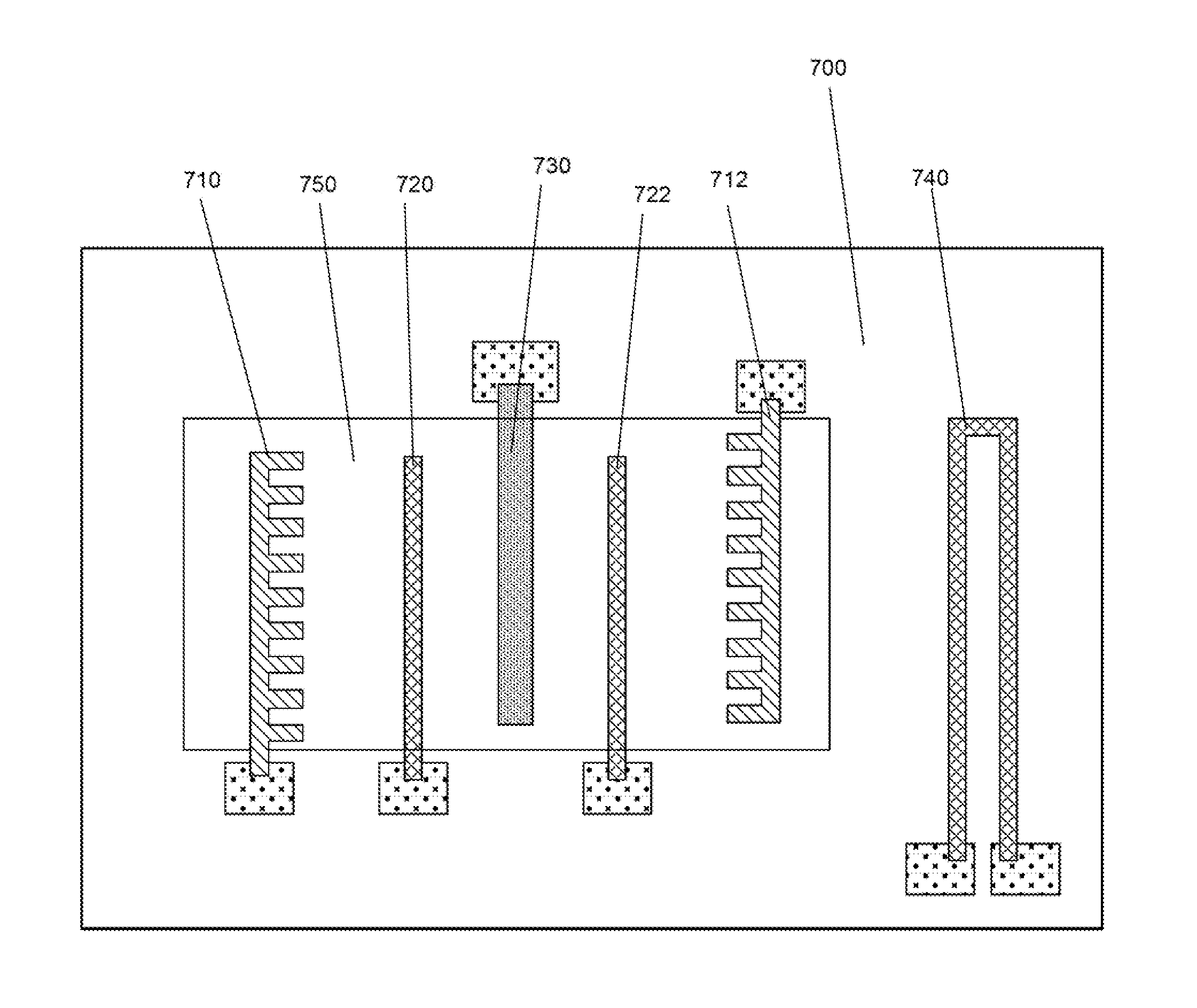

The present invention disclosed a micromachined composite silicon flow sensor that is comprised of calorimetric and anemometric flow sensing elements, time-of-flight sensing elements as well as independent temperature sensing elements on a silicon-on-insulator device where the device layer is used for the thermal isolation membrane. The disclosed composite silicon flow sensor can measure mass flowrate, volumetric flowrate and flow medium temperature simultaneously, from which a full spectrum of flow parameters including flow pressure can be obtained. The sensor can be further used to alert any changes in physical properties of flow medium during operation. The disclosed manufacture process details the micromachining process of making such a sensor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G01F Class
- 22.89 % this patent is cited more than
- 8 Age
