Touch panel having high resistance to static electricity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jul 27, 2016
filing date -
Sep 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

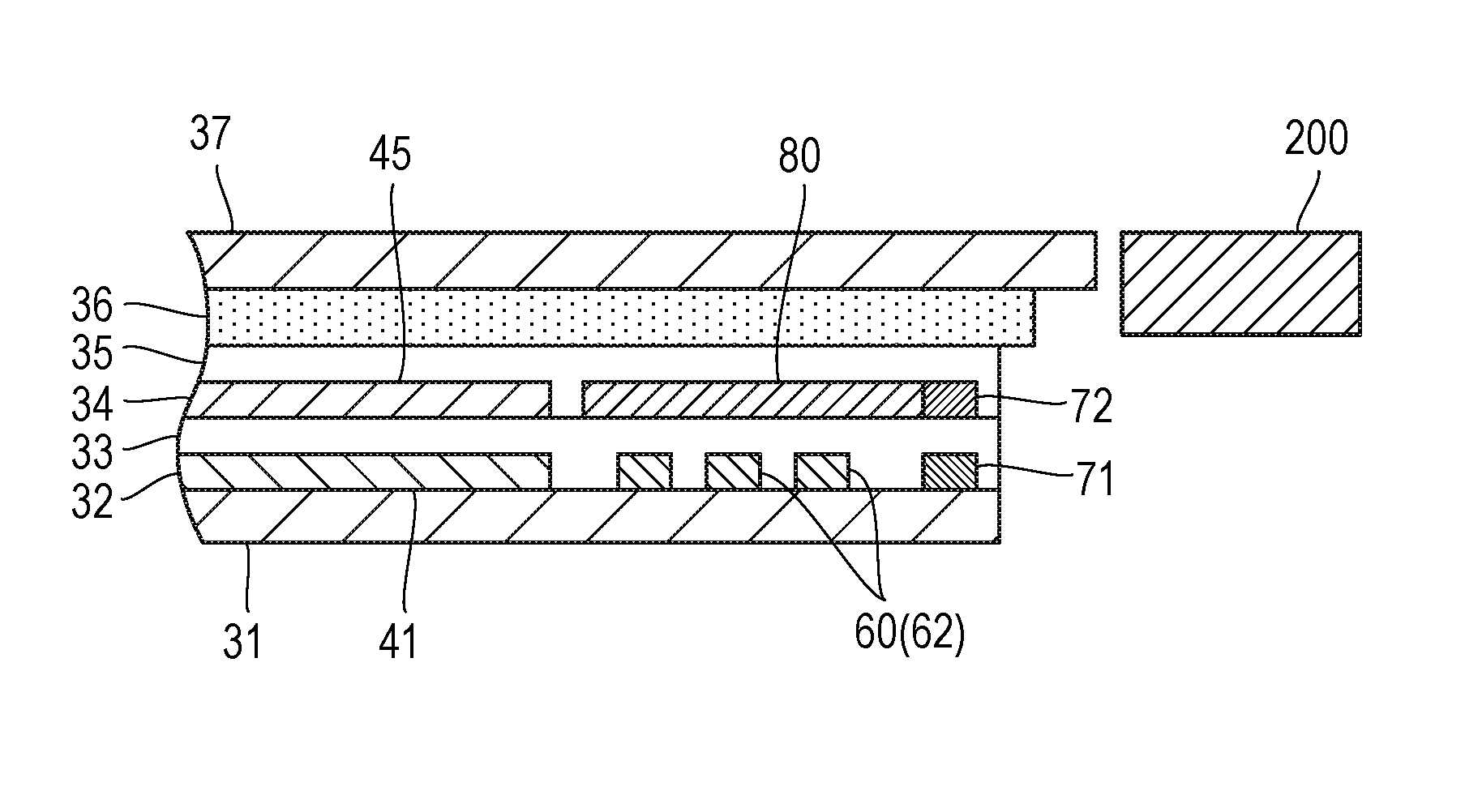

In a touch panel in which a sensor electrode array, frame wiring set that is located outside the sensor electrode array and connected to the sensor electrode array, and a first outer ground wiring line located outside the frame wiring set are formed on a transparent substrate of the touch panel, shielding wiring covering the frame wiring set is provided, with an insulating layer placed between the frame wiring set and the shielding wiring, and a second outer ground wiring line is provided outside the shielding wiring. The shielding wiring is connected to a ground wiring line included in the frame wiring set through a hole formed in the insulating layer and is insulated from the second outer ground wiring line.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B1 | JP5957132 | Sep 30, 2015 |
International Classification(s)
- 2016 Application Filing Year
- G06F Class
- 60255 Applications Filed
- 46180 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
