Oscillator with rotating detent
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Aug 4, 2016
filing date -
Sep 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance

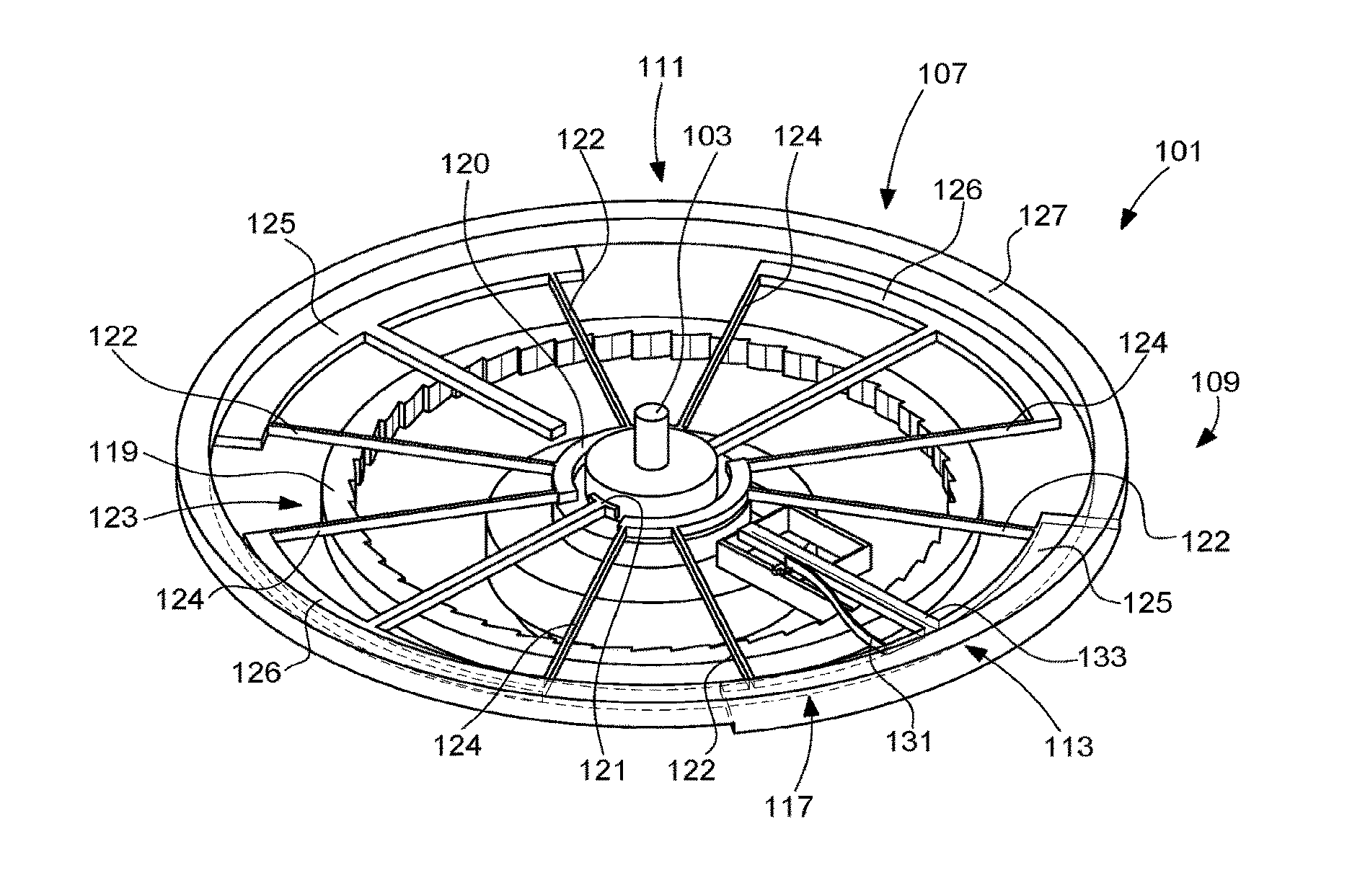

Abstract
The invention relates to an oscillator comprising a pivoting staff connected to a mechanical energy source, an inertia-elasticity resonator formed in one piece, which is mounted on the pivoting staff, a detent escapement comprising a single-piece detent fixed to the pivoting staff, which comprises at least one flexible blade and a stop member arranged to elastically lock the pivoting staff in relation to a concentric escapement toothing, wherein the release element is arranged to elastically unlock the stop member in relation to the concentric escapement toothing, by the movement of the member forming the inertia, so that the pivoting staff counts each oscillation of the resonator while transmitting to it the energy able to maintain it.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G04B Class
- 310 Applications Filed
- 246 Patents Issued To-Date
- 79.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G04B Class
- 30.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
