Road vehicle with an electric drive
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2020
Grant Date -
Mar 30, 2017
app pub date -
Sep 23, 2016
filing date -
Sep 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

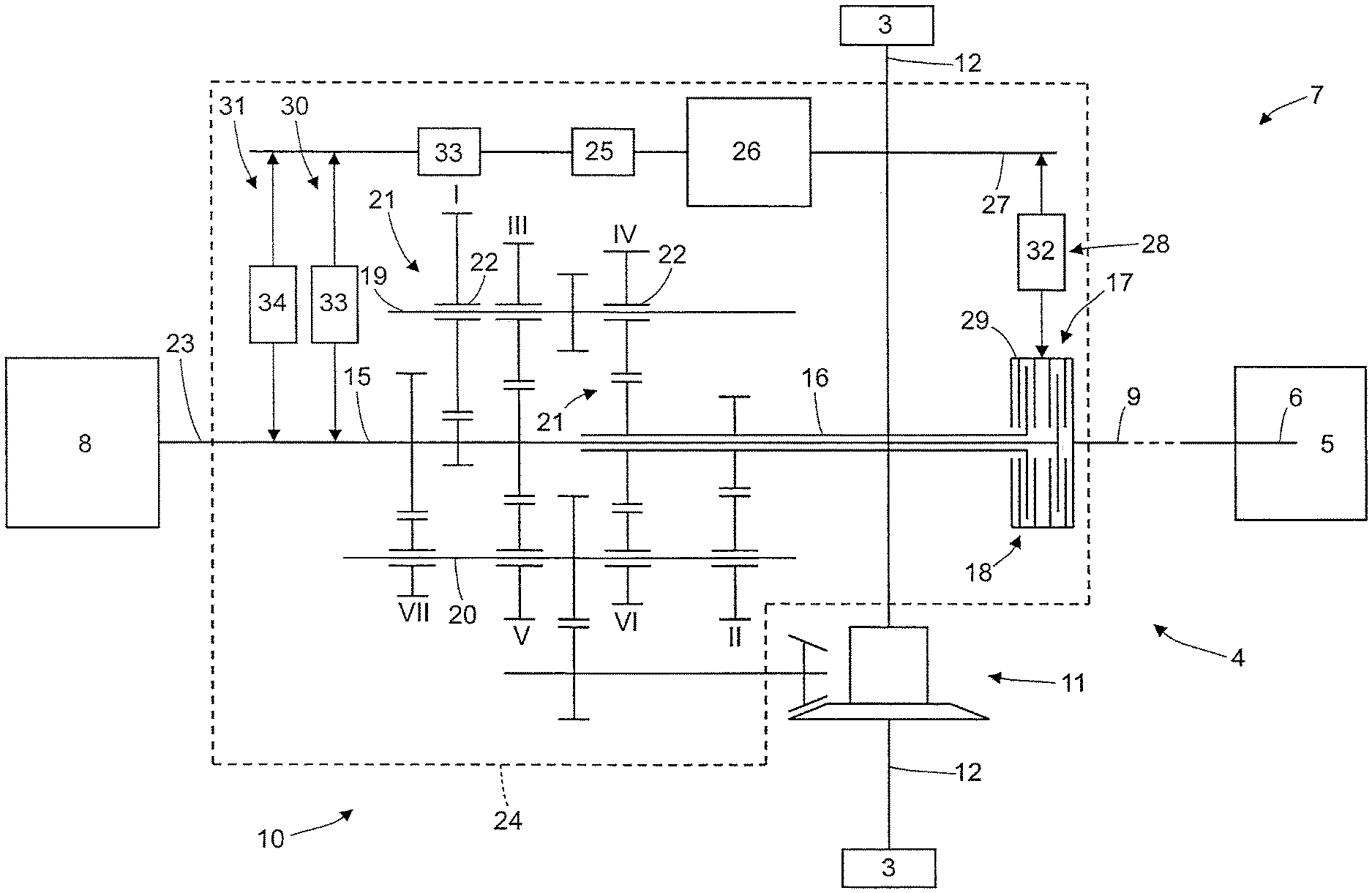

A road vehicle with an electric drive having: a heat engine provided with a carrier shaft; a gearbox; at least one pump actuated by a carrier shaft; at least a reversible electric machine; a first mechanical transmission, which transmits the motion from the drive shaft of the heat engine to the carrier shaft and is provided with a first freewheel; a second mechanical transmission, which transmits the motion from the shaft of the electric machine to the carrier shaft and is provided with a second freewheel; and a third mechanical transmission, which is arranged in parallel to the second mechanical transmission, transmits the motion from the shaft of the electric machine to the carrier shaft, is provided with a third freewheel and reverses the direction of motion with respect to the second mechanical transmission.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 9, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 9, 2031 |
