Patient-specific instrumentation for patellar resurfacing surgery and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2020
Grant Date -
Mar 30, 2017
app pub date -
Sep 30, 2016
filing date -
Sep 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

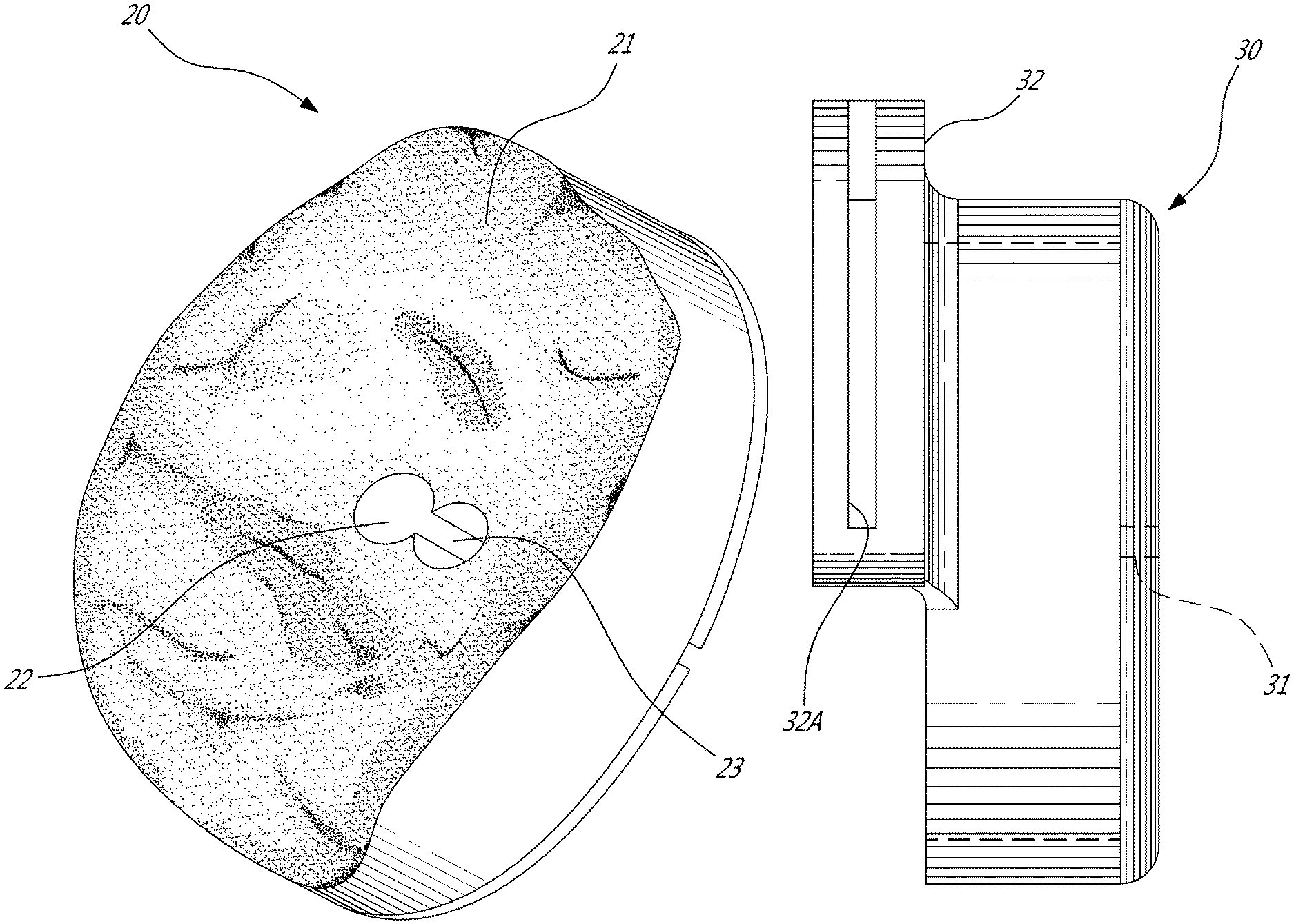

A system for creating a patient-specific jig model for patellar resurfacing surgery comprises a patellar implant positioning module for obtaining a planned position of a patellar implant on a model of the patella, the model being anatomically patient-specific. A patella resurfacing calculator module calculates a position and/or orientation of a resurfacing plane and attachment bore in the patella as a function of the planned position of the patellar implant. A jig model generator module for generates and outputs a virtual jig model using the resurfacing plane and attachment bore of the patella and the model of the patella, the jig model comprising at least one patient-specific contact surface corresponding to a surface of the patella for complementary contact, at least one drill guide positioned relative to the at least one patient-specific contact surface to be configured to guide a tool defining the attachment bore for the patellar implant, and at least one cut guide positioned relative to the at least one patient-specific contact surface to be configured to guide a tool in resurfacing the patella to form the planned resurfacing plane.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2032 |
