Integration of an auxiliary device with a clamping device in a transient voltage suppressor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Nov 30, 2016
filing date -
Jan 31, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

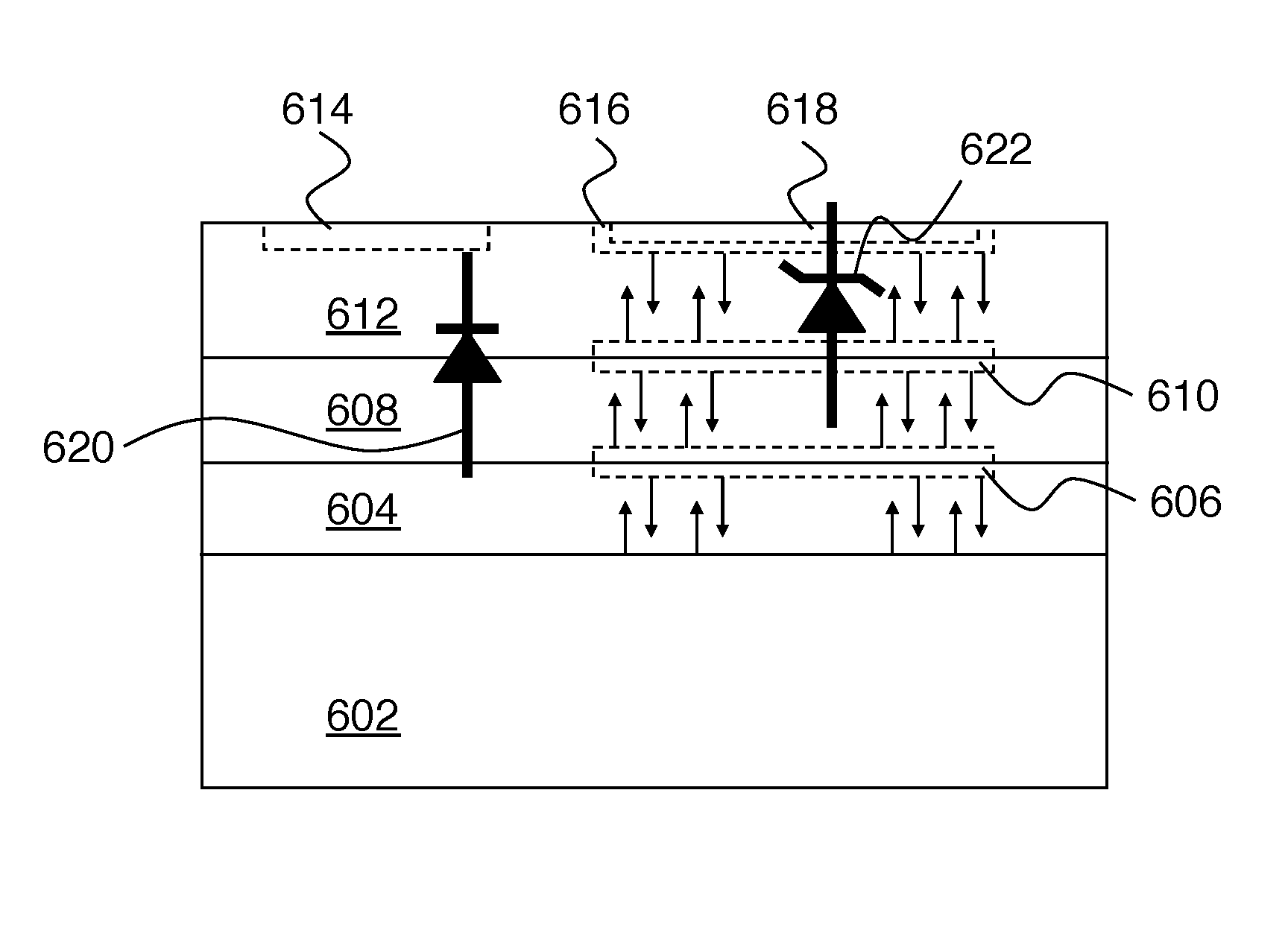

Monolithic integration of low-capacitance p-n junctions and low-resistance p-n junctions (when conducting in reverse bias) is provided. Three epitaxial layers are used. The low-capacitance junctions are formed by the top two epitaxial layers. The low-resistance p-n junction is formed in the top epitaxial layer, and two buried structures at interfaces between the three epitaxial layers are used to provide a high doping region that extends from the low-resistance p-n junction to the substrate, thereby providing low resistance to current flow. The epitaxial layers are lightly doped as required by the low-capacitance junction design, so the buried structures are needed for the low-resistance p-n junction. The high doping region is formed by diffusion of dopants from the substrate and from the buried structures during thermal processing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
