Label printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Apr 8, 2015
filing date -
Jun 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

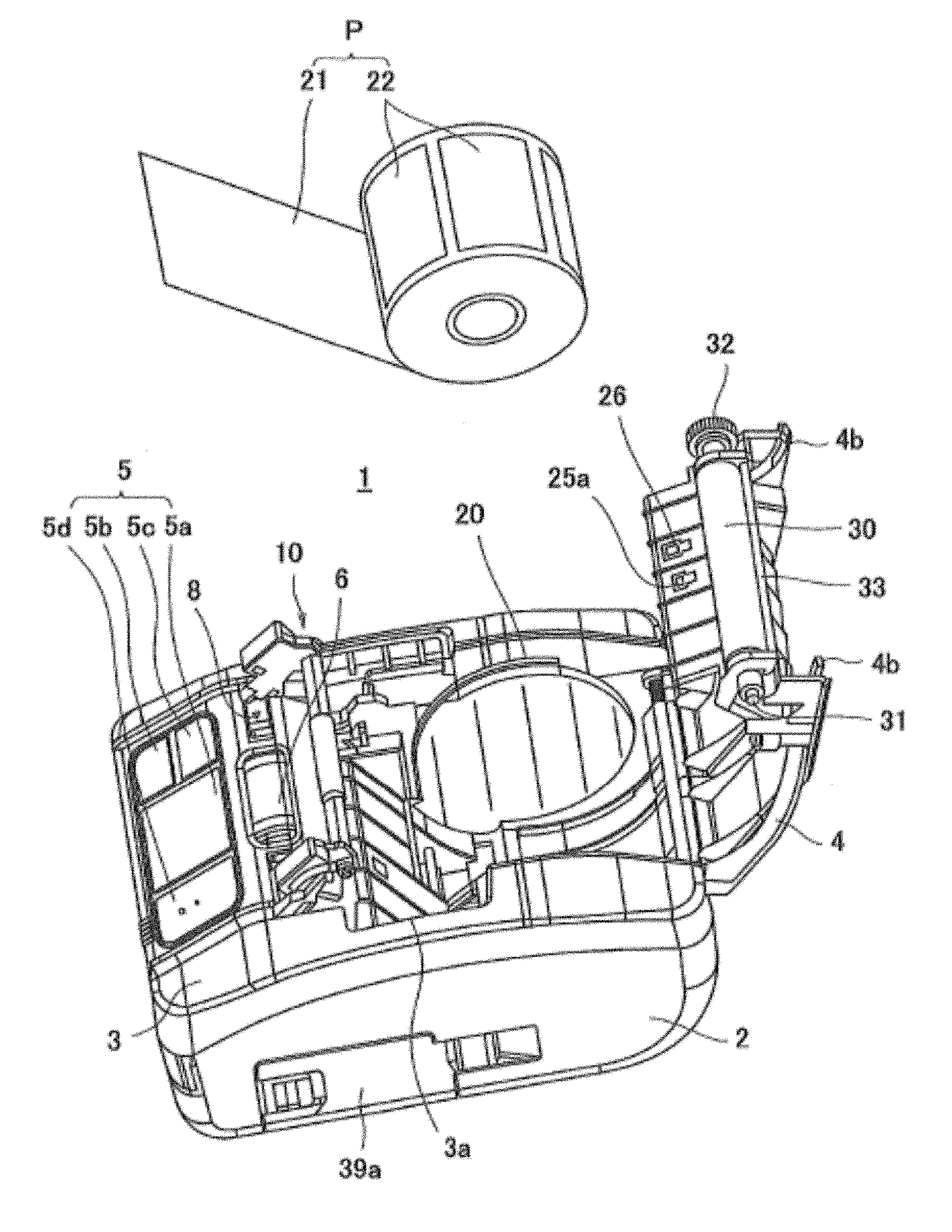

A separation unit (10) of a label printer includes a metal nip roller shaft (11), a resin nip roller (12) disposed at a center part of the nip roller shaft and is supported so as to be rotatable around the nip roller shaft, and resin supporters (13) that support both ends of the nip roller shaft. The separation unit (10) is attached to the body case (2) to be relatively movable between the normal ejection position and the separation ejection position. Each of the pair of supporters has a part protruding toward the nip roller, and this part is a roller holder (13d) to insert an end of the nip roller shaft. The roller holder and the supporter are integrally formed for enhanced strength of the supporter.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B41J Class
- 2708 Applications Filed
- 2451 Patents Issued To-Date
- 90.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
