GUIDE TUBE FOR GUIDING CABLE OF INTERNAL OBSERVATION DEVICE AND CABLE GUIDING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 16, 2017
app pub date -
Mar 5, 2014
filing date -
Mar 5, 2014
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

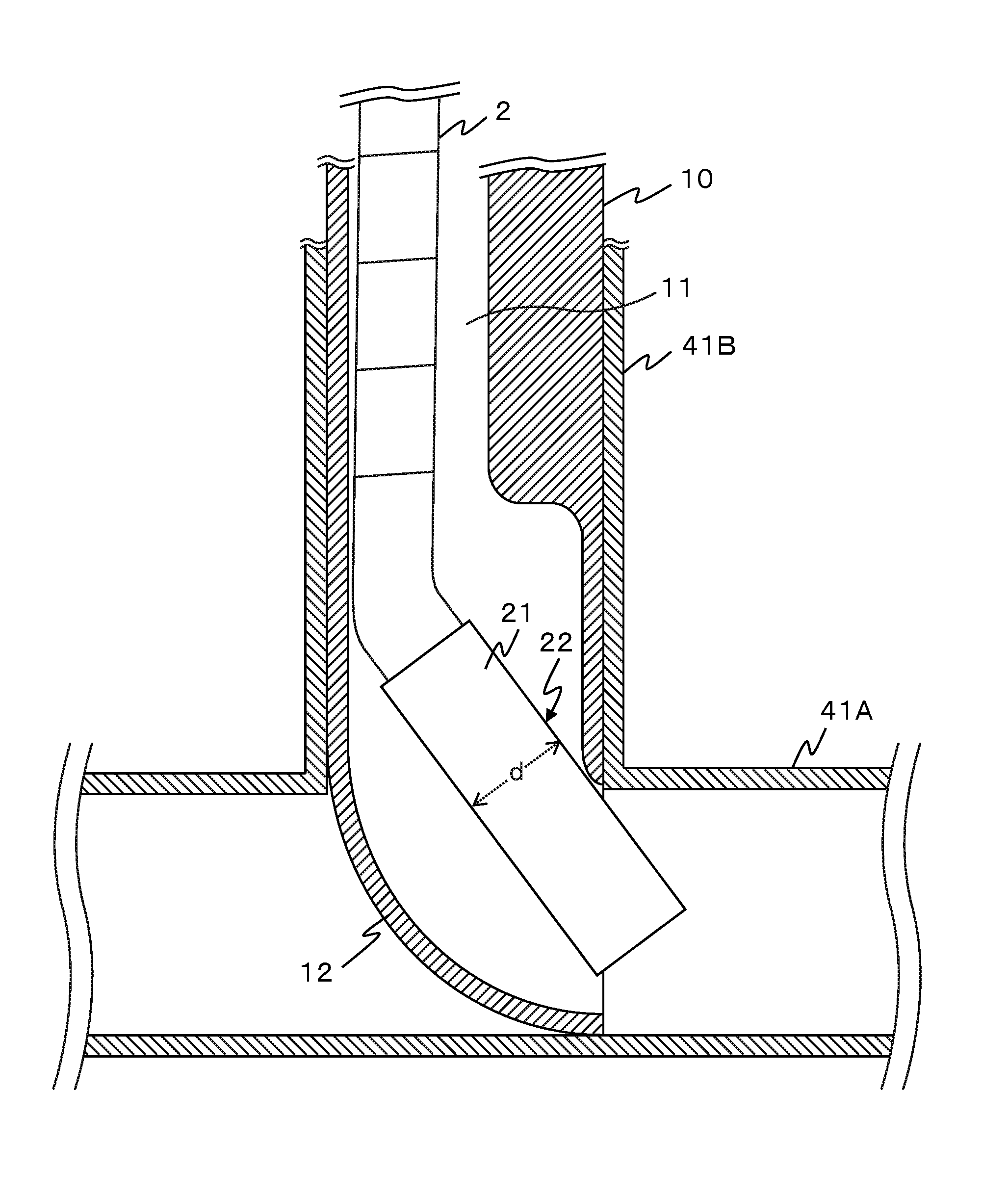

A guide tube guides a cable of an internal observation device into a pipe bore. The cable is pushed into the pipe bore to force an observation image capturing part provided proximate a tip end of the cable to approach a portion to be observed when performing internal observation of the pipe bore of a pipe-like structure with the internal observation device. The guide tube includes: an outside wall having an outside diameter of the guide tube that is substantially equal to an internal diameter of the pipe bore; and an internal wall having an internal diameter of the guide tube that is substantially equal to an outside diameter of the cable
