Exterior polymer-based brick building material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Issued Date -
N/A
app pub date -
Nov 15, 2016
filing date -
Sep 1, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

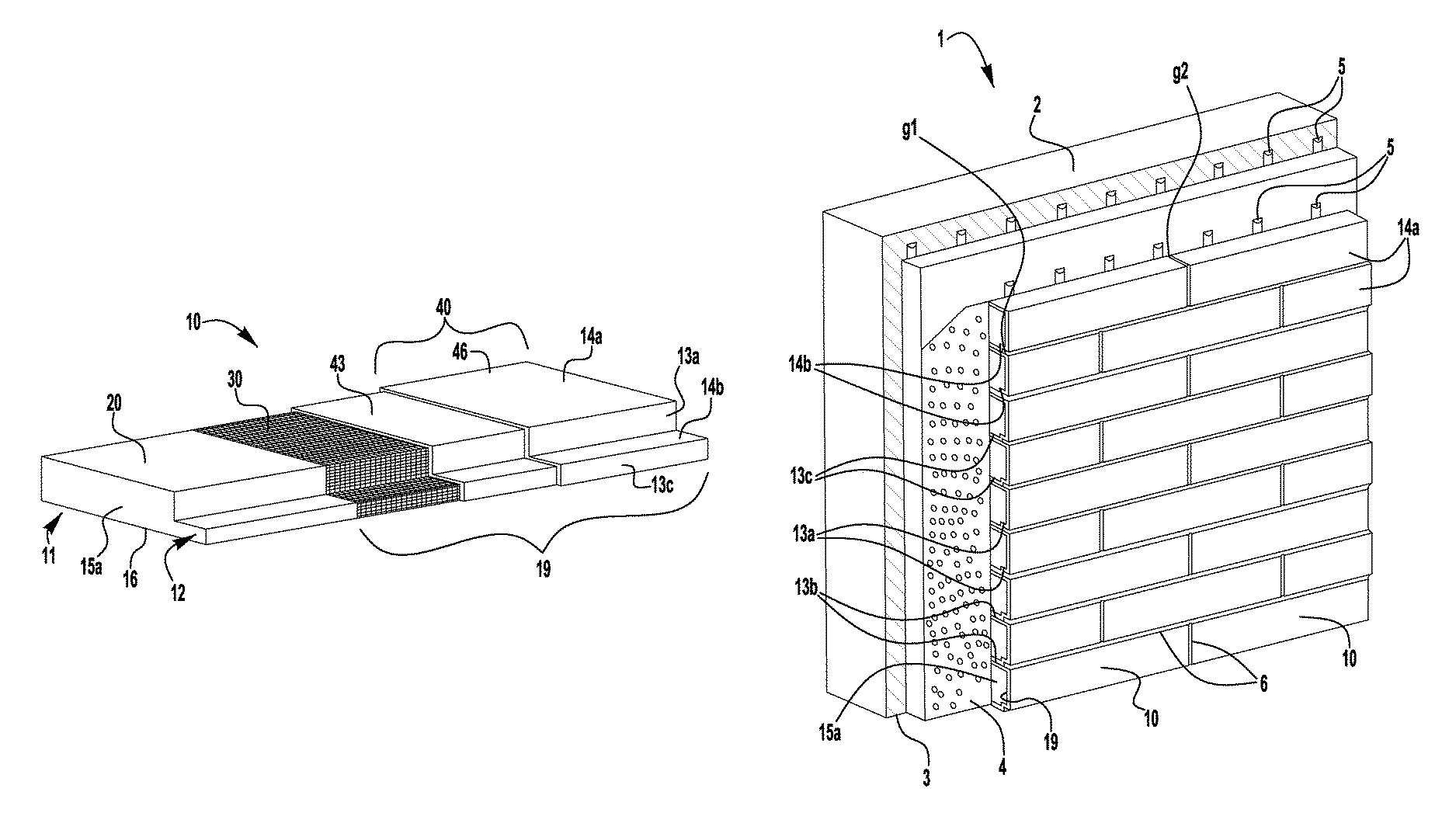

A simulated brick includes a polymeric core member, a mesh layer adhered to the core member, a basecoat layer covering an entirety of the mesh layer, and a finish layer covering an entirety of the basecoat layer. The core member, the mesh layer, the basecoat layer, and the finish layer together define a brick profile portion having first and second lateral sides extending to a planar outer surface to define a first thickness, and an offset portion extending from the first lateral side of the brick profile portion to a lateral end surface and having an outer surface defining a second thickness smaller than the first thickness, the brick profile portion and the offset portion together defining a planar rectangular base surface extending from the second lateral side of the brick profile portion to the lateral end surface of the offset portion.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- E04B Class
- 88.83 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
| Fee | Large entity fee | small entity fee | micro entity fee |
|---|---|---|---|
| Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
| Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
| Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
| Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
