Reduction gear
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Aug 19, 2016
filing date -
Sep 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

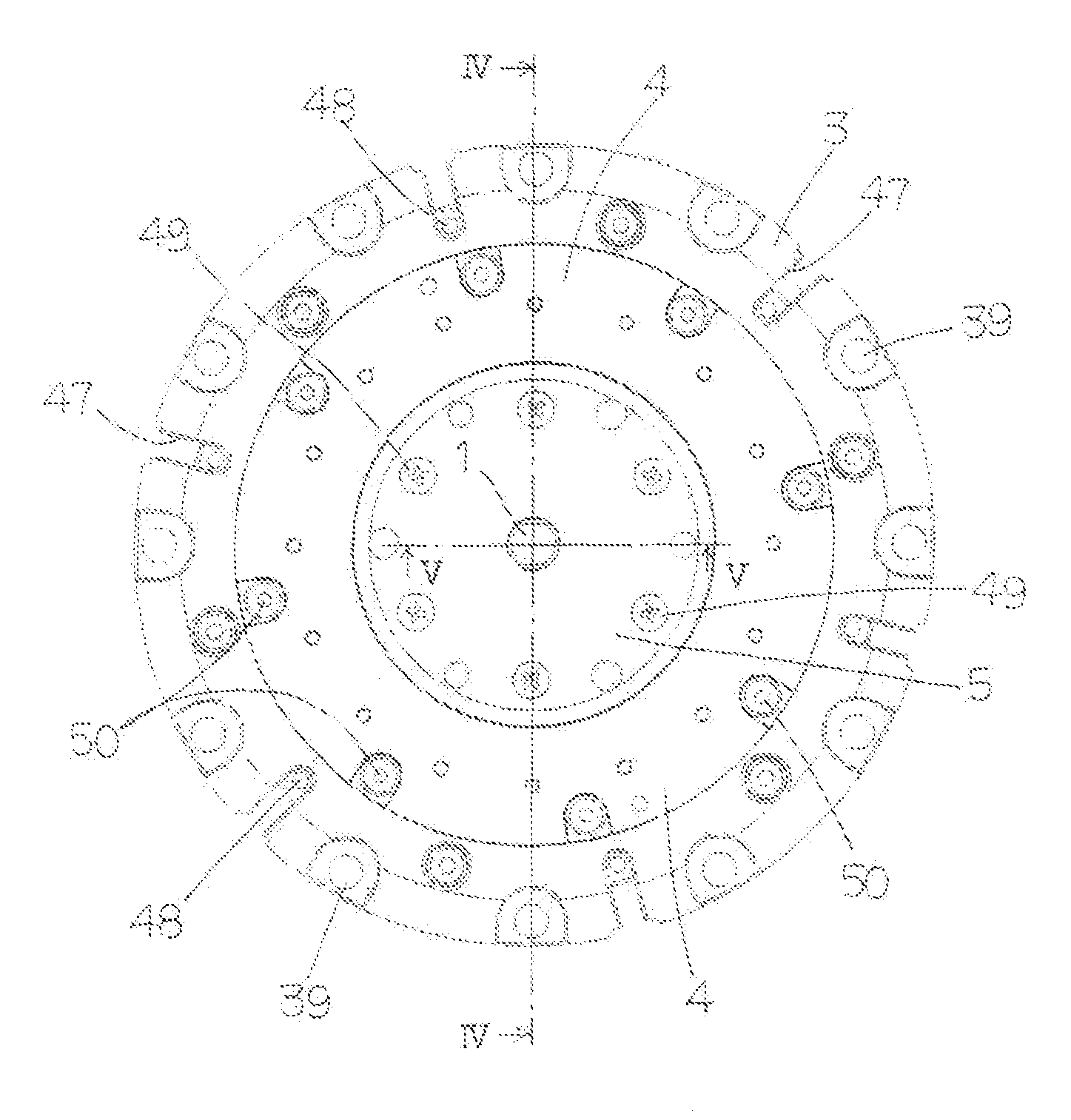

A reduction gear of the present invention is compact and light and can be used for tire portions of an apparatus for travelling, etc. Each of outer and inner pins is formed by a rolling bearing. The reduction gear includes block-shaped lubricating members which supply a lubricant to the outer rings of the outer pins to thereby lubricate them, and a ring-shaped lubricating member which supplies the lubricant to the outer rings of the inner pins to thereby lubricate them. The lubricant can be supplied to a pair of cycloid gears through the outer pins and the inner pins for lubrication. Since the cycloid gears, the outer pins, and the inner pins are lubricated by the lubricating members, the reduction gear can enhance its durability, reduce the friction between components to thereby lower the frictional resistance, and realize a light and compact structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60K Class
- 2914 Applications Filed
- 2276 Patents Issued To-Date
- 78.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60K Class
- 24.10 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
