Bearing device for crankshaft of internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Aug 25, 2016
filing date -
Aug 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

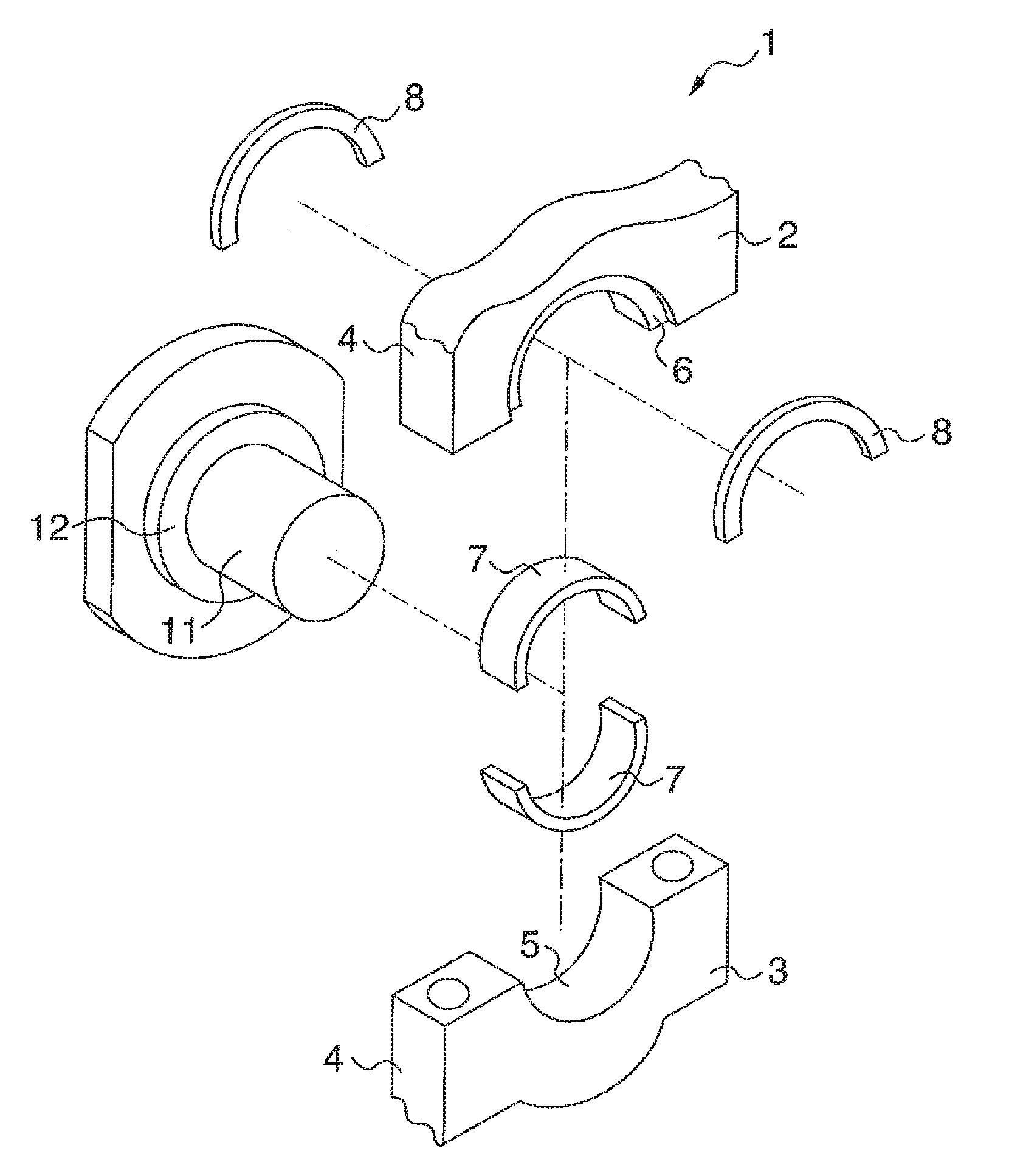

The invention provides a bearing device, including a crankshaft, a pair of half bearings each having crush reliefs adjacent to both circumferential ends thereof, a bearing housing having a retaining hole, and one half thrust bearing arranged adjacent to the retaining hole. Each half thrust bearing is configured at least by a bearing alloy layer and a resin slide layer which constitutes a slide surface receiving an axial force of the crankshaft, and thrust reliefs adjacent to both circumferential end portions of the sliding surface so that its wall thickness is made thinner toward the circumferential end surface. A thrust relief length at an inner end portion of the thrust relief positioned on a rear side in the crankshaft rotational direction is formed to be larger than a thrust relief length at an inner end portion of the thrust relief positioned on a front side.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16C Class
- 1479 Applications Filed
- 1109 Patents Issued To-Date
- 74.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
