Panel with a fastening device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Grant Date -
Mar 2, 2017
app pub date -
Aug 22, 2016
filing date -
Aug 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

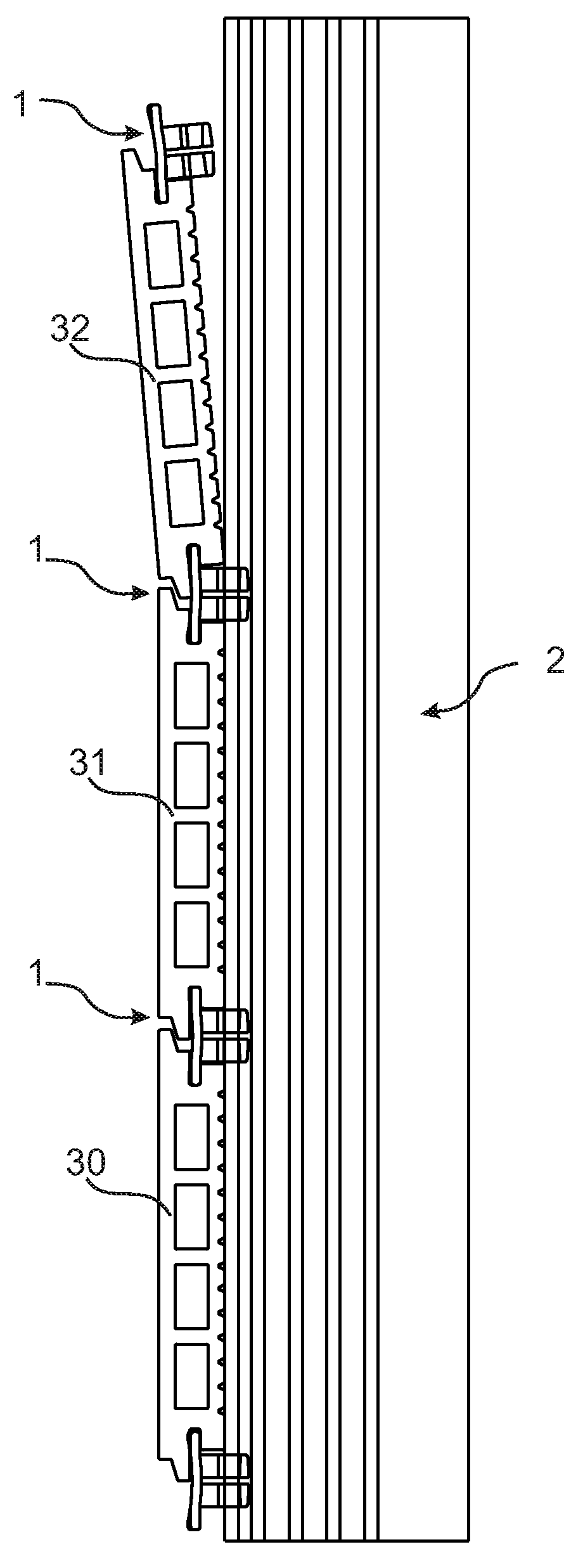

The present disclosure relates to a set comprising a supporting structure, first and second panels and a fastening device for securing the first and second panels to the supporting structure. The fastening device comprises a top portion, having top and bottom surfaces, first and second edge portions, and first and second legs protruding downwardly from the bottom surface. The first and second panels respectively comprise opposite first and second edge grooves into which the first and second edge portions are configured to be respectively inserted. The first and second legs are flexible and bendable towards each other, and respectively comprise first and second locking elements. An upper surface of the supporting structure comprises an insertion groove comprising a first undercut groove and an opposite second undercut groove. The first and second locking elements are respectively configured to be snapped into the first and second undercut grooves to a locked position.
