Apparatus for processing sheets and apparatus for forming images provided with the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Grant Date -
Mar 2, 2017
app pub date -
Aug 24, 2016
filing date -
Aug 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

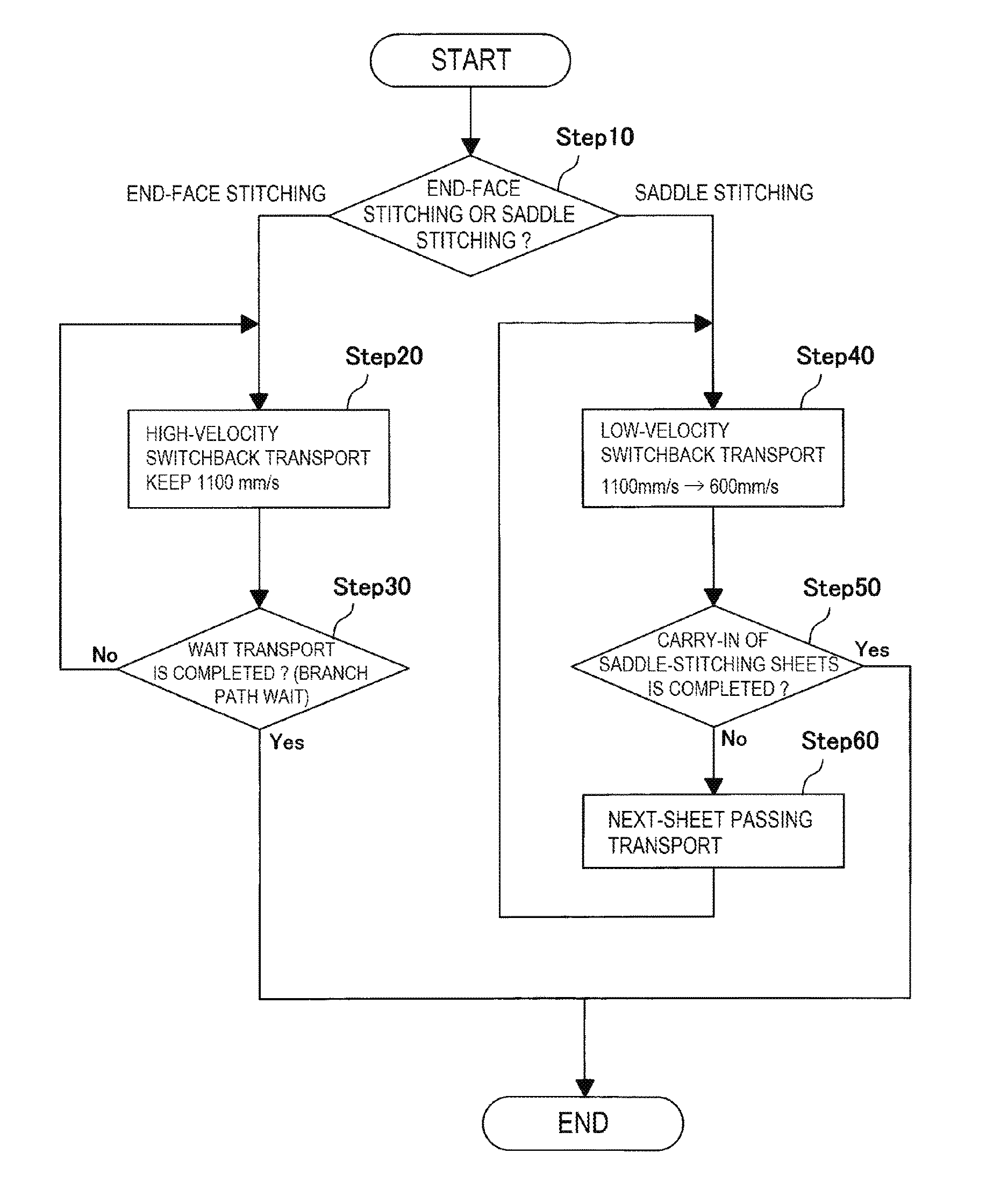

An apparatus includes a transport path for transporting a sheet, a branch path branched off from the transport path to transport a sheet to a stacker, transport rollers on the transport path, branch rollers on the branch path, and a sheet processing control section controlling the rollers. The control section performs wait transport for switchback-transporting a sheet to cause the sheet to once wait in the branch path after the sheet transported in the transport path passes through a branch position, and transporting the sheet to a first processing tray together with a subsequent sheet, and second tray transport for switchback-transporting a sheet to transport to the stacker via the branch path after the sheet passes through the branch position, makes a switchback transport velocity in the second tray transport lower than that in switchback transport in the wait transport, and suppresses fluttering and bending of the sheet.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B65H Class
- 1514 Applications Filed
- 1205 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B65H Class
- 41.16 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
