Directional locking reverse shoulder prostheses and systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2020
Grant Date -
Mar 2, 2017
app pub date -
Aug 26, 2016
filing date -
Aug 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

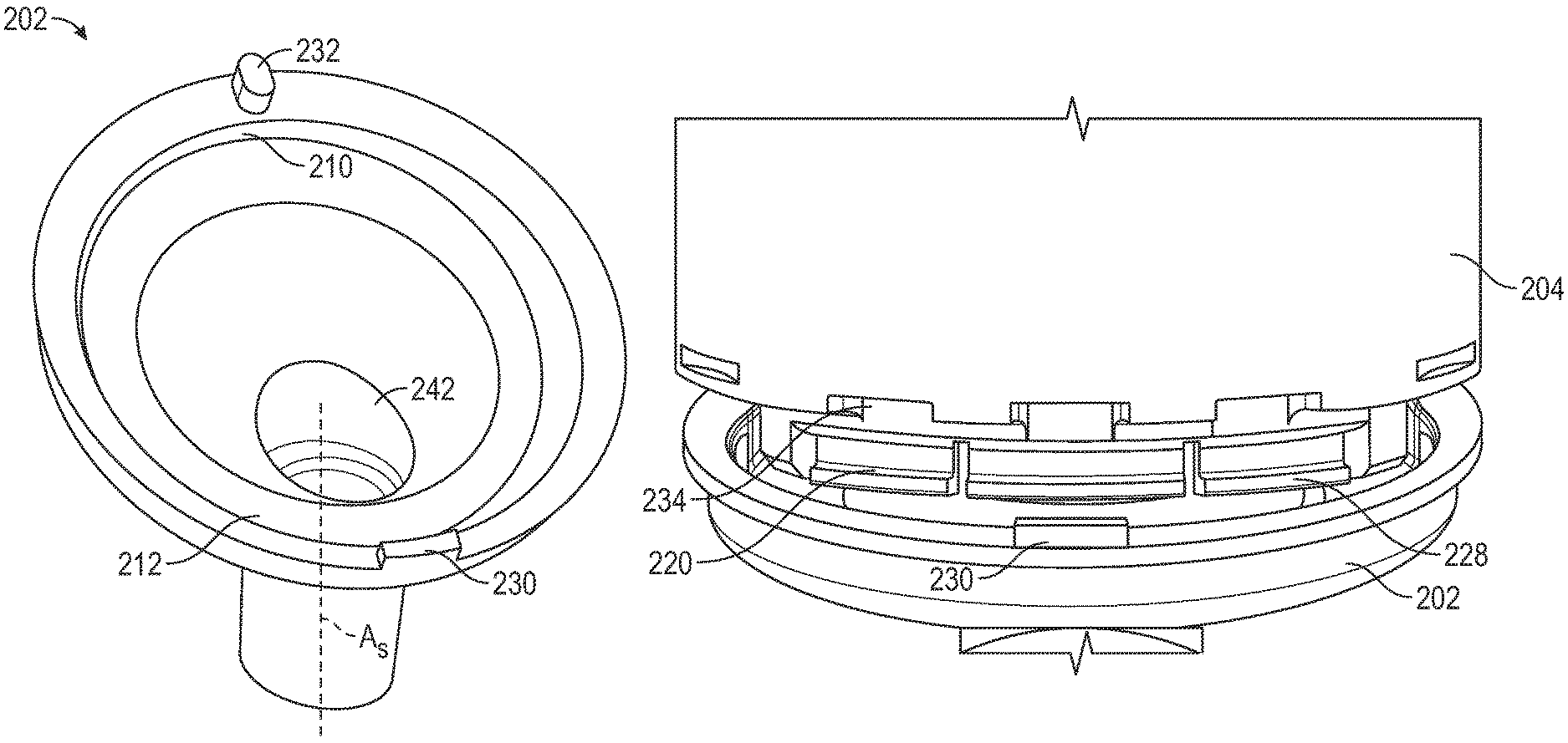

The present disclosure relates to prosthesis systems having trays and liners having an asymmetrical locking mechanism to bias the strength of the liner to resist loading forces and associated methods. The tray has a lateral groove disposed in an inner surface of a lateral circumferential portion of the tray and a medial groove disposed in an inner surface of a medial circumferential portion of the tray. The liner has an upper segment and a lower segment. The liner has a locking portion for lockingly engaging the tray that includes the lower segment. The locking portion has a lateral toe positioned generally diametrically opposite a plurality of resiliently deformable medial fingers defined therein. The liner and the tray are engageable in a lateral-to-medial direction so that the plurality of medial fingers can resiliently deform to engage the medial groove subsequent to engagement of the lateral toe within the lateral groove.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- A61F Class
- 6495 Applications Filed
- 4723 Patents Issued To-Date
- 72.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A61F Class
- 38.18 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 14, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2032 |
