EXPANDED BEAM CONNECTOR WITH DISCRETE ALIGNMENT ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 23, 2017
app pub date -
Aug 21, 2015
filing date -
Aug 21, 2015
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

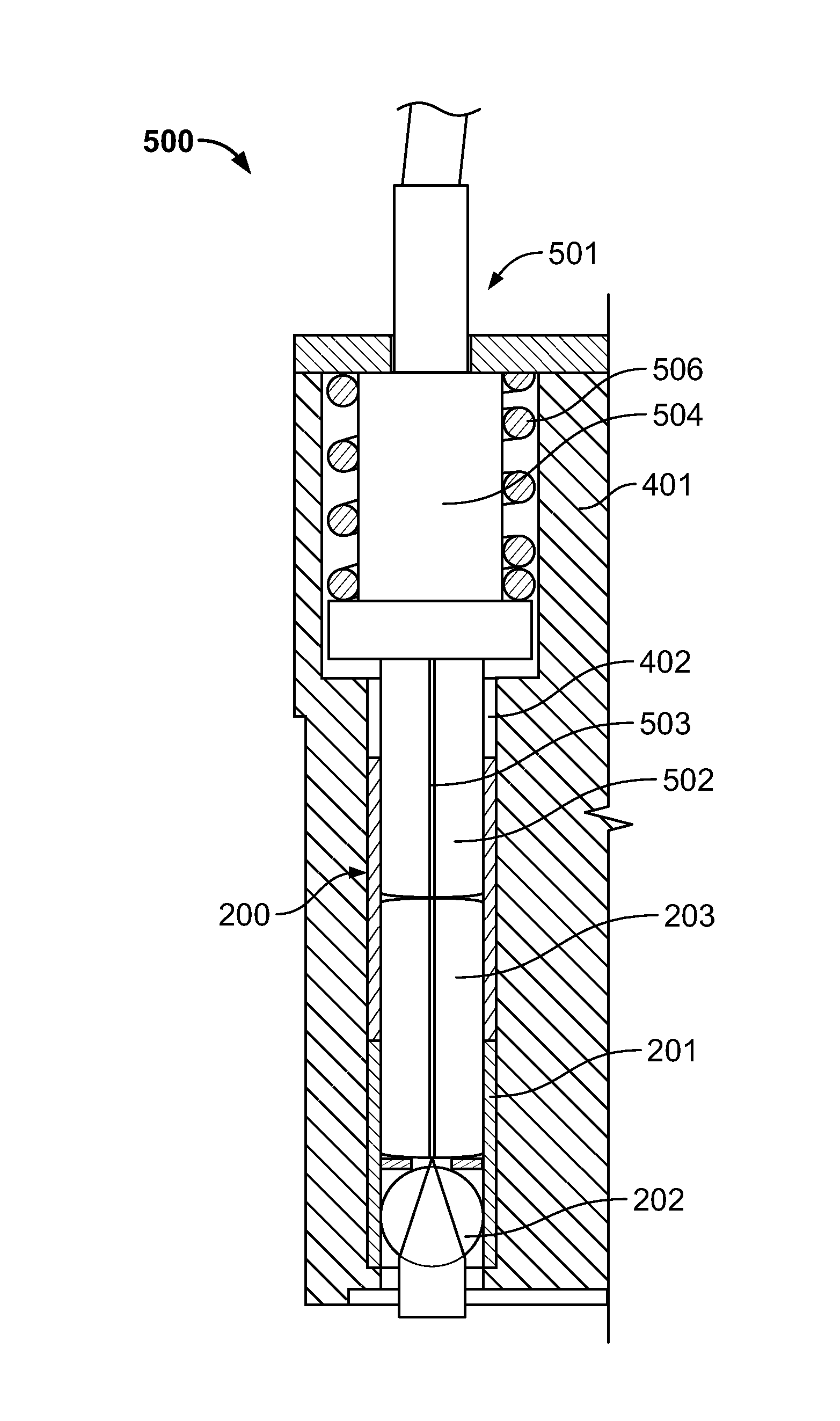

An alignment assembly for disposition in an insert for an expanded beam connector, said alignment assembly comprising: (a) at least one cylindrical sleeve having an inner first diameter, and an outer diameter configured to be received in said insert of said connector; (b) a lens disposed in said sleeve, and having a round periphery with a second diameter larger than said first diameter; and (c) a ferrule stub disposed at least partially in said sleeve, and having a round periphery with a third diameter essentially the same as the second diameter, said ferrule stub comprising a fiber stub optically coupled to said lens.
