Device and a method for making ice cubes and a metering device for ice cubes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2020
Grant Date -
Feb 23, 2017
app pub date -
May 2, 2016
filing date -
Jul 2, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

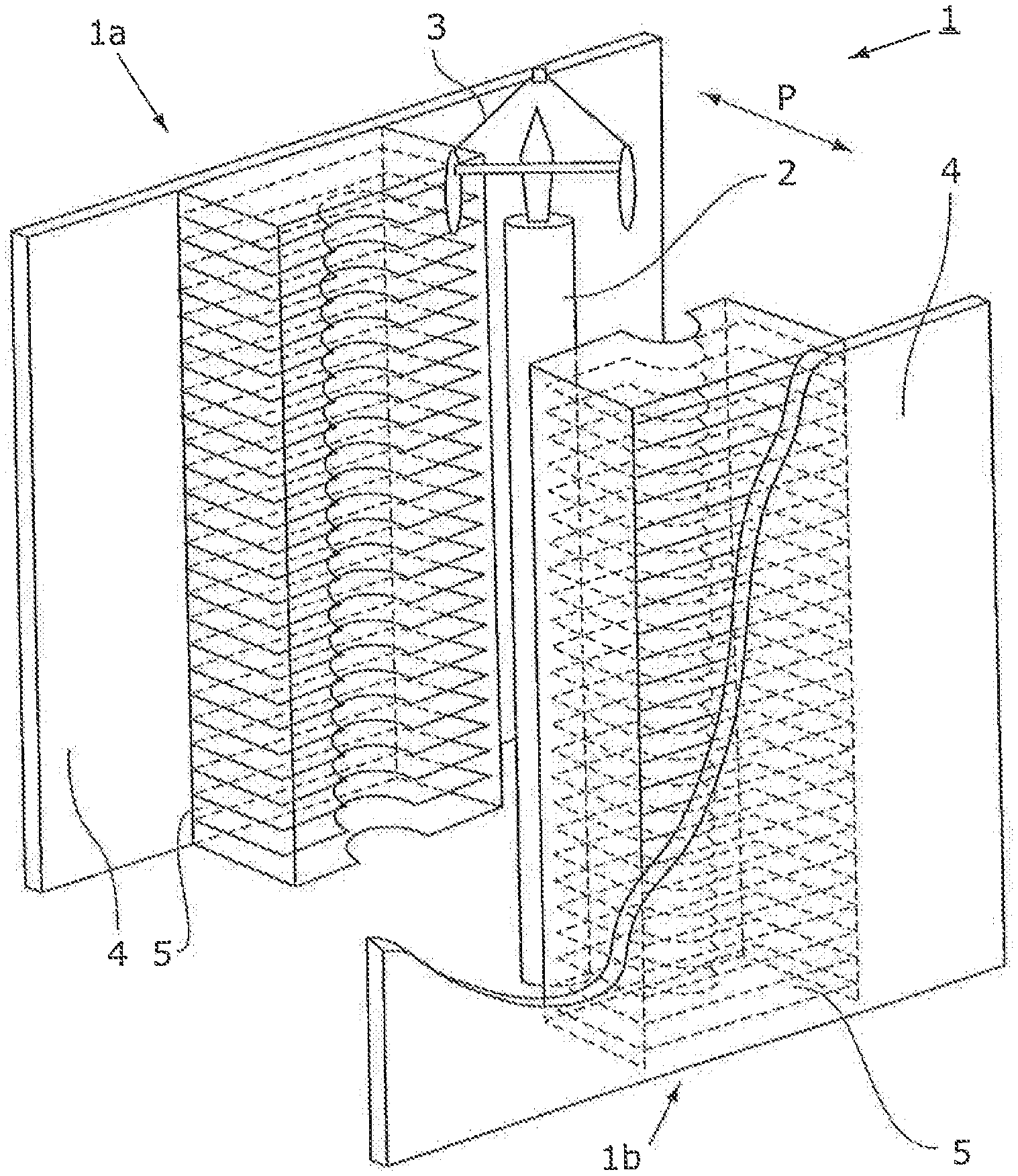

Device and method for making ice cubes, comprising a supplying device for supplying a liquid substance to at least one elongated mould (1) and a refrigerating device for freezing said liquid substance, which at least one mould defines a space for an ice column which is at least substantially closed at least while said liquid substance is being refrigerated. The at least one mould comprises two mould halves (1a, 1b) which are movable relative to each other, so that the mould halves can be moved apart once the ice column has been formed. Method for making ice cubes, comprising the steps of a) supplying a liquid substance to a mould, b) freezing the liquid substance in the mould, and c) removing the ice cubes thus formed from the mould, wherein the liquid substance is supplied in step a) to a mould comprising an at least substantially closed space. Metering device for ice cubes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F25C Class
- 197 Applications Filed
- 134 Patents Issued To-Date
- 68.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F25C Class
- 57.89 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2032 |
