OPERATION GUIDE SYSTEM FOR X-RAY ANALYSIS, OPERATION GUIDE METHOD THEREFOR, AND OPERATION GUIDE PROGRAM THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 9, 2017
app pub date -
Aug 3, 2016
filing date -
Aug 6, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

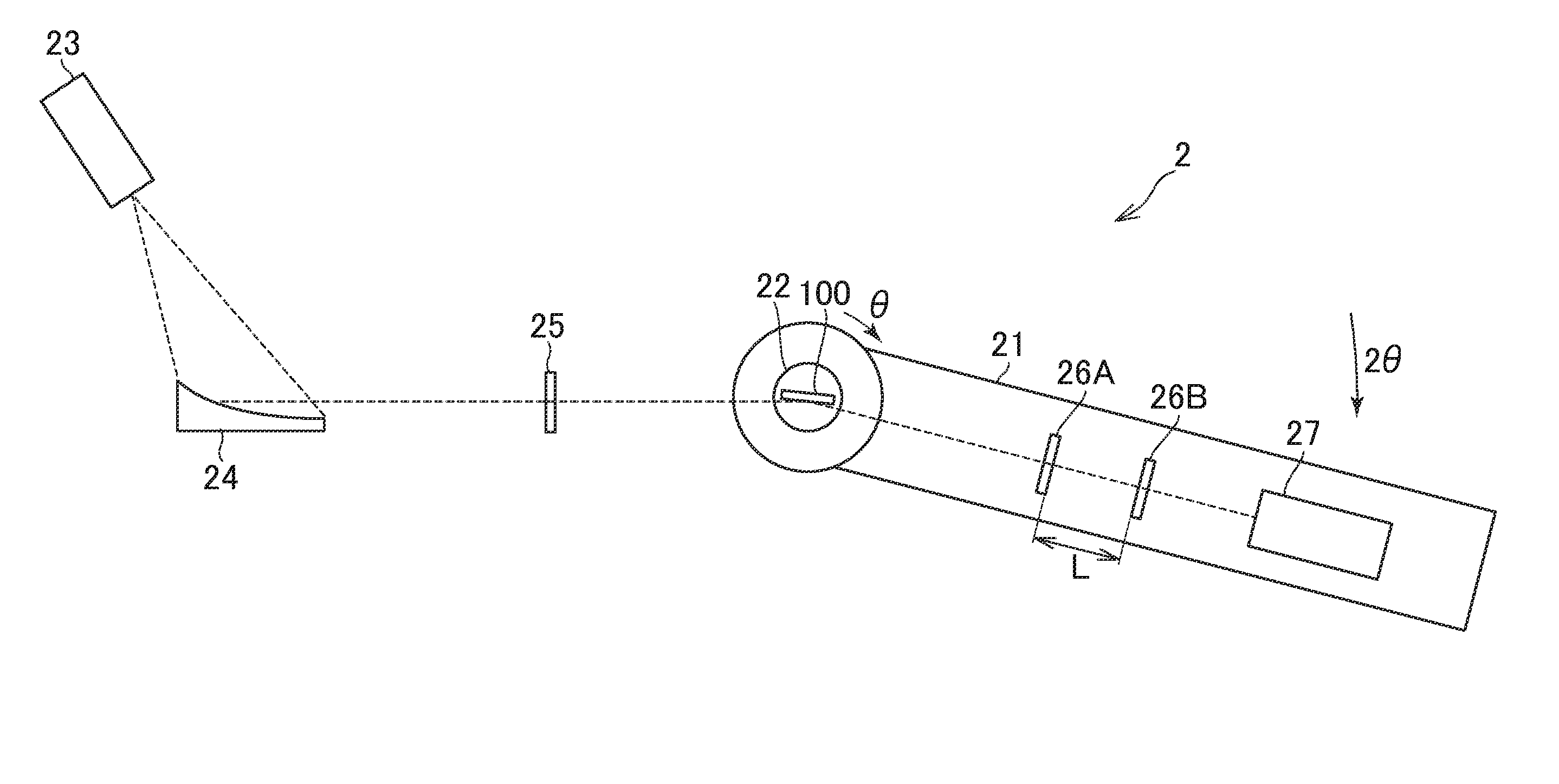

Provided is an operation guide system for an X-ray analysis, including: a sample information acquisition portion for acquiring sample information on a sample to be measured for a predetermined analysis purpose with an X-ray measuring unit; a measurement condition acquisition portion for acquiring a plurality of measurement conditions different from one another; a virtual result acquisition portion for subjecting the sample information to simulations respectively based on the plurality of measurement conditions, to thereby acquire a plurality of virtual measurement results of measurements for the predetermined analysis purpose; and a comparison result output portion for outputting, as comparison results, at least two virtual measurement results among the plurality of virtual measurement results and at least two of the plurality of measurement conditions respectively corresponding to the at least two virtual measurement results.
First Claim
Other Claims data not available
