Door strike having a kicker and an adjustable dead latch release
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2020
Grant Date -
Feb 9, 2017
app pub date -
Oct 24, 2016
filing date -
Aug 10, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

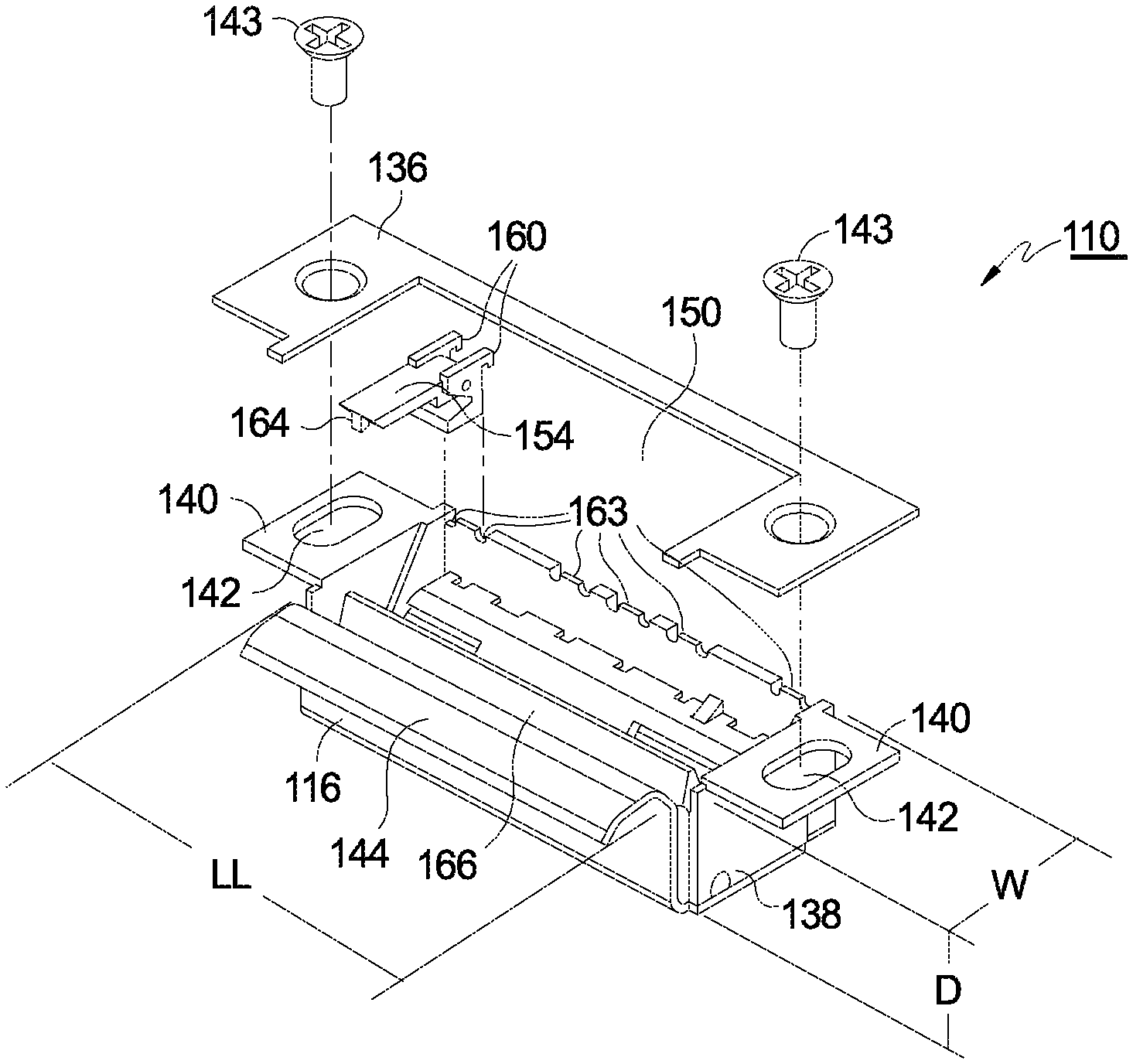

An actuator-controlled strike comprising a housing disposable within a doorframe and including a cavity for a spring latch and a dead latch of a mortise-type lockset. A keeper is pivotably mounted within the chamber to engage the spring latch. A pivotably mounted kicker cooperates with the keeper. A pivotably mounted dead latch release is supported by the keeper when the spring latch is within the strike. The keeper is released by the actuator and rotates into a position to ramp the spring latch out of the strike, also allowing the dead latch release to release the dead latch into the cavity, allowing the spring latch to be ramped out of the strike. Pivoting the keeper causes the kicker to urge the spring latch onto an exit ramp on a face of the keeper. The dead latch release can be installed in a plurality of different locations in the housing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E05B Class
- 1003 Applications Filed
- 767 Patents Issued To-Date
- 76.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 14, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2031 |
