BICYCLE RACK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 9, 2017
app pub date -
Apr 22, 2015
filing date -
Apr 23, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

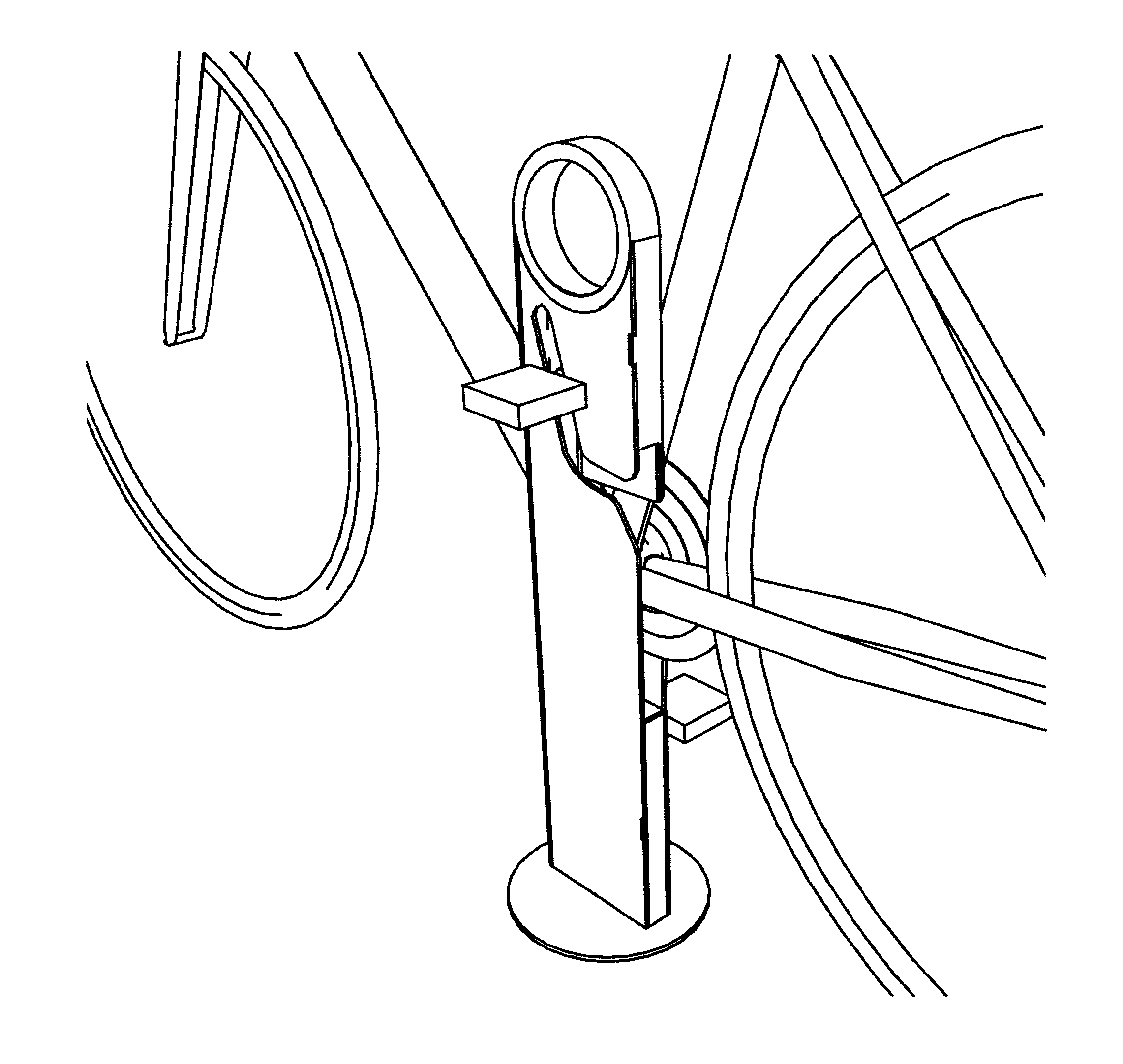

A bicycle rack including a first opening which is dimensioned to receive a pedal axle of a bicycle and which first opening is elongated in shape and arranged to be at least substantially on a vertical plane, and a first end of the first opening is arranged to open sideways on the plane and its second end is arranged to open upward of the first end; a mating surface that is arranged at a first distance from the first opening and at least partly at the first opening, the first distance being dimensioned to receive a top part of the pedal crank of the bicycle; a boss space that is arranged below the mating surface to open in the same direction as the first end of the first opening, the boss space being dimensioned to receive a bottom part of the pedal crank.
First Claim
Other Claims data not available
