Drainage system and vacuum pump for intrauterine vacuum therapy
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 28, 2020
Grant Date -
Feb 9, 2017
app pub date -
Apr 10, 2015
filing date -
Apr 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

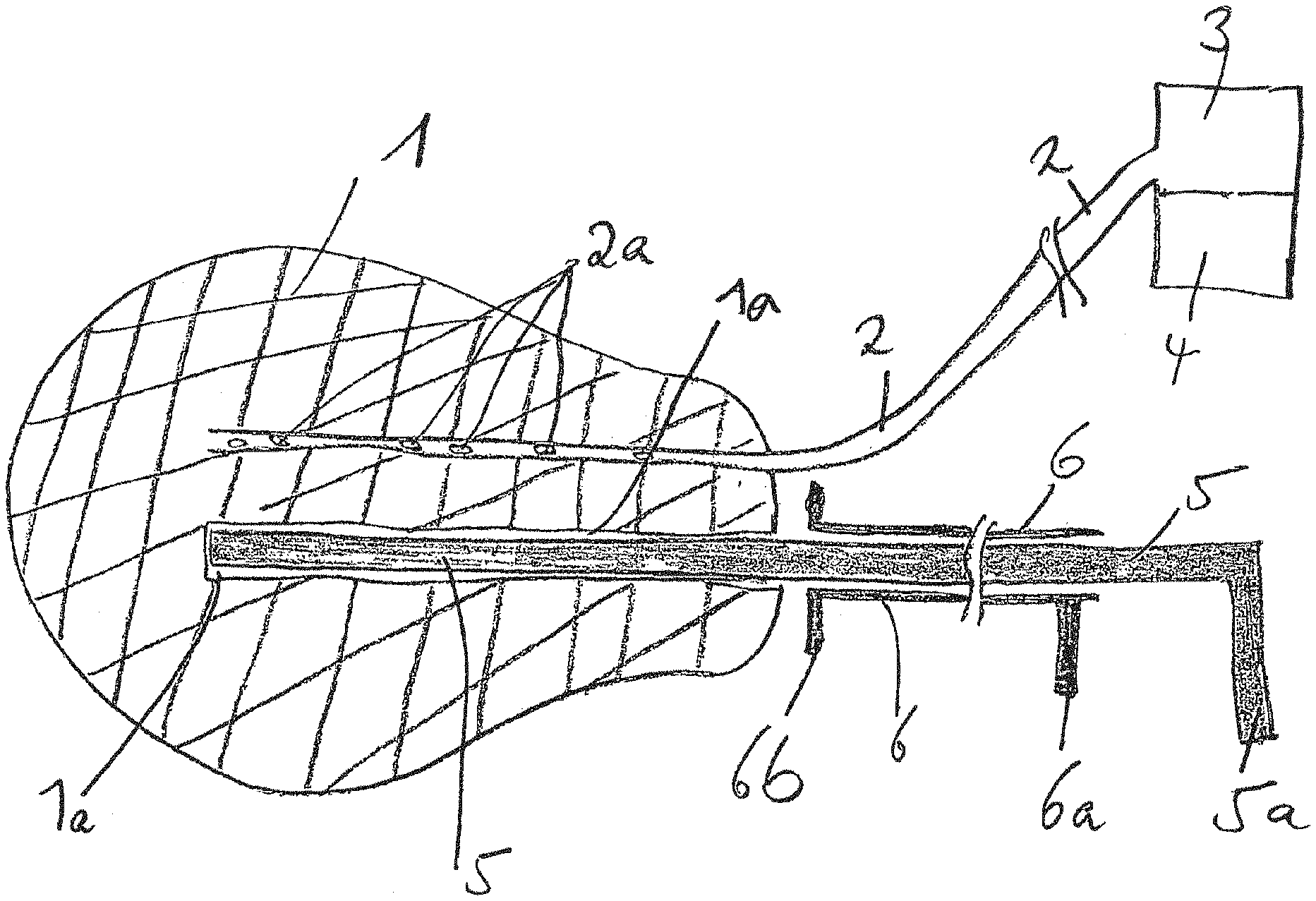

A device for intrauterine vacuum therapy includes a pear-shaped fluid-collecting element and a fluid-communicating element. The fluid-collecting element defines an inlet opening at the proximal end and a tubular cavity for receiving a removable guide-rod during transvaginal insertion into a uterine cavity. The fluid-communicating element has a perforated distal end fixed within the fluid-collecting element outside the tubular cavity and has a proximal end adapted for connection to a vacuum-generating system. A method of treating an intrauterine wound or infection includes transvaginally inserting a drain into a uterine cavity and applying a negative pressure to the drain such that the uterus collapses and the inner wall is aspirated against the drain.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A61B Class
- 39.73 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 28, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 28, 2032 |
