SYSTEMS AND METHODS FOR DETERMINING VELOCITY AND FLUX OF A GAS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 11, 2016
filing date -
Aug 19, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

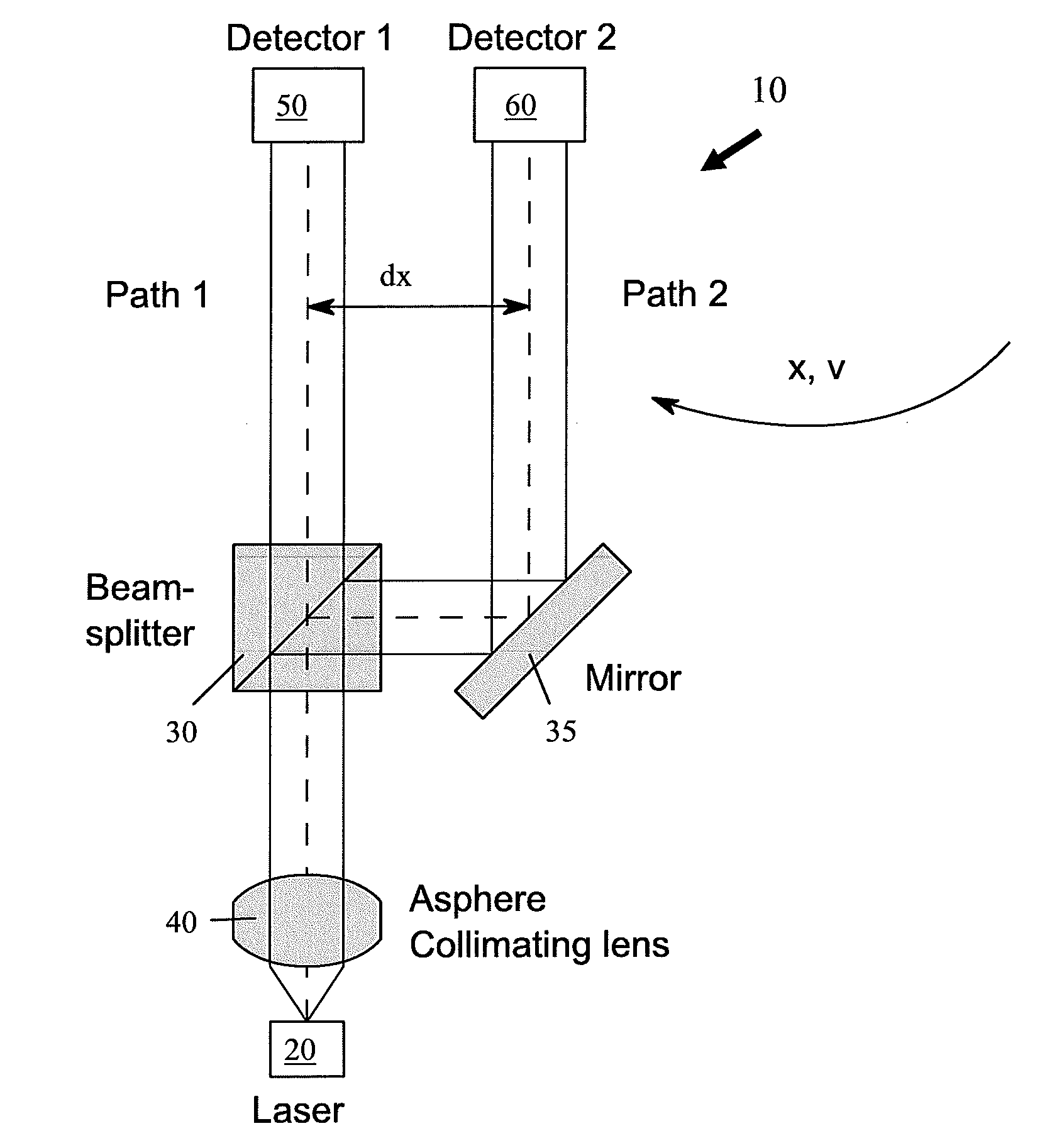

Systems and methods for determining gas velocity based on phase differences of signals from two or more interaction paths in a gas analyzer system. A laser source, which can provide access to an absorption gas line, is expanded, or is split into two or more beams. These beams can be used to create two (or more) parallel sampling paths separated by a known distance. Gas travelling in the plane of the two beams of light will pass through the optical paths at two (or more) different times creating very similar signals that will be out of phase with each other. The amount of phase difference will be inversely proportional to the velocity of the gas.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2016028912 | Aug 19, 2015 |
| US | A1 | US20160077122 | Aug 19, 2015 |
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01N Class
- 33.94 % this patent is cited more than
- 8 Age
