Power generation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Grant Date -
Feb 2, 2017
app pub date -
Oct 11, 2016
filing date -
Apr 11, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

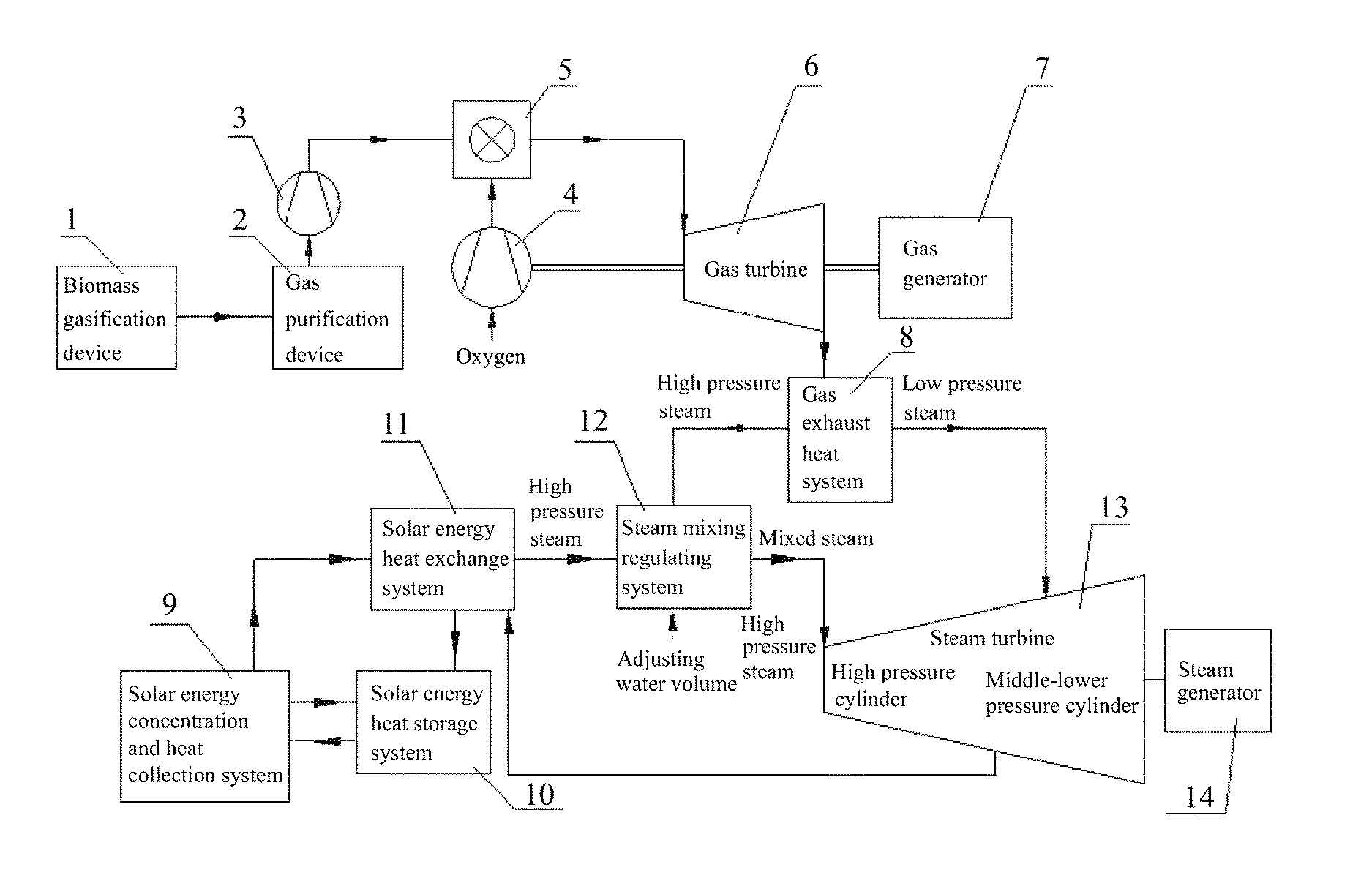

A power generation system, including: a solar energy concentration system, a biomass gasification device, a gas-powered generator, a steam turbine, a steam-powered generator. The solar energy concentration system is connected to a solar energy heat exchange system. The biomass gasification device is connected to the gas-powered generator. The gas outlet of the gas turbine is connected to the gas exhaust heat system. The second steam outlet of the gas exhaust heat system is connected to the second and the third cylinders of the steam turbine. The first steam outlet of the gas exhaust heat system and the steam outlet of the solar energy heat exchange system are connected to a steam mixing regulating system. The mixed steam outlet of the steam mixing regulating system is connected to the first cylinder of the steam turbine.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | B | CN103912464 | Apr 11, 2014 |
| KR | B1 | KR101821315 | Feb 06, 2015 |
| AU | B2 | AU2015245828 | Feb 06, 2015 |
| JP | B2 | JP6340472 | Feb 06, 2015 |
| CA | C | CA2945379 | Feb 06, 2015 |
| WO | A1 | WO2015154584 | Feb 06, 2015 |
| EP | A1 | EP3130779 | Feb 06, 2015 |
| RU | C1 | RU2643905 | Feb 06, 2015 |
International Classification(s)
- H02K:DYNAMO-ELECTRIC MACHINES
- B60K:ARRANGEMENT OR MOUNTING OF PROPULSION UNITS OR OF ....
- F01K:STEAM ENGINE PLANTS; STEAM ACCUMULATORS; ENGINE PL....
- H02P:CONTROL OR REGULATION OF ELECTRIC MOTORS, GENERATO....
- F02C:GAS-TURBINE PLANTS; AIR INTAKES FOR JET-PROPULSION....
- F01D:NON-POSITIVE-DISPLACEMENT MACHINES OR ENGINES, e.g....
- F03G:SPRING, WEIGHT, INERTIA, OR LIKE MOTORS; MECHANICA....
- B60L:ELECTRIC EQUIPMENT OR PROPULSION OF ELECTRICALLY-P....
- F02G:HOT-GAS OR COMBUSTION- PRODUCT POSITIVE-DISPLaCEME....
- 2016 Application Filing Year
- H02K Class
- 3008 Applications Filed
- 2169 Patents Issued To-Date
- 72.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
