Front airbag
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Feb 3, 2015
filing date -
Feb 6, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

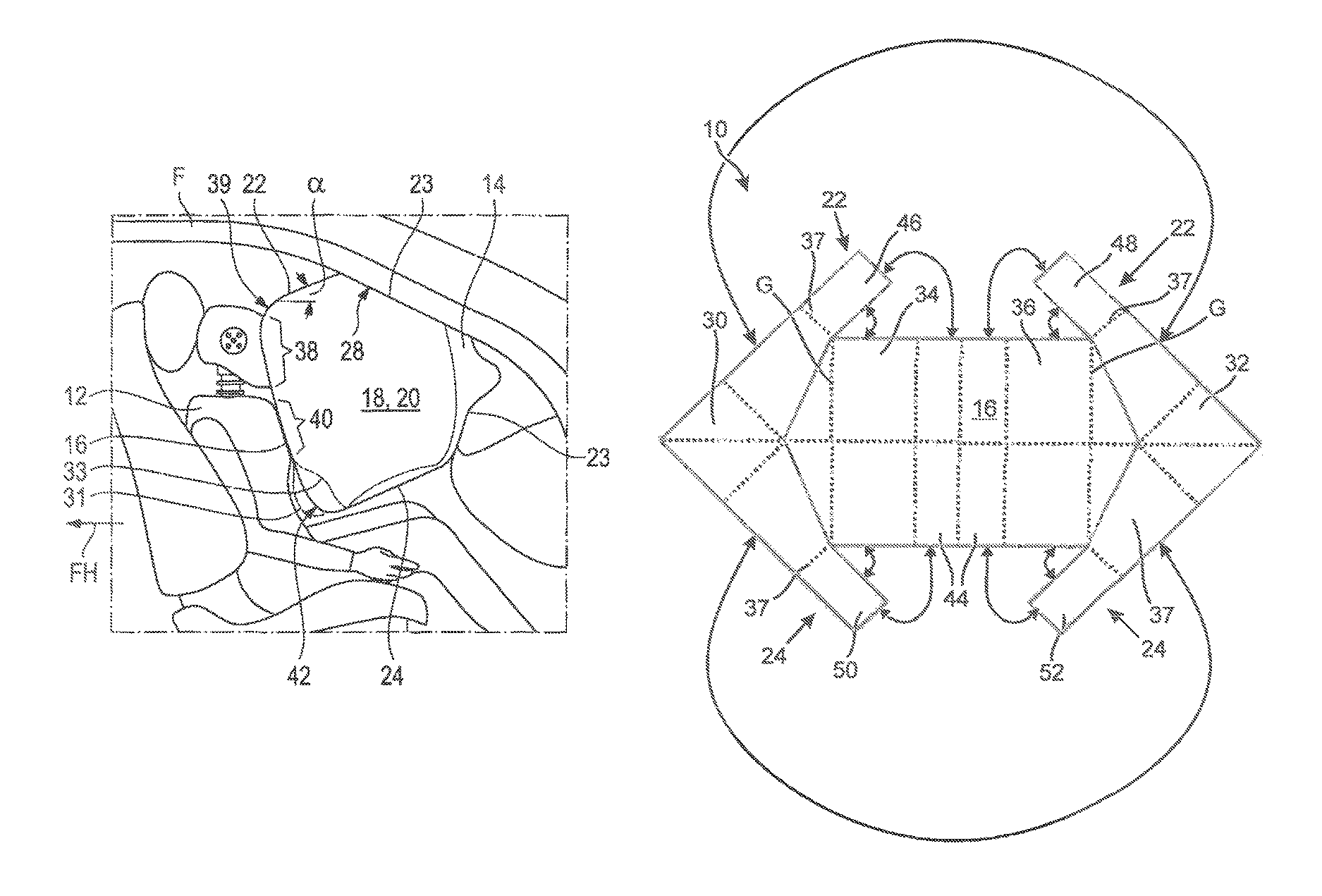

A front airbag (10) comprising a cut including two substantially triangular side portions (30, 32) facing toward each other by a respective side which form at least the side walls (18, 20) and at least portions of the upper and lower walls (22, 24) as well as a central portion (44) located between the side portions (30, 32) which is adjacent to the sides of the triangular side portions (30, 32) facing each other and forms at least the front wall (16), wherein in the area of the side walls (18, 20) a respective transitional portion (34, 36) is present between a side portion (30, 32) and the central portion (44), wherein at least one connecting portion (46, 48, 50, 52) projecting from the central portion (44) or the side portions (30, 32) in an outspread state of the cut is provided for the transitional areas (34, 36) associated with the lower and/or upper wall (22, 24) and wherein the connecting portion (46, 48, 50, 52) of the finished front airbag (10) is connected both to the central portion (44) and to at least one side portion (30, 32).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60R Class
- 3620 Applications Filed
- 2846 Patents Issued To-Date
- 78.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60R Class
- 21.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
