Activation device for a parking brake
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Jan 30, 2015
filing date -
Feb 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

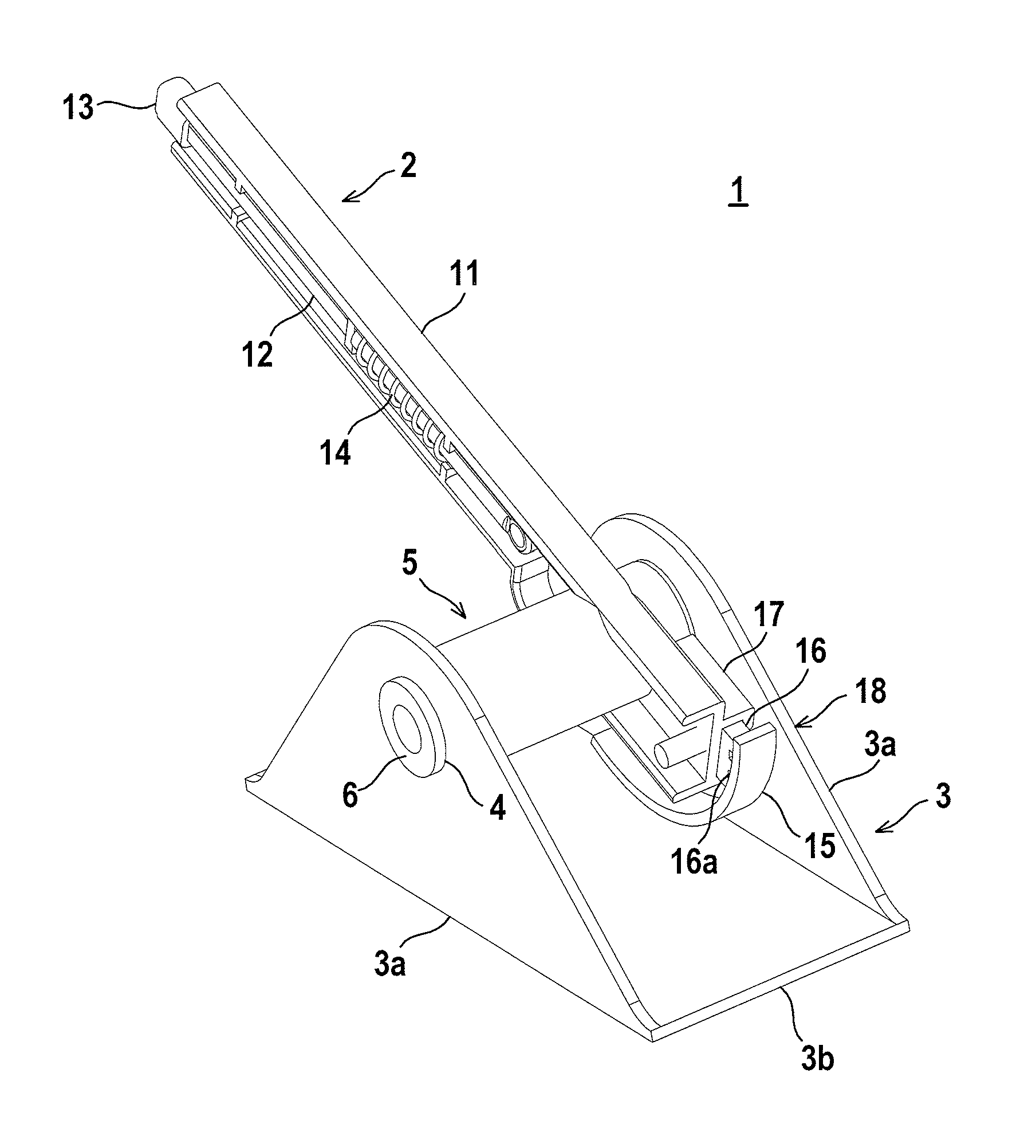

The invention relates to an activation device (1) for a parking brake and is comprised of a bearing block (3), a parking brake lever (2) and a swivel bearing. The parking brake lever (2) is swivel-mounted on the bearing block (3) via the swivel bearing. The parking brake lever (2) can be fixed in place in a swivel position on the bearing block (3) with a blocking device. The swivel bearing is formed by an axle receptacle (5) and two inserts (6) allocated to it; the axle receptacle (5) is made of a die-cast part and has a limiting element (7). To form the swivel bearing, the inserts (6) are fixed in position at opposite ends of the axle receptacle (5). The inserts are in an operative connection with the limiting element (7), connected to it or connected to one another.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60T Class
- 904 Applications Filed
- 798 Patents Issued To-Date
- 88.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60T Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
