Hydraulic machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2020
Grant Date -
Dec 29, 2016
app pub date -
Jun 21, 2016
filing date -
Jun 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

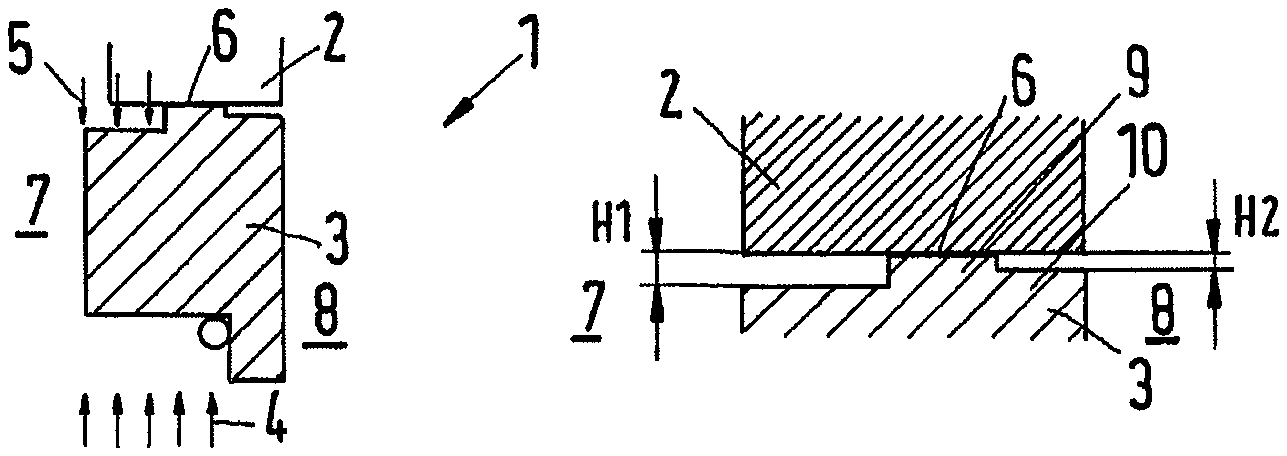

A hydraulic machine is described having a first part (2) and a second part (3) moveable relative to said first part (3), one of said first part (2) and said second part (3) having a first land (9) resting against the other one of said second part (3) and said first part (2), having a predetermined first height (H1), and being arranged between a high pressure area (7) and a low pressure area (8). Such a machine should have a long working life. To this end a second land (10) having a predetermined second height (H2) smaller than said first height (H1) is located adjacent to said first land (9).
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- F04B Class
- 1155 Applications Filed
- 883 Patents Issued To-Date
- 76.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 14, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2032 |
