Reel mower with reel cutting units having grass collecting baskets with deflectable bottom portions responsive to movement of the cutting units
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Jun 27, 2015
filing date -
Jun 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

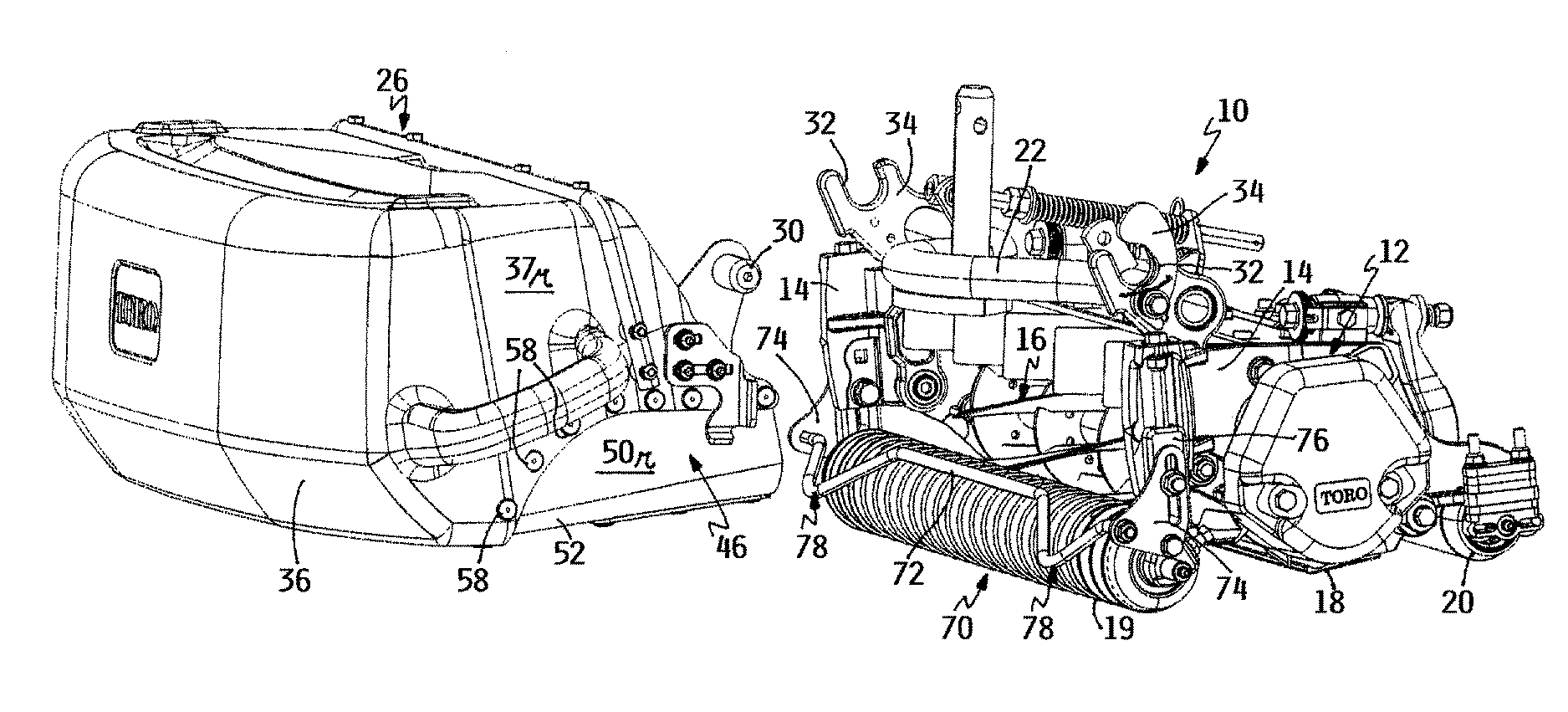

A reel mower has a traction frame which carries one or more reel cutting units. Each cutting unit has a grass basket associated therewith for receiving and collecting grass clippings generated by operation of the cutting unit. Each grass basket has a forward portion of a bottom wall thereof formed by a piece of flexible material. An actuator is operatively engaged with the flexible material piece for lifting a front end of the flexible material piece upwardly relative to a rear end of the flexible material piece in response to changes in orientation between the cutting unit and the grass basket during operation of the mower to incline the flexible material piece and thereby promote the flow of grass clippings down the so inclined flexible material piece to more fully fill the grass basket.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- A01D Class
- 543 Applications Filed
- 471 Patents Issued To-Date
- 86.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A01D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
