Buck converter with changeable relationship between output voltage and duty cycle, and buck converting apparatus using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Oct 13, 2015
filing date -
Jun 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

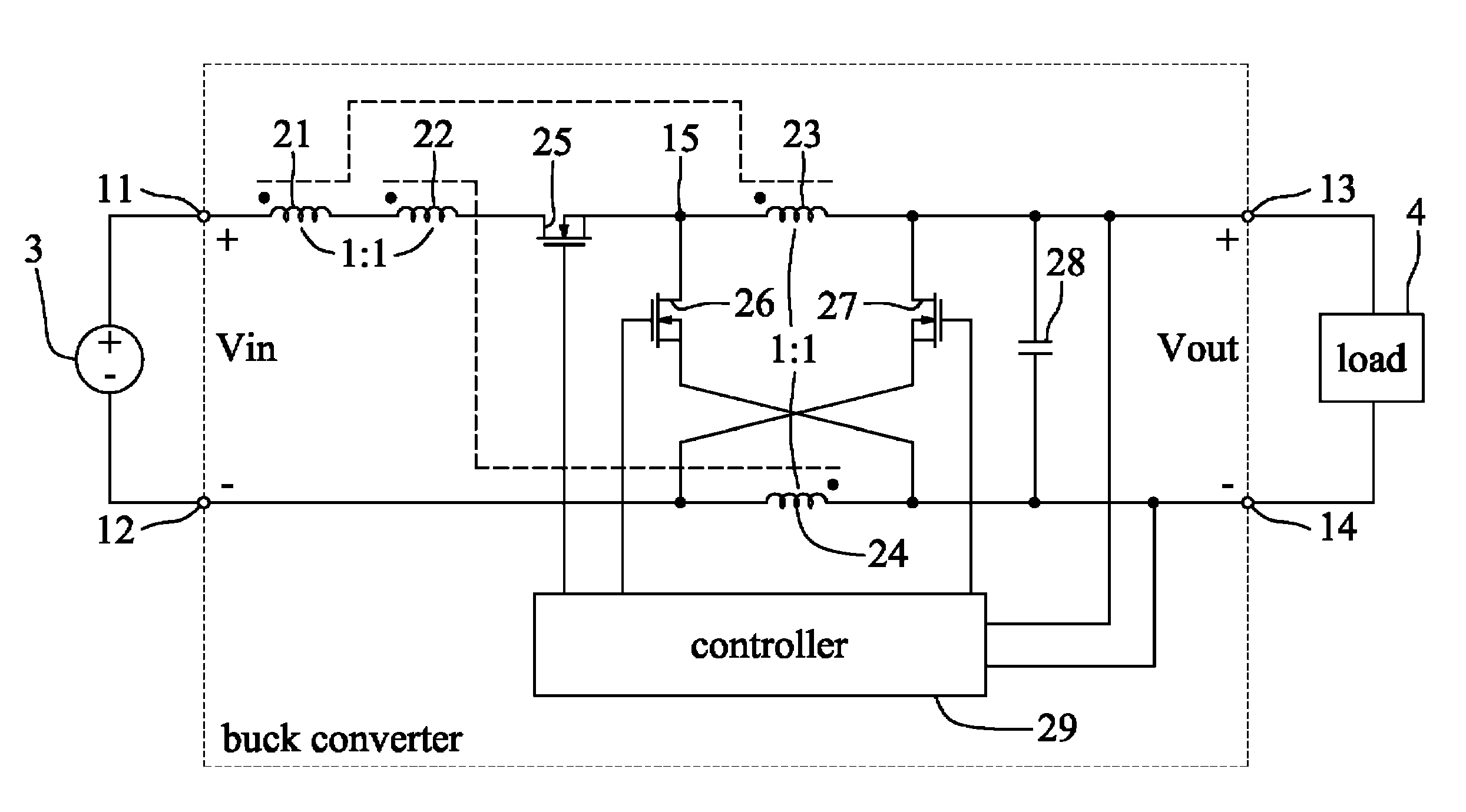

A buck converter includes: a first input terminal; a second input terminal; a first output terminal; a second output terminal; an internal node; a first inductor, a second inductor and a main switch connected in series between the first input terminal and the internal node; a third inductor connected between the internal node and the first output terminal; a fourth inductor connected between the second input terminal and the second output terminal; a first auxiliary switch connected between the internal node and the second output terminal; and a second auxiliary switch connected between the second input terminal and the first output terminal.
