METHOD AND SYSTEM FOR CARRYING OUT AN EXOTHERMIC GAS PHASE REACTION ON A HETEROGENEOUS PARTICULATE CATALYST
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 22, 2016
app pub date -
Jun 16, 2014
filing date -
Jun 17, 2013
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

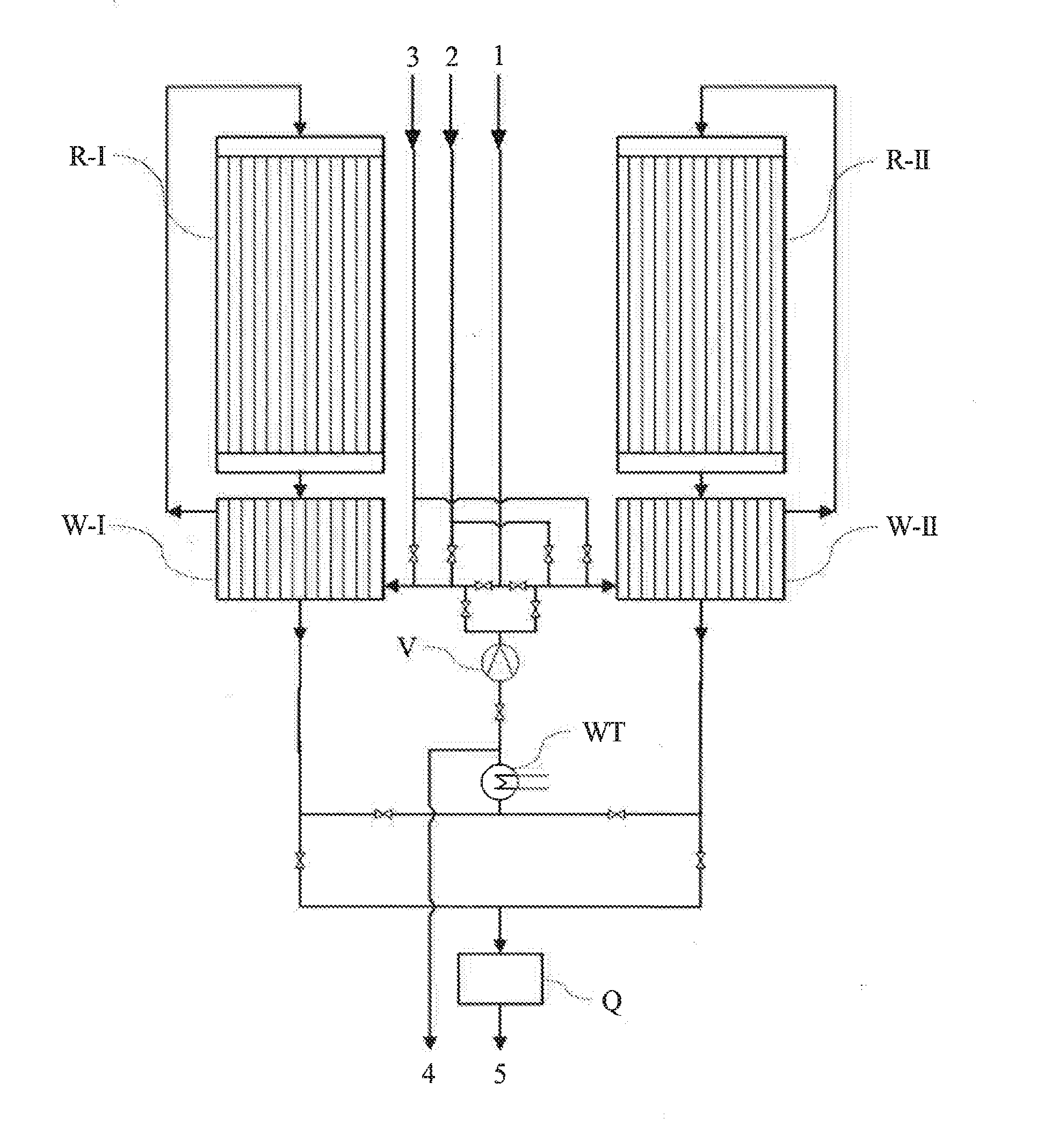

The invention relates to a method for producing 1,3 butadien by means of the oxidative dehydration of n-butenes on a heterogenous particulate multimetal oxide catalyst which contains molybdenum as the active compound and at least one other metal and which is filled into the contact tubes (KR) of two or more tube bundle reactors (R-I, R-II), wherein a heat transfer medium flows around the intermediate space between the contact tubes (KR) of the two or more tube bundle reactors (R-I, R-II). The method includes a production mode and a regeneration mode which are carried out in an alternating manner. In the production mode, an n-butene-containing feed flow is mixed with an oxygen-containing gas flow and conducted as a supply flow (1) over the heterogenous particulate multimetal oxide catalyst filled into the contact tubes (KR) of the two or more tube bundle reactors (R-I, R-II), and the heat transfer medium absorbs the released reaction heat, minus the heat quantity used to heat the supply flow (1) to the reaction temperature in the production mode, by means of an indirect heat exchange and completely or partly dispenses the reaction heat onto a secondary heat transfer medium (H2Oliq) in an external cooler (SBK). In the regeneration mode, the heterogenous particulate multimetal oxide catalyst is regenerated by conducting an oxygen-containing gas mixture (3) over the catalyst and burning off the deposits accumulated on the heterogenous particulate multimetal oxide catalyst. The invention is characterized in that the two or more tube bundle reactors (R-I, R-II) have a single heat transfer medium circuit and as many of the two or more tube bundle reactors (R-I, R-II) as necessary are operated constantly in the production mode so that the released reaction heat, minus the heat quantity used to heat the supply flow (1) to the reaction temperature in the production mode, suffices to keep the temperature of the heat transfer medium in the intermediate spaces between the content tubes (KR) of all the tube bundle reactors (R-I, R-II) at a constant level with a variation range of maximally +/−10 DEG C.
First Claim
all claims..Other Claims data not available
Family
Country | kind | publication No. | Filing Date | Type | Sub-Type |
---|---|---|---|---|---|
EP | A1 | EP3010634 | Jun 16, 2014 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
APPLICATION PUBLISHED WITH SEARCH REPORT | VERFAHREN UND ANLAGE ZUR DURCHFÜHRUNG EINER EXOTHERMEN GASPHASENREAKTION AN EINEM HETEROGENEN PARTIKELFÖRMIGEN KATALYSATOR | Apr 27, 2016 | |||
JP | A | JP2016530984 | Jun 16, 2014 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
Published unexamined patent application | 不均一粒子触媒に気相発熱反応を行うためのシステム及び方法 | Oct 06, 2016 | |||
CN | A | CN105307765 | Jun 16, 2014 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
UNEXAMINED APPLICATION FOR A PATENT FOR INV. | Method and system for carrying out an exothermic gas phase reaction on a heterogeneous particulate catalyst | Feb 03, 2016 | |||
KR | A | KR20160021207 | Jun 16, 2014 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
UNEXAMINED PATENT APPLICATION | 불균질 미립자 촉매 상에서 발열 기체 상 반응을 수행하는 방법 및 시스템 | Feb 24, 2016 | |||
WO | A1 | WO2014202503 | Jun 16, 2014 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
INTERNATIONAL APPLICATION PUBLISHED WITH INTERNATIONAL SEARCH REPORT | VERFAHREN UND ANLAGE ZUR DURCHFÜHRUNG EINER EXOTHERMEN GASPHASENREAKTION AN EINEM HETEROGENEN PARTIKELFÖRMIGEN KATALYSATOR | Dec 24, 2014 |
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
BASF SE | LUDWIGSHAFEN GERMANY |
International Classification(s)

- 2014 Application Filing Year
- C01B Class
- 1554 Applications Filed
- 1323 Patents Issued To-Date
- 85.14 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
AVERLANT, Gauthier Luc Maurice | Darmstadt, DE | 10 | 41 |
# of filed Patents : 10 Total Citations : 41 | |||
OLBERT, Gerhard | Dossenheim, DE | 68 | 336 |
# of filed Patents : 68 Total Citations : 336 |
