CONNECTOR, AND CONNECTION MECHANISM OF FLAT CIRCUIT BODY AND CONNECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 15, 2016
app pub date -
Jun 7, 2016
filing date -
Jun 12, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

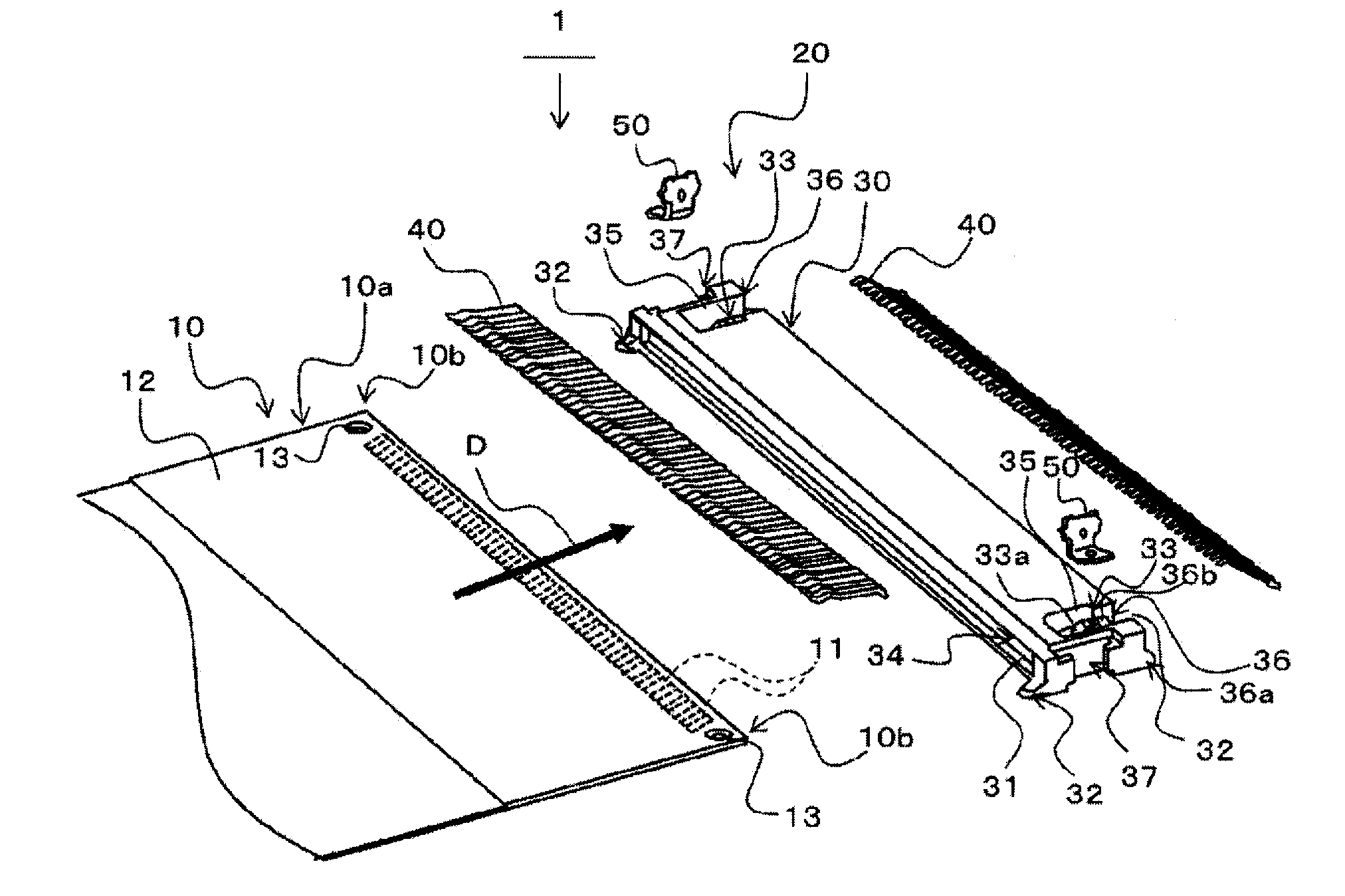

A flat circuit body has engagement holes formed in an end portion. A connector housing includes: engagement protrusions which protrude to engage with the engagement holes and which are formed with a guide portions formed to guide the engagement holes to top portions of the engagement protrusions when the flat circuit body is inserted; a movement regulating portion which regulates movement of the flat circuit body such that the engagement holes are positioned to engage with the engagement protrusions; and a circuit body escape portion in which peripheral portions of the engagement holes are bendable so as to escape from a movement regulating range defined by the movement regulating portion such that engagement between the engagement holes and the engagement protrusions are established and released.
