SENSOR AND MANUFACTURING METHOD OF SENSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 15, 2016
app pub date -
Sep 4, 2015
filing date -
Jun 10, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

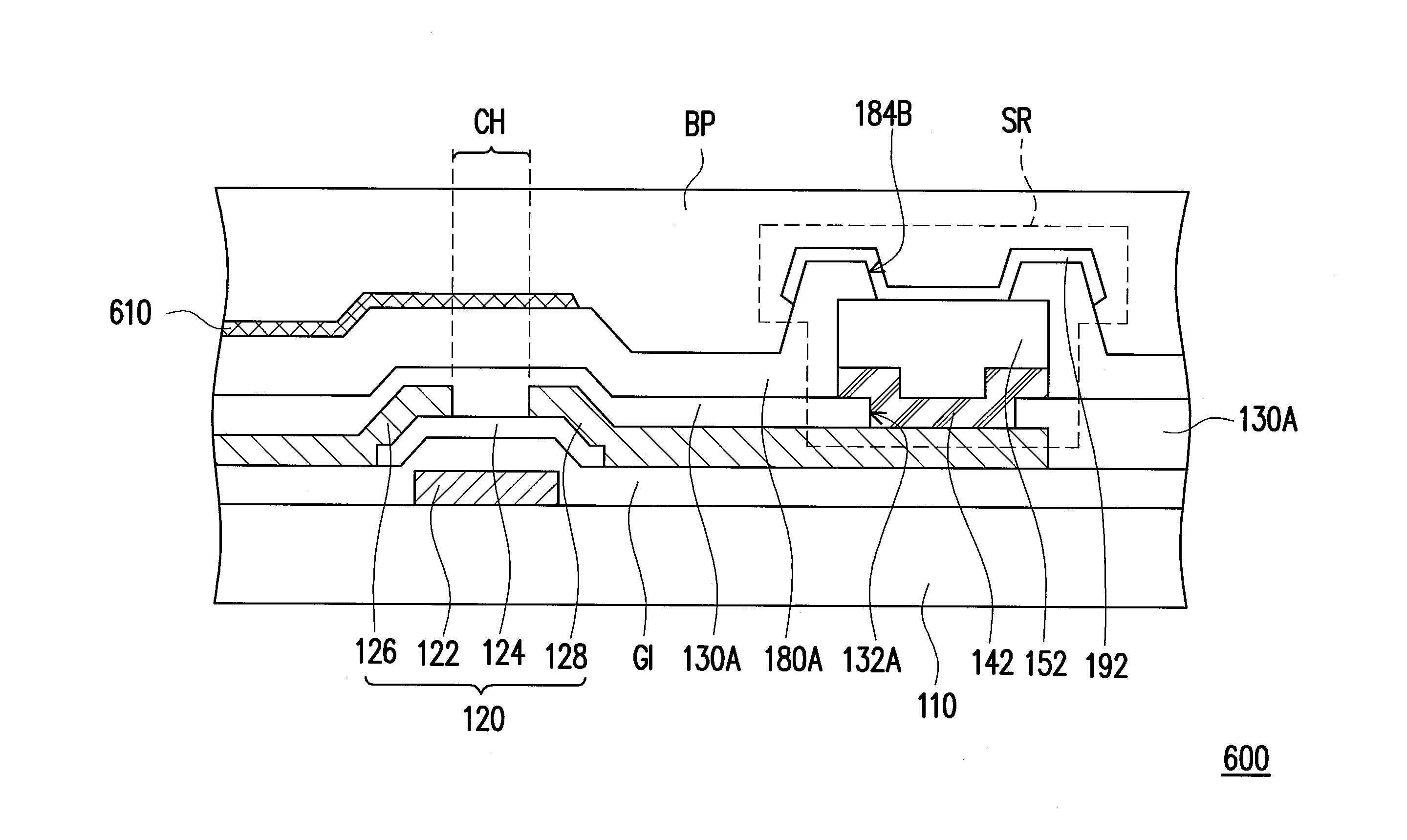

A manufacturing method of a sensor including the following steps and a sensor are provided. An active device and a first insulation layer covering the active device are formed on a substrate. The first insulation layer has a first opening exposing a portion of the active device. A blanket conductive layer is formed on the first insulation layer using a conductive material. The blanket conductive layer is connected to the active device through the first opening. A photoelectric conversion material layer is formed on the blanket conductive layer. A first photoresist pattern formed on photoelectric conversion material layer is served as a mask for patterning the photoelectric conversion material layer into a photoelectric conversion unit. The blanket conductive layer is patterned to form a first electrode disposed in the first opening and electrically connecting the photoelectric conversion unit to the active device.
