METHOD OF FABRICATING INTEGRATED DIGITAL X-RAY IMAGE SENSOR, AND INTEGRATED DIGITAL X-RAY IMAGE SENSOR USING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 15, 2016
app pub date -
Jul 21, 2015
filing date -
Jun 9, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

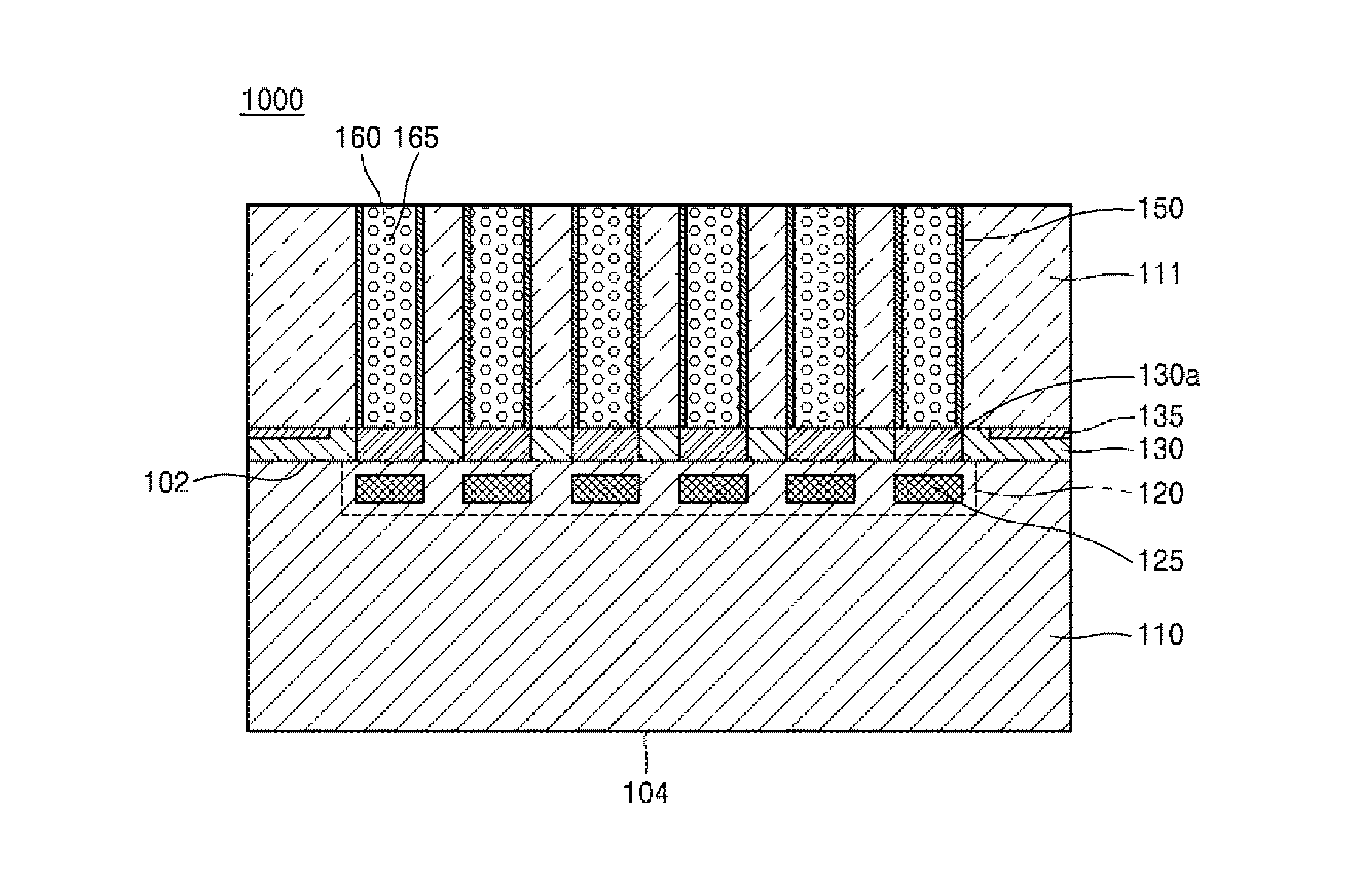

Provided are a method of fabricating an integrated digital X-ray image sensor, the method including forming a plurality of photodiode units in at least parts of a substrate having a first surface and a second surface, forming a mold on the first surface to correspond to the photodiode units, forming a microstructure having a convex part and concave parts by etching at least parts of the mold by a predetermined depth, and forming a scintillator capable of converting X-rays to a wavelength band detectable by the photodiode units, in the concave parts of the microstructure, or including forming a plurality of photodiode units in at least parts of a substrate having a first surface and a second surface, forming a microstructure having a convex part and concave parts by etching at least parts of the second surface by a predetermined depth to correspond to the photodiode units, and forming a scintillator capable of converting X-rays to a wavelength band detectable by the photodiode units, in the concave parts of the microstructure, and an integrated digital X-ray image sensor using the same.
