IGNITION SYSTEM WITH SPARK DISCHARGE TRUNCATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 15, 2016
app pub date -
Jun 9, 2015
filing date -
Jun 9, 2015
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

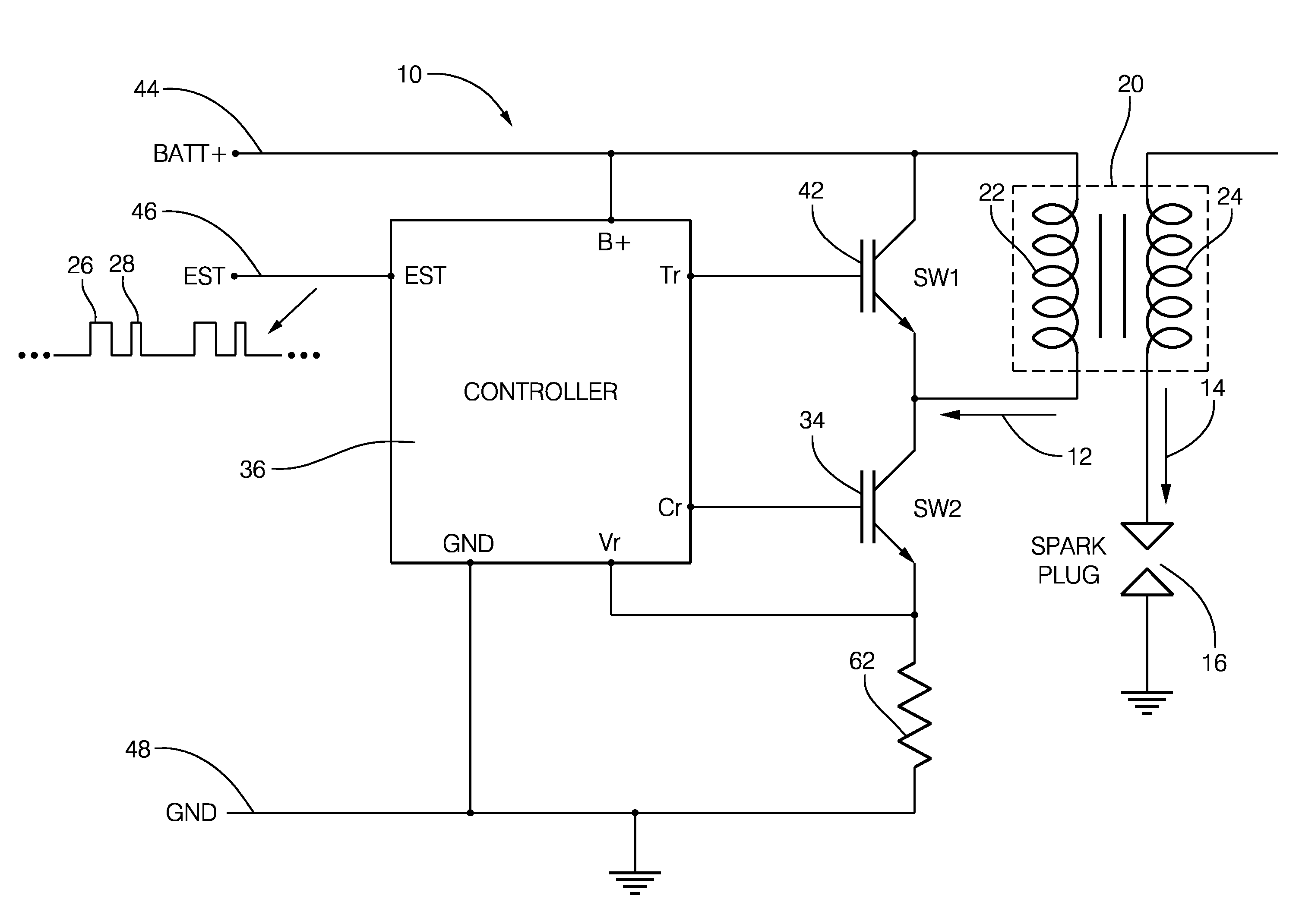

An ignition system for a spark ignition internal combustion engine includes a transformer, a switching device, a spark-plug, and a controller. The switching-device is operable to an off-state, an on-state, and a linear-state to control a primary current through a primary coil and a secondary current through a secondary coil. The controller is configured to receive a single control-signal that includes a spark-control portion followed by a snubbing-control portion, and operate the switching-device based on the single control-signal. The controller operates the switching device from the off-state to the on-state and back to the off-state in response to the spark-control portion, whereby the secondary current is sufficient for the spark-plug to generate a spark, and operates the switching-device from the off-state to the on-state followed by the linear-state in response to the snubbing-control portion, whereby the secondary current is suppressed such that the spark-plug does not generate a spark.
First Claim
all claims..Other Claims data not available
Family
- No Family data available.
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
DELPHI TECHNOLOGIES INC | LEGAL STAFF - MAIL CODE 480-410-202 P O BOX 5052 TROY MI |
International Classification(s)

- 2015 Application Filing Year
- F02P Class
- 266 Applications Filed
- 213 Patents Issued To-Date
- 80.08 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
HAMER, COLIN | NOBLESVILLE, US | 51 | 222 |
# of filed Patents : 51 Total Citations : 222 | |||
SKINNER, ALBERT A | WATERFORD, US | 20 | 87 |
# of filed Patents : 20 Total Citations : 87 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 9 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 15, 2028 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
