ROOF RACK CROSSBAR ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 15, 2016
app pub date -
Jun 13, 2016
filing date -
Jun 11, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

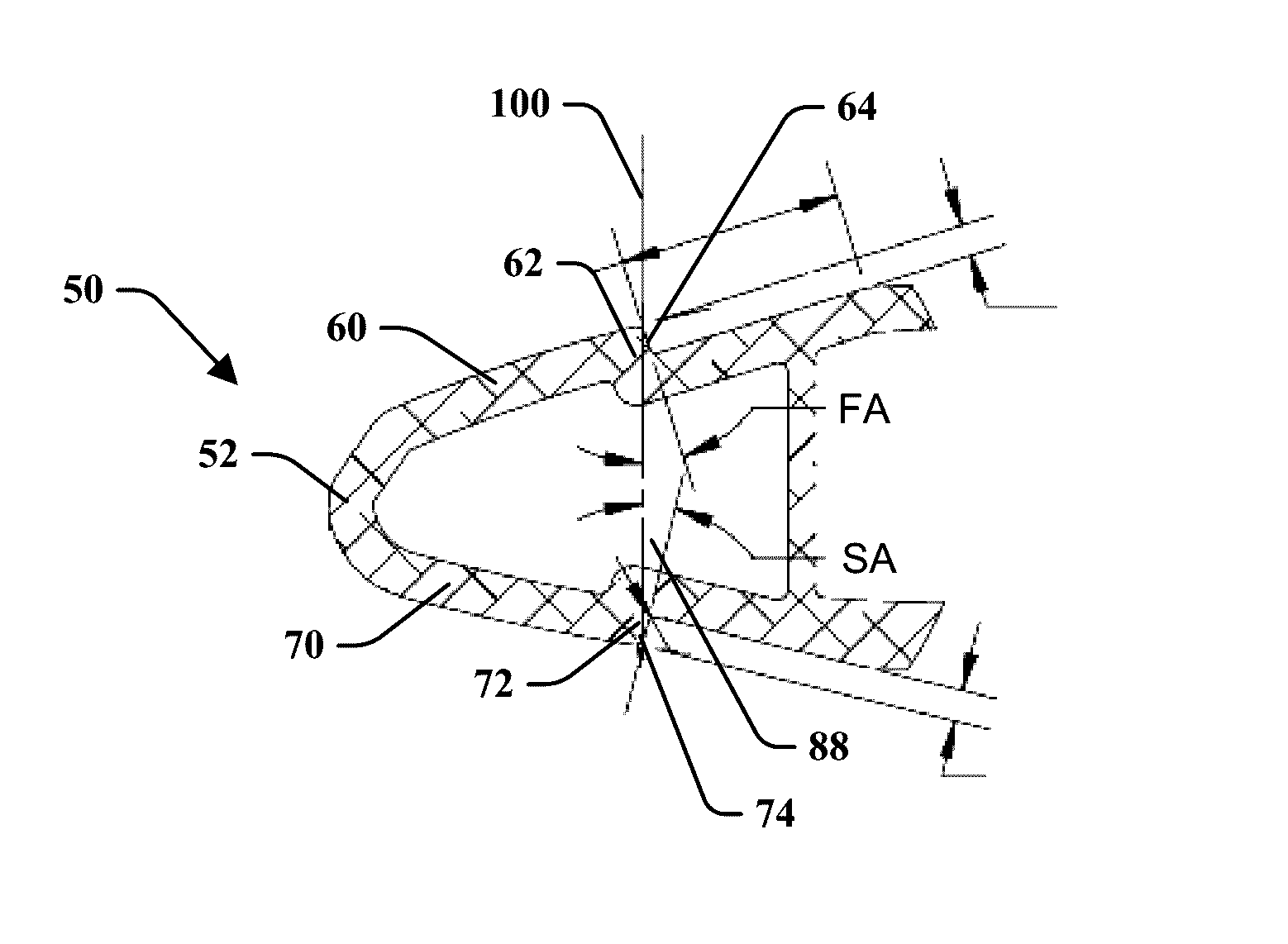

A crossbar assembly for a roof rack configured to be selectively attached to a vehicle, the crossbar assembly is shown and described. The crossbar includes a body having a length and cross-sectional profile with a generally aerofoil shape. The cross-sectional profile may include a base portion attached to a nose portion. The nose portion may include a leading edge having a rounded profile. A first plane surface may extend rearwardly from the leading edge at an upward angle and terminate at a first shoulder. A second plane surface may extend rearwardly from the leading edge at a downward angle and terminate at a second shoulder. The crossbar may be configured to be mounted to an associated vehicle and reduce wind noise across the nose portion and base portion of the body.
First Claim
Other Claims data not available
