Frame and trim rings for underbed hitch mounting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2020
Grant Date -
Dec 15, 2016
app pub date -
Jun 13, 2016
filing date -
Jun 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

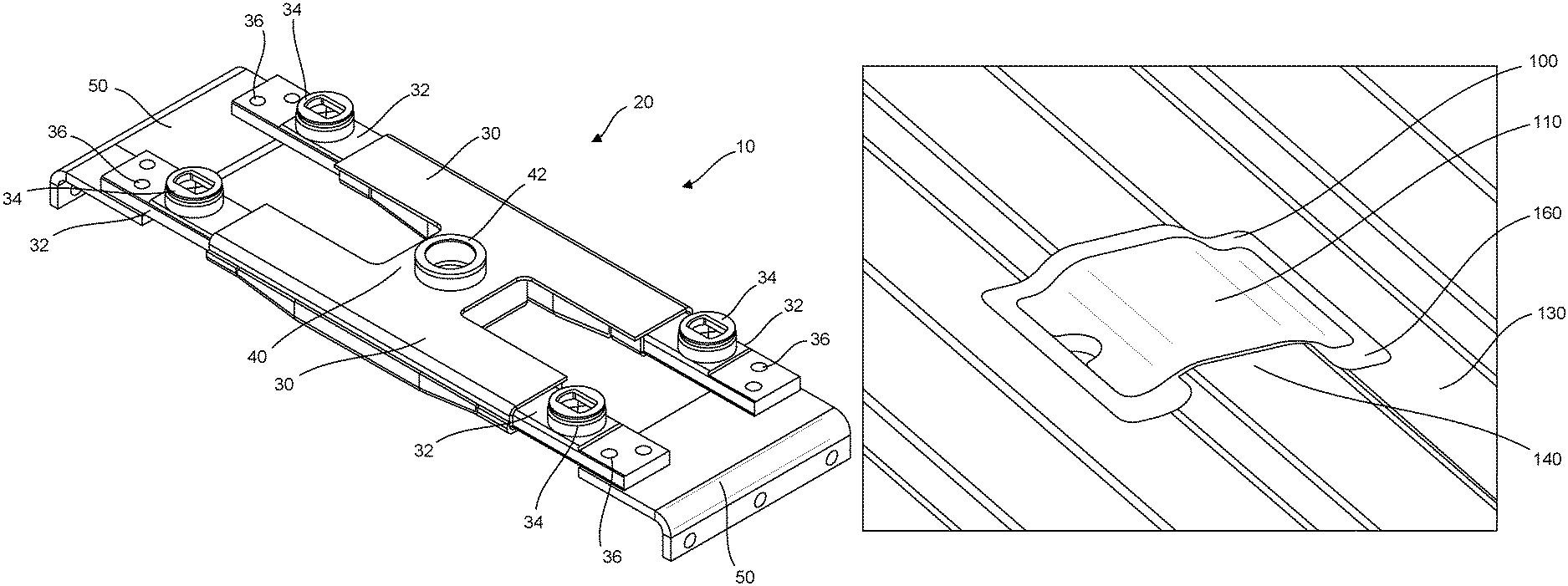

The mounting system may be utilized for towing vehicles wherein the mounting system may selectively accommodate either a fifth wheel hitch or a gooseneck hitch. The mounting system may include a structural frame member including at least one rail capable of being connected to a vehicle frame, wherein the rail includes at least one socket. The socket may be engaged with a receiving member, wherein the receiving member may be engaged with a leg of a fifth wheel hitch. A mid rail may be connected to the rails and may include a hitch ball socket that is capable of engagement with a hitch. Also provided is an underbed hitch mounting system having at least one socket and receiving member exposed above a bed of a vehicle. The system includes trim and ring brackets configured to cover the exposed socket and receiving members along the bed of the vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60D Class
- 205 Applications Filed
- 162 Patents Issued To-Date
- 79.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60D Class
- 43.51 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 8, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2032 |
