APPARATUS FOR INSERTING DOCUMENTS INTO ENVELOPES AND ASSOCIATED METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 26, 2016
filing date -
Nov 13, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

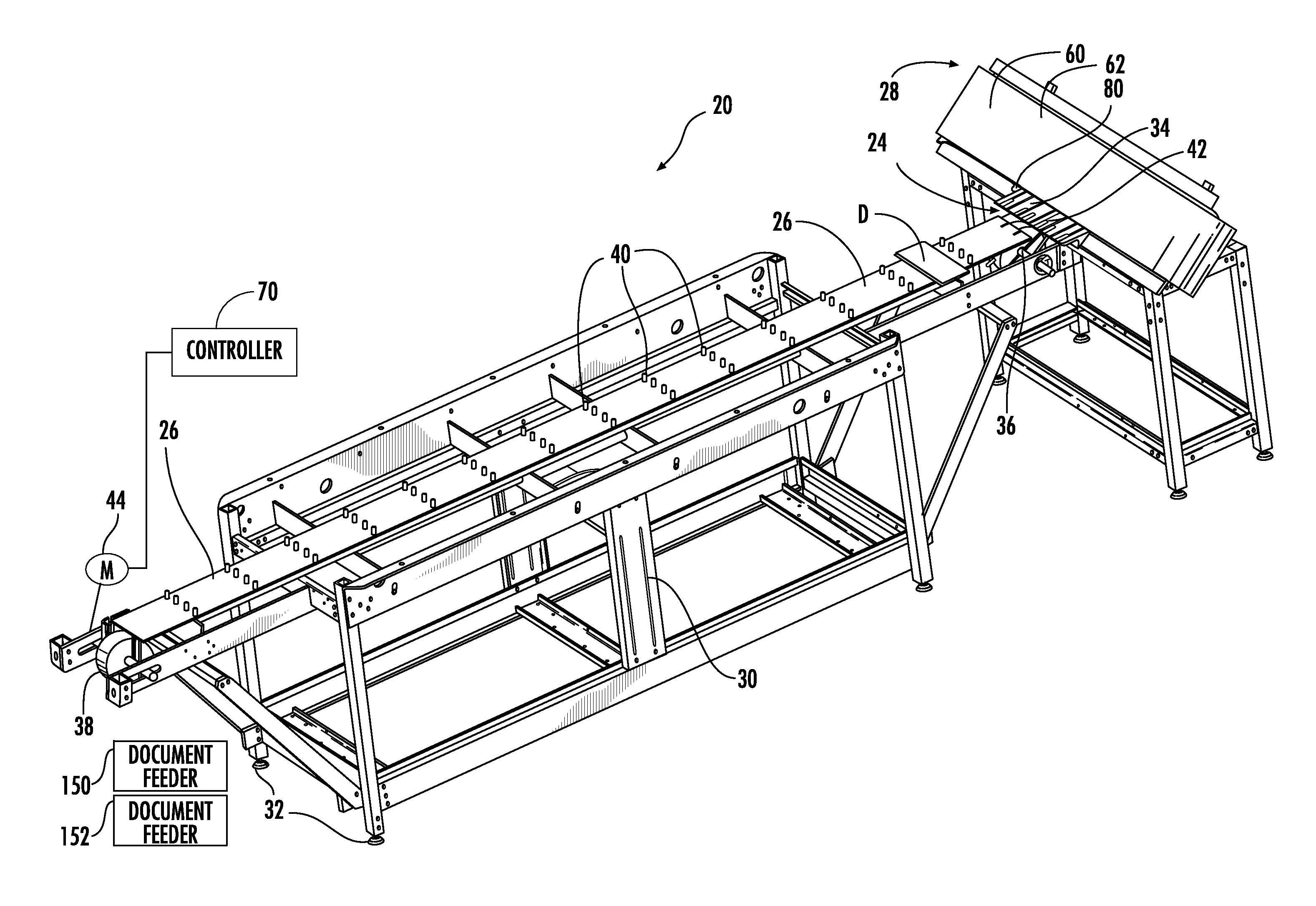

An apparatus inserts documents into envelopes and includes a document insert station and a document conveyor that conveys documents to be inserted within envelopes to the document insert station. Each envelope has an envelope opening and a flap to close the opening and defines a hinge line. An envelope feeder feeds envelopes upside down on the hinge line with the flap up into the document insert station and angled from the document conveyor. An insert plate is positioned at the document insert station that receives a document conveyed from the document conveyor and includes orifices though which air is blown onto the envelope fed into the document insert station to open the envelope and receive a document conveyed from the document conveyor.
First Claim
