ALLOY CRYSTALLISATION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 8, 2016
app pub date -
Feb 12, 2015
filing date -
Feb 12, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

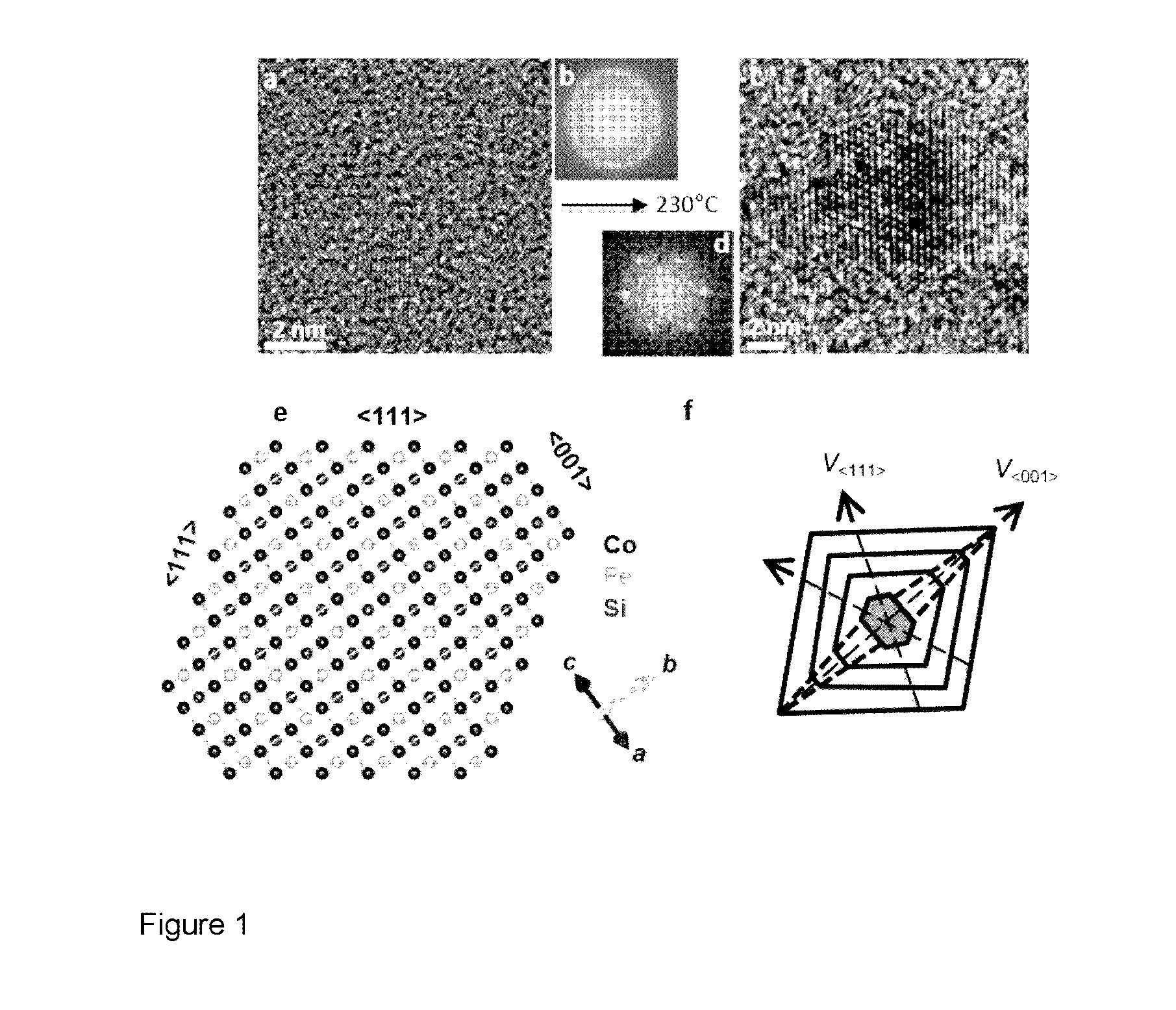

A crystallisation method for an alloy film such as a Co-based ternary Heusler-alloy is described having the steps of: providing a substrate; depositing a layer of the alloy film to be crystallised onto the substrate using a physical vapour deposition process to a depth of up to a few hundred nm; optionally depositing a capping layer thereon; heating the deposited film at an annealing temperature below 300° C. and for example of around 200° C. to 300° C. to effect crystallisation of the alloy film layer. The method is in particular applied to the in the deposition and annealing in situ of an alloy film in or on a semiconductor device for example as a functional film in or on such a device and in particular to the deposition and annealing in situ of a highly-spin-polarised ferromagnetic thin film on a semiconductor or spintronic device.
