STRESS CONTROL FOR HETEROEPITAXY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 3, 2015
filing date -
Jun 3, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

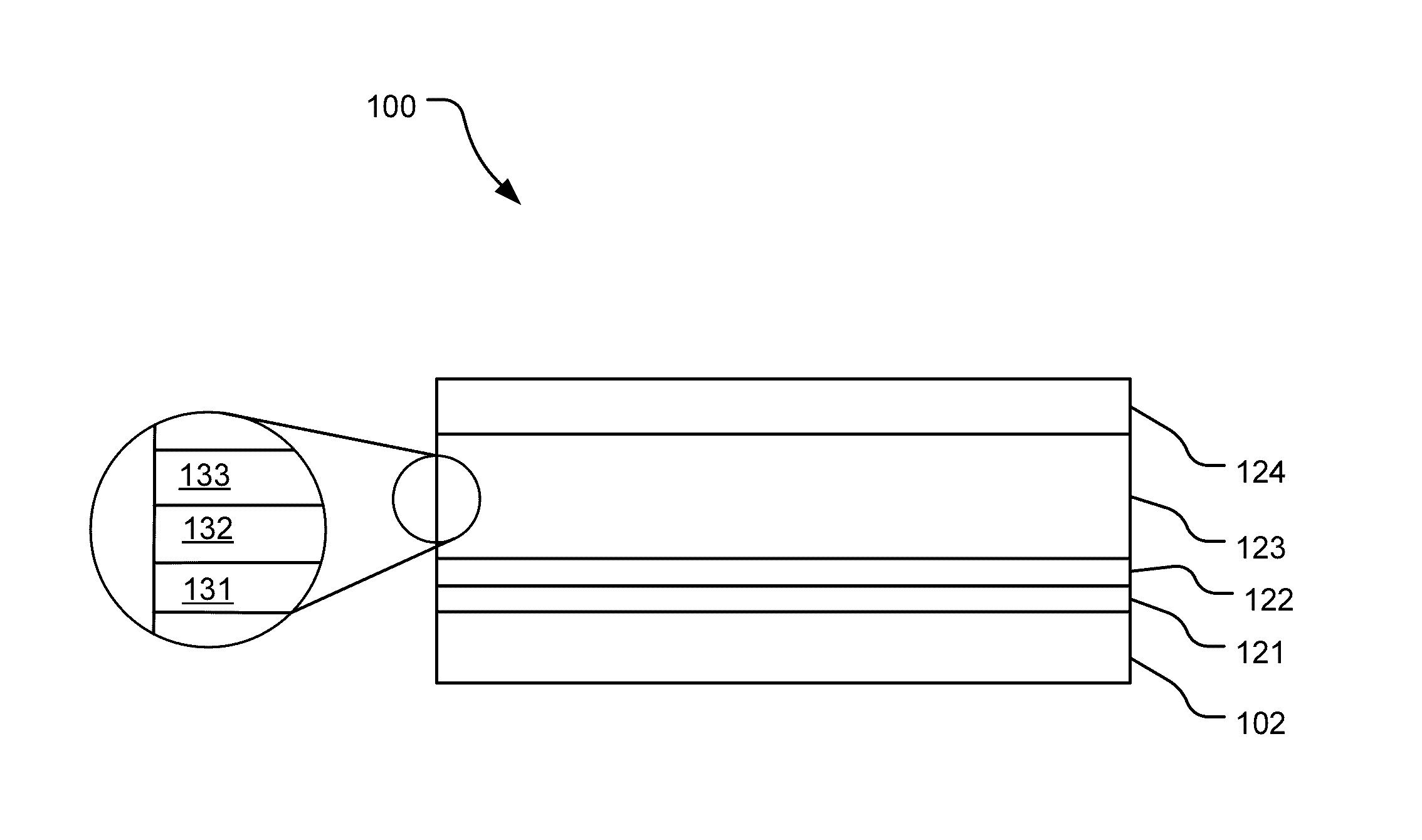

Stress control using superlattice structures for epitaxy on base wafer substrates, including AlN/GaN superlattices for epitaxy of GaN on silicon {111} substrates. Crack-free GaN cap layers can be grown over superlattice structures containing AlN/GaN superlattice layers. Compressive and tensile stress can be precisely adjusted by changing the thickness of the superlattice layers and the number of superlattice layers. For a constant period thickness, growth conditions, such as growth rate of GaN, V/III ratio during AlN growth, and growth temperature, can be adjusted.
