MEMS RESONATOR WITH HIGH QUALITY FACTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 1, 2016
app pub date -
May 27, 2015
filing date -
May 27, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

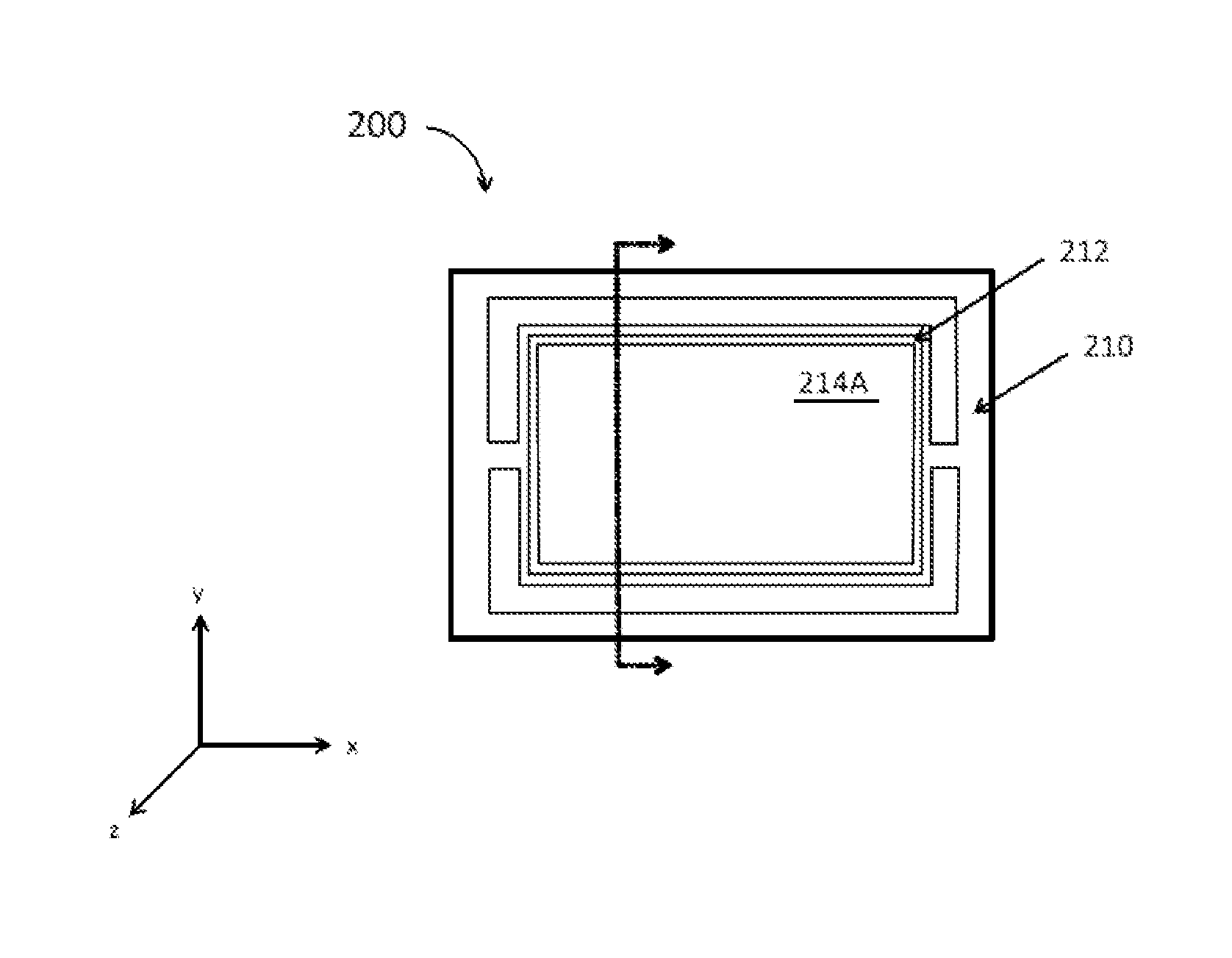

A symmetrical MEMS resonator is disclosed with a high quality factor. The MEMS resonator includes a silicon layer with a top surface and bottom surface opposite the top surface. A pair of first metal layers is provided above the top surface of the silicon layer and a corresponding pair of second metal layers is symmetrically provided below the second surface of the silicon layer relative to the pair of first metal layers. Furthermore, a first piezoelectric layer is disposed between the pair of first metal layers and a second piezoelectric layer is disposed between the pair of second metal layers.
