LIGHT SOURCE MODULES AND THE BACKLIGHT MODULES WITH THE LIGHT SOURCE MODULE

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20160349436A1
SERIAL NO

14423106

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

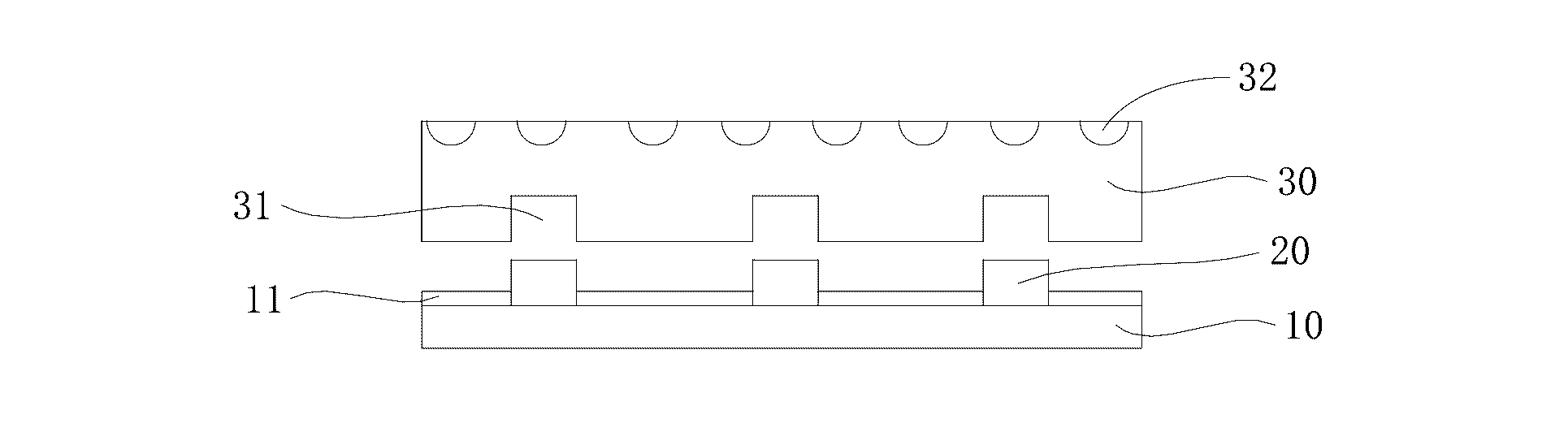

A light source module is disclosed. The light source includes: a power supply board; a plurality of LED chips arranged on a surface of the power supply board in a matrix; and a light guiding housing arranged above the power supply board, a bottom surface of the light guiding housing is bonded with a surface of the power supply board so as to encapsulate the LED chips between the light guiding housing and the power supply board. In addition, a backlight module including the light source module is also disclosed. The LED chips are mounted on the surface of the power supply board, and a light reflection layer is coated on the surface. The power supply board is integrated with the light guiding housing above the LED chip to form an integral light module so as to enhance the ratio of the visible area of the liquid crystal device.
