Cold planer yield measurement system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Nov 24, 2016
app pub date -
May 22, 2015
filing date -
May 22, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

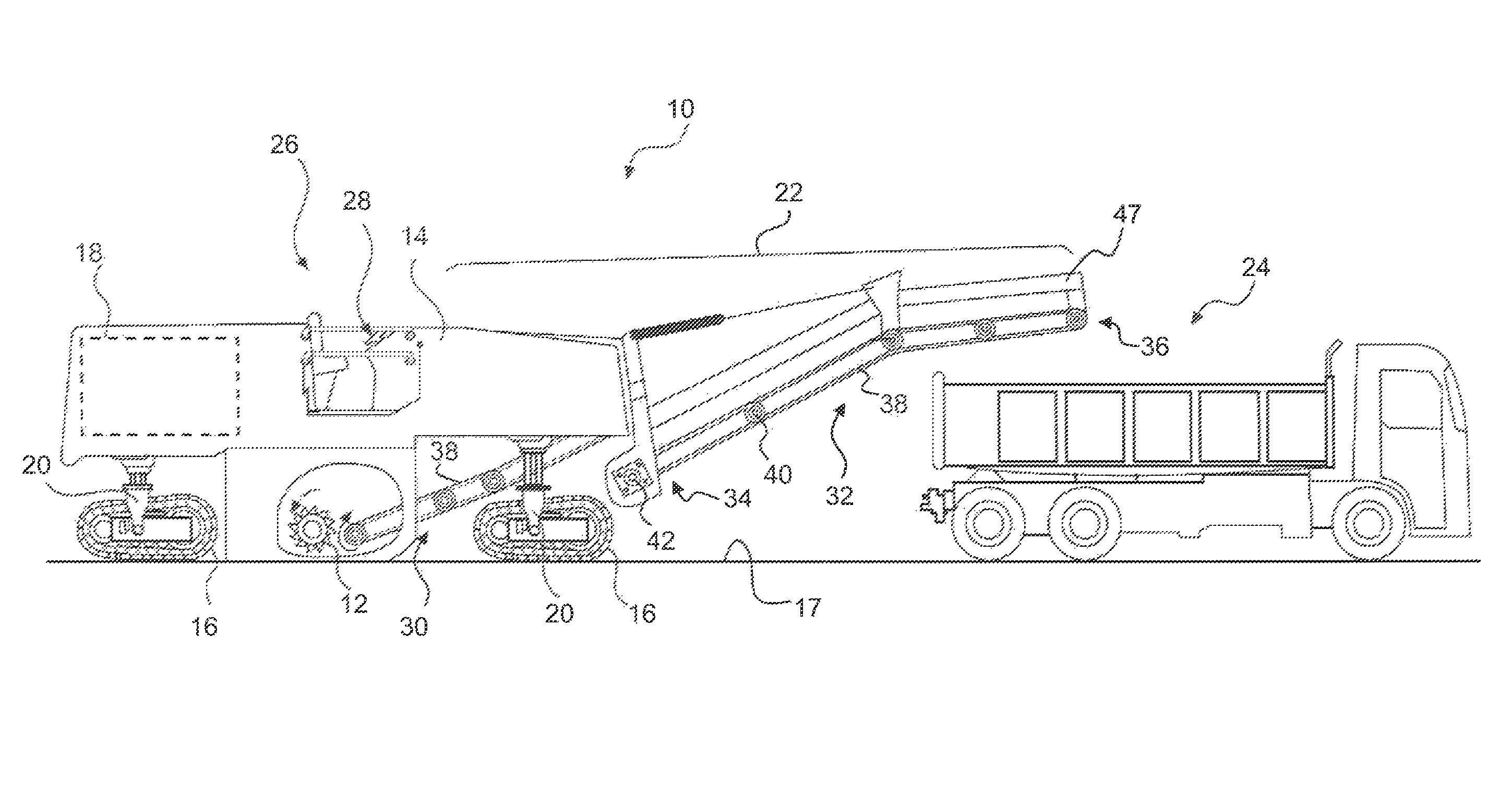

A yield measurement system for a cold planer having a conveyor is disclosed. The yield measurement system may include a hydraulic motor configured to propel the conveyor, a first sensor configured to generate a first signal indicative of a force acting on the conveyor by material being moved by the conveyor, and a second sensor configured to generate a second signal indicative of a pressure differential across the hydraulic motor. The yield measurement system may also include a controller in communication with the first and second sensors. The controller may be configured to determine when the conveyor is not transferring material based on the second signal, and automatically recalibrate the yield measurement system based on the first signal when the conveyor is not transferring material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01G Class
- 267 Applications Filed
- 208 Patents Issued To-Date
- 77.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01G Class
- 25.44 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
