METHOD FOR ANTI-FIRE INSULATION AND THERMAL INSULATION OF WELDED JOINTS OF PRE-INSULATED PIPES DURING ABOVE-GROUND PIPELINE LAYING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 3, 2016
filing date -
Mar 28, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

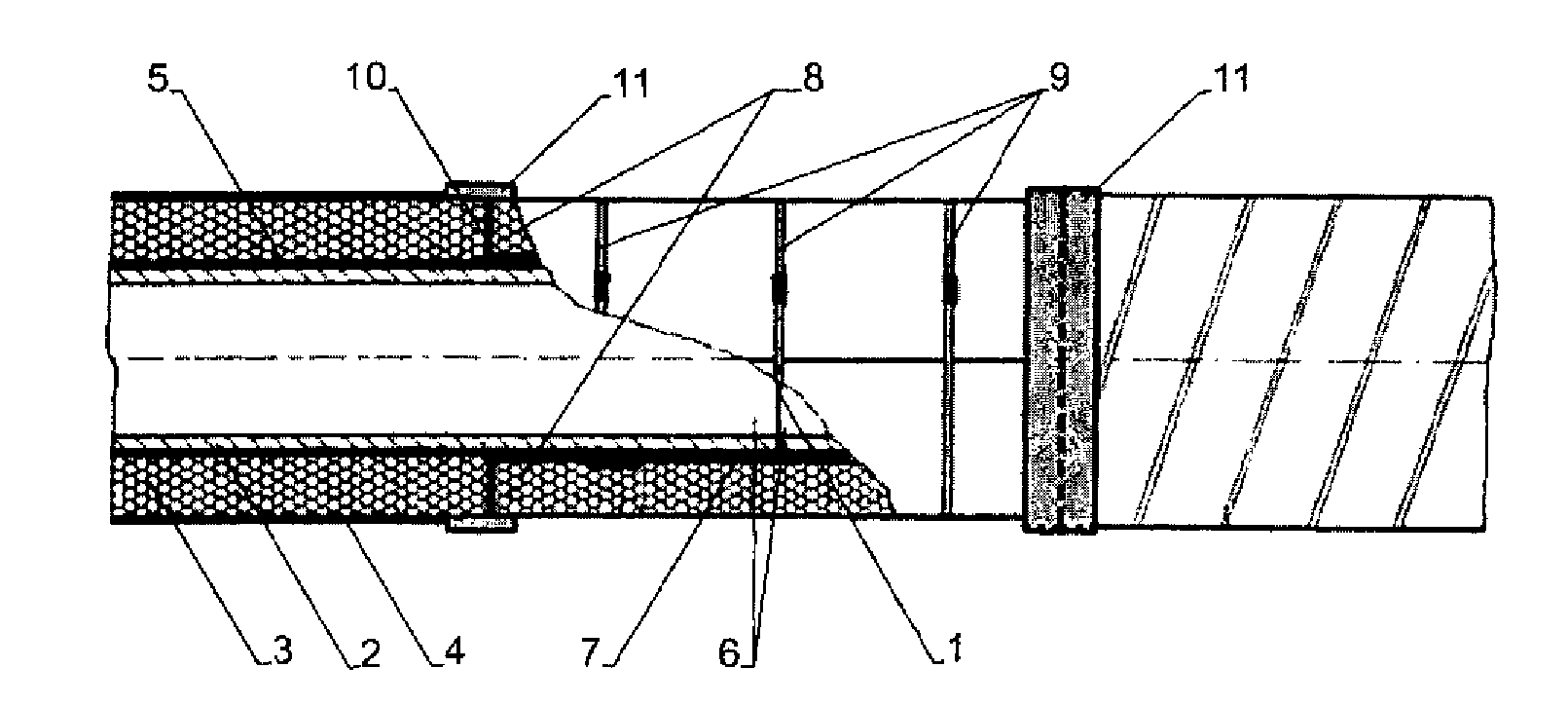

The invention relates to fire and heat insulation of pipes, and specifically to the installation of fire and heat insulation on welded joint of pipes that are used for transporting oil and oil products. The method for installing heat insulation of welded joints of pipes for above surface pipelining includes providing anticorrosive protection of the welded joint of pipes using a heat-shrinkable polymeric tape, installation of glass foam pipe coverings on the joint, fastening the pipe coverings using tie bands with locks, sticking hot-melt adhesive tape on the edges of the protective envelope of the pipe overlapping the glass foam pipe coverings, and mounting a protective galvanized metal housing symmetrically to a center of the welded joint.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CA | C | CA2942807 | Mar 28, 2014 |
| WO | A1 | WO2015147677 | Mar 28, 2014 |
International Classification(s)
- 2016 Application Filing Year
- F16L Class
- 1971 Applications Filed
- 1425 Patents Issued To-Date
- 72.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16L Class
- 18.70 % this patent is cited more than
- 9 Age
