THIN-FILM TRANSISTOR WITH CARRIER INJECTION STRUCTURE

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20160336460A1
SERIAL NO

15111479

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

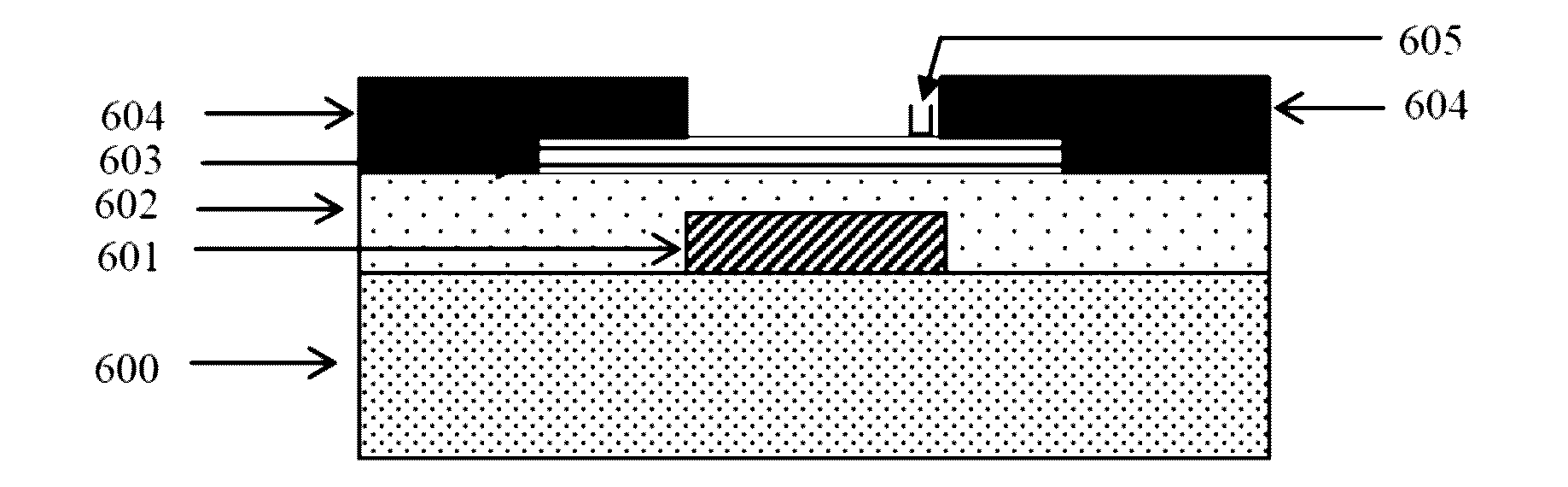

A thin-film transistor includes a substrate, a semiconductor channel region, a gate insulating layer, a source region, a drain region, a source electrode, a drain electrode and a gate electrode. The thin-film transistor also includes a carrier injection terminal, and the carrier injection terminal can provide the semiconductor channel region with a carrier of which the polarity is opposite to that of a channel carrier when the thin-film transistor is conducting. The thin-film transistor can significantly reduce device degradation and threshold voltage shift caused by a dynamic hot carrier effect, thereby improving the reliability of a thin-film transistor device and a circuit and simplifying the complexity of the design of a threshold voltage compensation circuit. In addition, the thin-film transistor has low processing difficulty and has no influence on the normal operation of a device.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SOOCHOW UNIVERSITY215000 NO 1 SHIZI STREET GUSU DISTRICT SUZHOU CITY JIANGSU PROVINCE SUZHOU CITY JIANGSU PROVINCE 215000

International Classification(s)

loading....
  • 2014 Application Filing Year
  • H01L Class
  • 23828 Applications Filed
  • 21803 Patents Issued To-Date
  • 91.51 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2014201520162017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
WANG, Huaisheng Suzhou, CN 8 1
WANG, Mingxiang Suzhou, CN 13 19
ZHANG, Dongli Suzhou, CN 16 30

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 1 Citation Count
  • H01L Class
  • 13.47 % this patent is cited more than
  • 9 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges1792827316886303131891006776342711301 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +050010001500200025003000350040004500500055006000650070007500800085009000
