MANUFACTURE OF METAL CORE BY USING RAPID PROTOTYPING METHOD AND METHOD FOR MANUFACTURING PRECISION PARTS THROUGH HOT ISOSTATIC PRESSING USING SAME, AND TURBINE BLISK FOR DRIVING LIQUID ROCKET TURBO PUMP USING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 17, 2016
app pub date -
Nov 25, 2014
filing date -
Nov 25, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

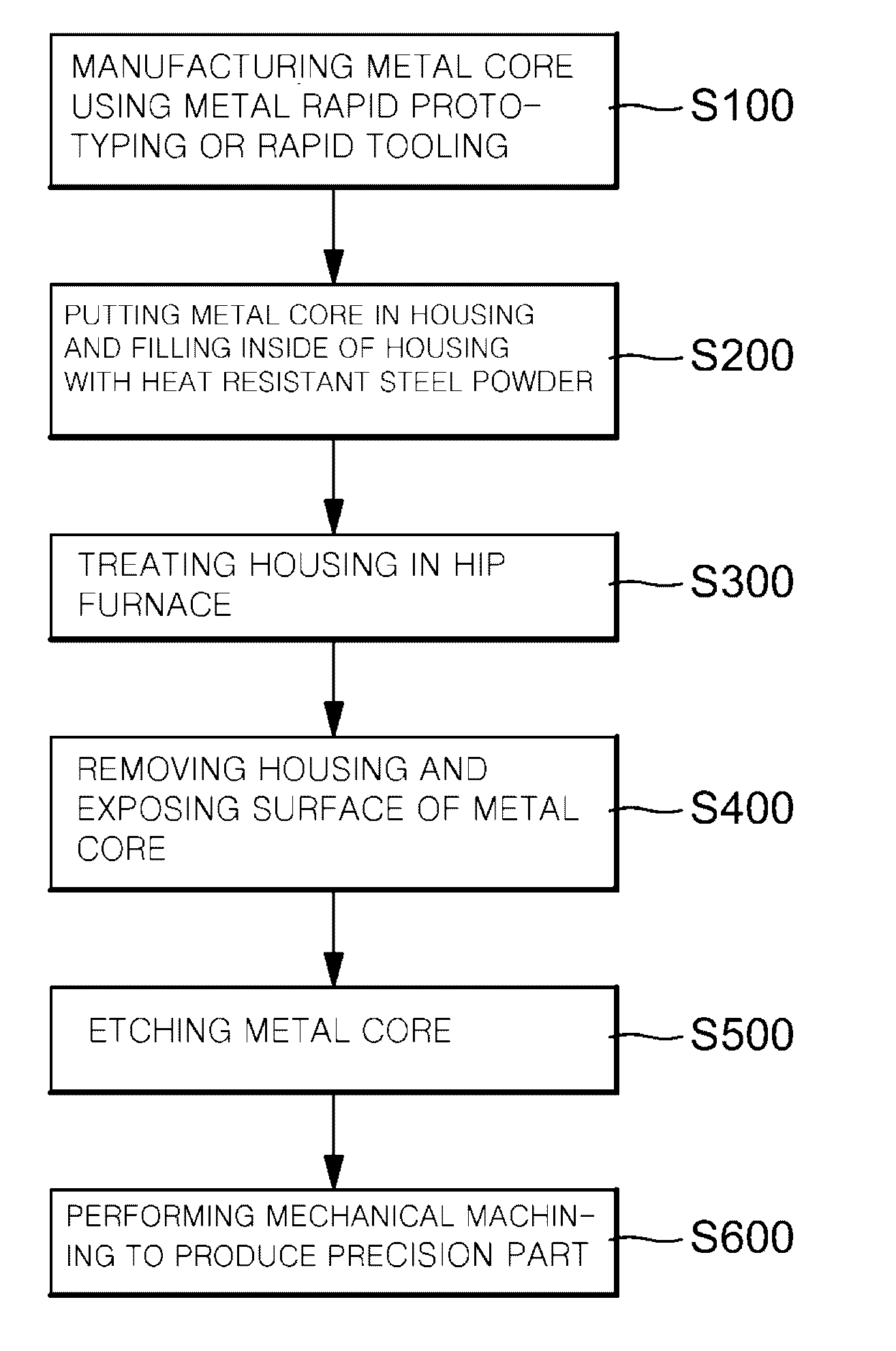

Disclosed is a method for manufacturing precision parts through hot isostatic pressing using a metal core manufactured through metal rapid prototyping to manufacture a turbine blisk for driving a turbo pump of a liquid rocket. The method includes: manufacturing a metal core that has an internal vacant space having the same shape as the precision parts, using rapid prototyping; putting the metal core in a housing; filling an inside of the housing with heat resistant steel powder and creating a vacuum state in the housing; treating the housing under high temperature and pressure to produce heat resistant steel; removing the housing and a portion of the heat resistant steel to expose a portion of the metal core; performing etching to remove the exposed metal core; and removing only a portion of the heat resistant steel through mechanical machining, wherein the remaining portion corresponds to the shape of the precision part.
First Claim
Other Claims data not available
